JO-CES 4X60º (JCE4.0) | Joint- High Helix Center Drills-Type A 60° | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 494.39
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
JCE4.0
QTY:
1

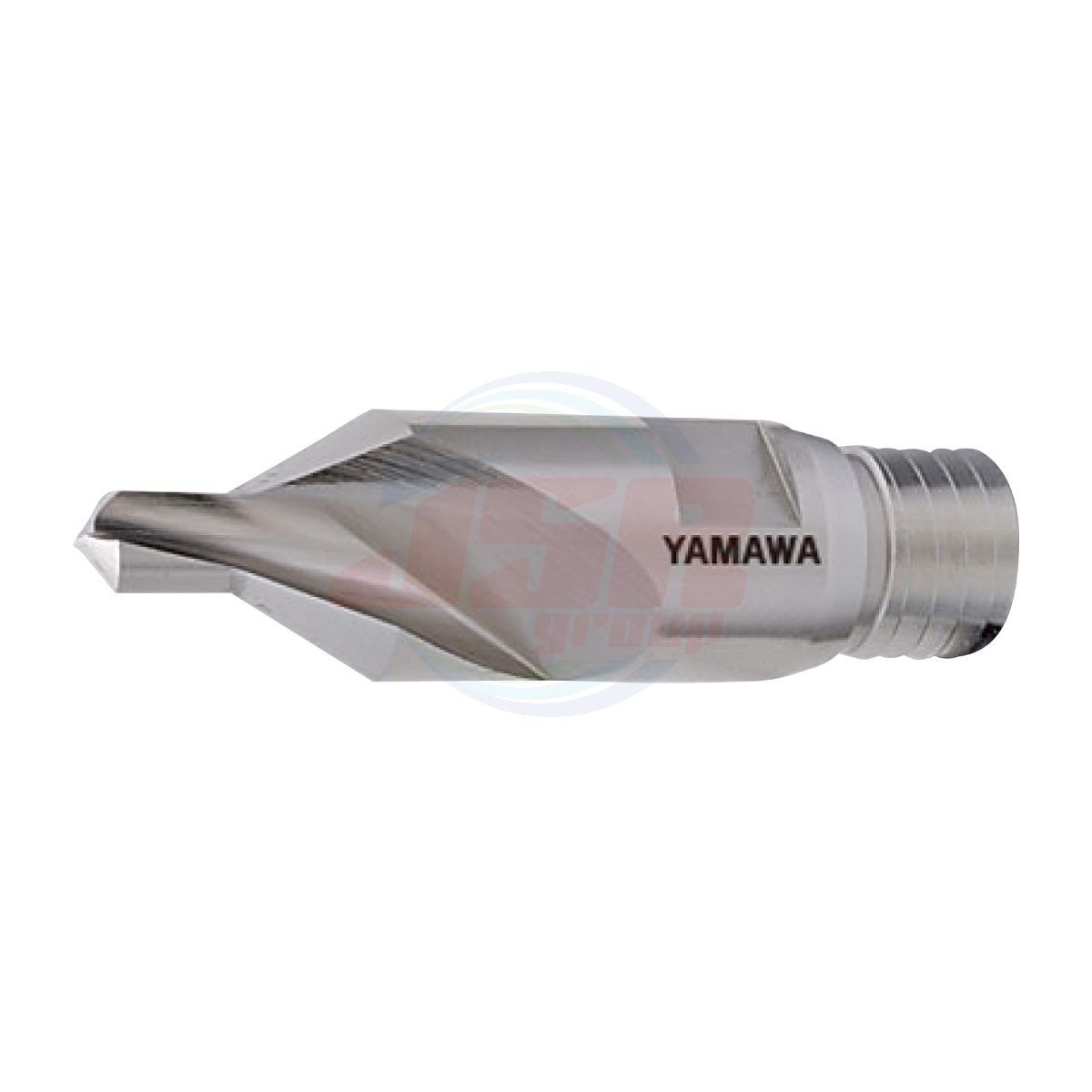

● The JO-CDS is a low helix type A center hole drill joint tool suitable for comparatively hard materials.
Specification
Cutting Speed depending on Materials
Segment：5C
|
Size Dc × θ |
Code |
Dc (mm) |
Ds (mm) |
L (mm) |
ℓ (mm) |
ℓ2 (mm) |
H (mm) |
Adaptable holder Shank dia. |
Dw (mm) |
TYPE |
|
4 ×60° |
JCE4.0 |
4 |
10 |
37.5 |
4.5 |
27.5 |
8 |
14 |
8.5 |
1 |
|
5 ×60° |
JCE5.0 |
5 |
12 |
43.5 |
5.5 |
32.5 |
10 |
16 |
10 |
1 |
|
6 ×60° |
JCE6.0 |
6 |
16 |
48.5 |
6.5 |
34.5 |
13 |
20 |
13.5 |
1 |
・Machining conditions are calculated based on the workpiece end-face hole size Dw.
・For details on machining conditions, see TECHNICAL INFORMATION, “27. Table of recommend centering condition.”
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | 4x60º (JCE4.0) |
| Model | JO-CES |
| Size | 4 ×60° |
| Overall length (L) | 37.5 |
| Thread length (ℓ) | 4.5 |
| Shank dia. (Ds) | 10 |
| DC (mm) | 4 |
