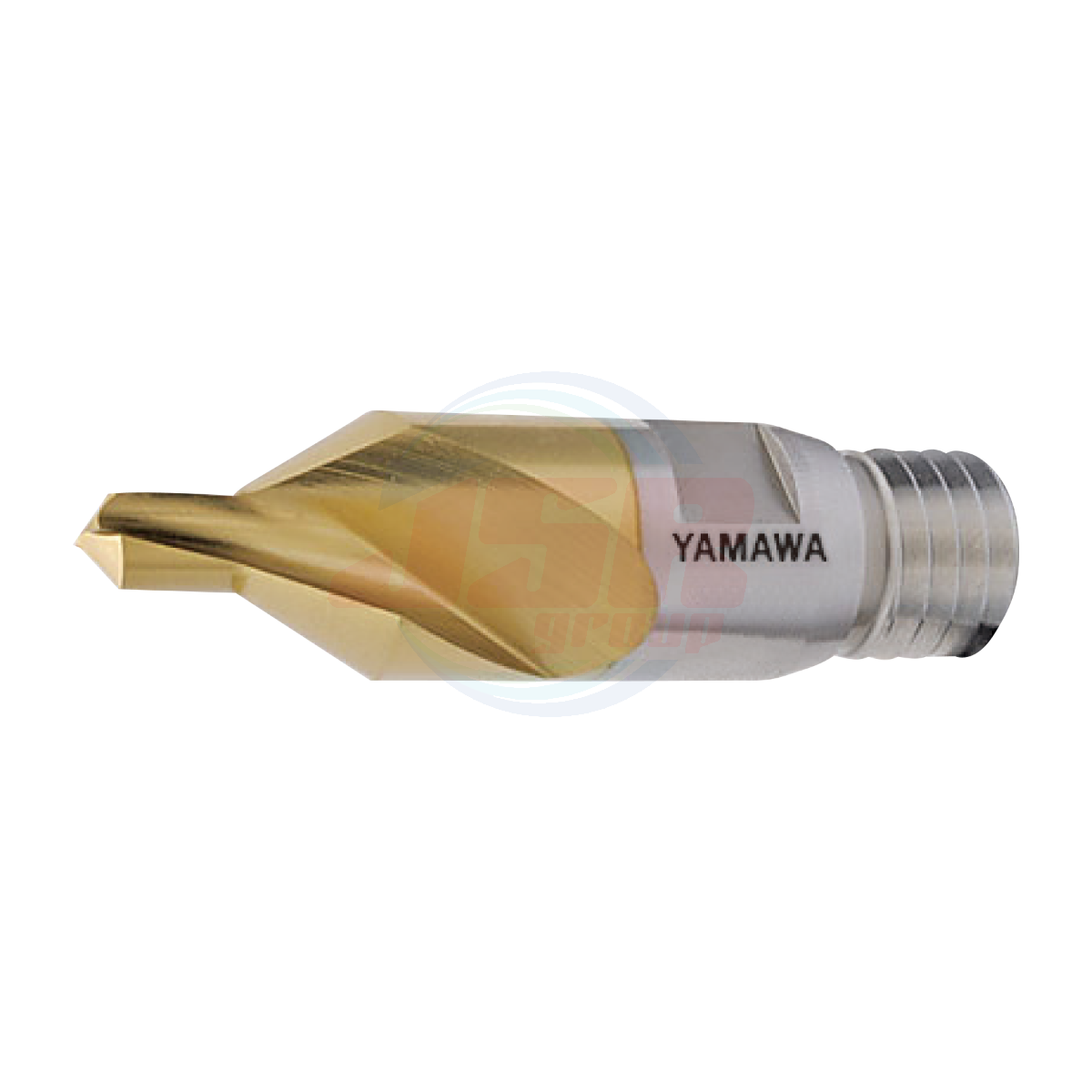

JO-CES V 5X60º (JVCE5.0)| Joint- High Helix Center Drills-Type A 60°, Coated | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 997.20
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
JVCE5.0
QTY:
1
● Optimum coating suitable for the cutting condition.
Specification
Cutting Speed depending on Materials
Segment：5C
|
Size Dc × θ |
Code |
Dc (mm) |
Ds (mm) |
L (mm) |
ℓ (mm) |
ℓ2 (mm) |
H (mm) |
Adaptable holder Shank dia. |
Dw (mm) |
TYPE |
|
4×60° |
JVCE4.0 |
4 |
10 |
37.5 |
4.5 |
27.5 |
8 |
14 |
8.5 |
1 |
|
5×60° |
JVCE5.0 |
5 |
12 |
43.5 |
5.5 |
32.5 |
10 |
16 |
10 |
1 |
|
6×60° |
JVCE6.0 |
6 |
16 |
48.5 |
6.5 |
34.5 |
13 |
20 |
13.5 |
1 |
・Machining conditions are calculated based on the workpiece end-face hole size Dw.
・For details on machining conditions, see TECHNICAL INFORMATION,
“27. Table of recommend centering condition.”
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | 5x60º (JVCE5.0) |
| Model | JO-CES V |
| Size | 5 ×60° |
| Overall length (L) | 43.5 |
| Thread length (ℓ) | 5.5 |
| Shank dia. (Ds) | 12 |
| DC (mm) | 5 |
