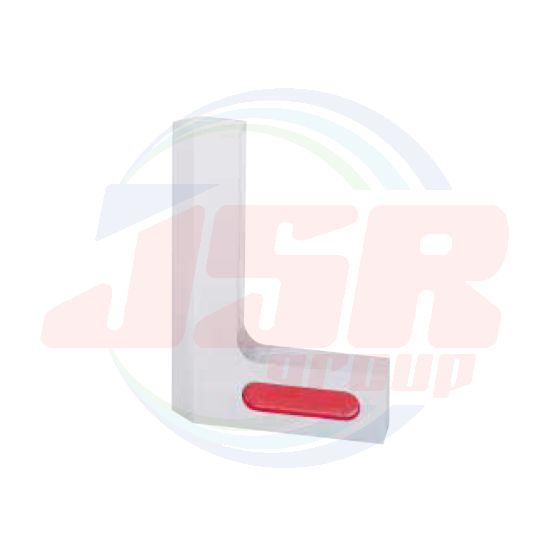

KNIFE-EDGE STANDARD SQUARE (TYPE I) - OS-151 | OHNISHI (O.S.S)
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
OSS-OS151
Features
Squareness : ± (2 + L 100 ) µm “L” is the nominal size
• Application
- Precision measurement of the squareness of products and parts
• Features
- Hardened
Only one side of the blade is sharp.
• Materials
- Carbon tool steel
- Quenching hardness HV450 (HS60) or more

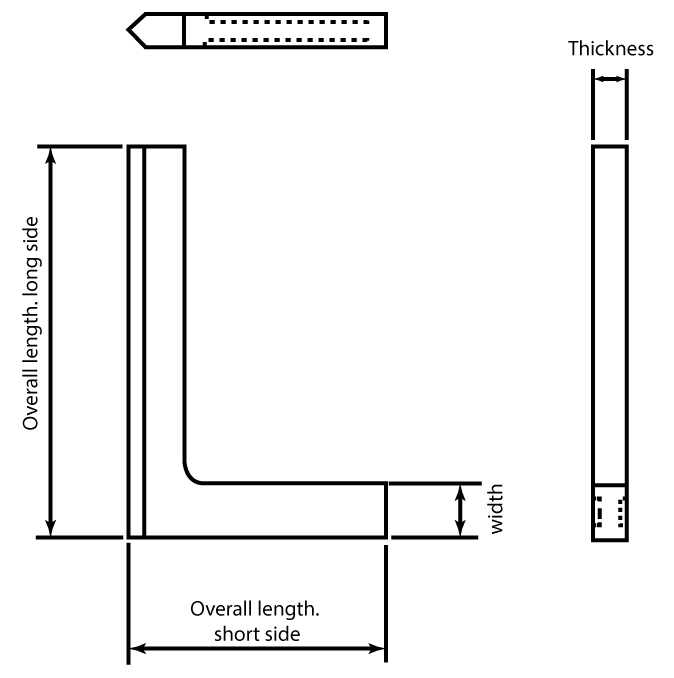

Dimensions OS-151
| Order No. | Nominal Size (mm) | Size (mm) | Weight (kg) | |||
| Overall length, long side | Overall length, short side | Width | Thickness | |||
| 151-50 | 50 | 50 | 40 | 15 | 10 | 0.14 |
| 151-75 | 75 | 75 | 50 | 20 | 12 | 0.23 |
| 151-100 | 100 | 100 | 70 | 22 | 12 | 0.36 |
| 151-150 | 150 | 150 | 100 | 24 | 15 | 0.7 |
| 151-200 | 200 | 200 | 130 | 28 | 18 | 1.2 |
| 151-300 | 300 | 300 | 200 | 35 | 25 | 2.8 |
| 151-400 | 400 | 400 | 250 | 40 | 28 | 4 |
| 151-500 | 500 | 500 | 300 | 50 | 30 | 6 |
| แบรนด์สินค้า | OHNISHI (O.S.S.) |
|---|
