KNIFE-EDGE STANDARD SQUARE (TYPE II) - OS-152 | OHNISHI (O.S.S)
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
OSS-OS152
Features
Squareness : ± (2 + L 100 ) µm “L” is the nominal size
• Application
- Precision measurement of the squareness of products and parts
• Features
- Hardened
Both side of the vlade sharp.
• Materials
- Carbon tool steel
Quenching hardness HV450 (HS60) or more

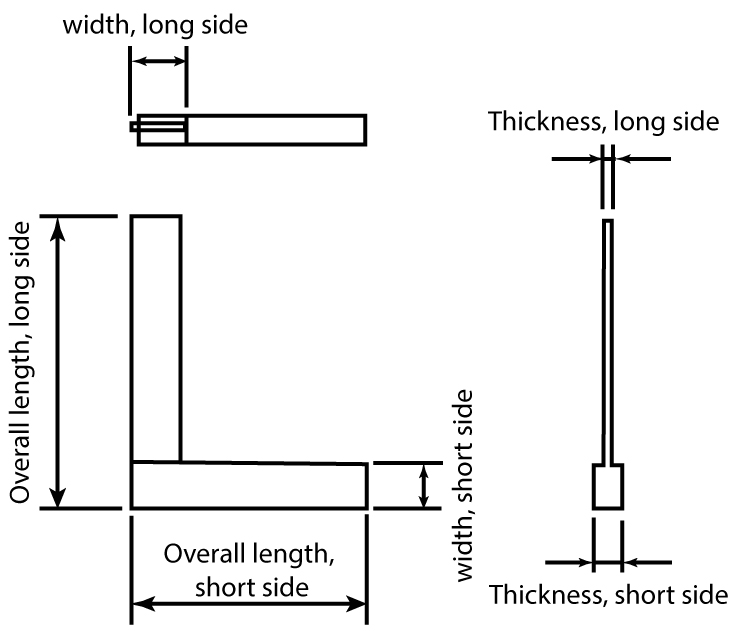

Dimensions OS-152
| Order No. | Nominal Size (mm) | Size (mm) | Weight (kg) | |||||
| Overall length, long side | Width, long side | Thinkness long side | Overall length, short side | Width, short side | Thinkness short side | |||
| 152-50 | 50 | 50 | 15 | 3 | 45 | 16 | 12 | 0.08 |
| 152-75 | 75 | 75 | 18 | 3 | 60 | 18 | 13 | 0.14 |
| 152-100 | 100 | 100 | 25 | 3 | 70 | 22 | 16 | 0.24 |
| 152-150 | 150 | 150 | 30 | 4 | 110 | 28 | 18 | 0.55 |
| 152-200 | 200 | 200 | 35 | 4 | 150 | 30 | 20 | 0.89 |
| 152-300 | 300 | 300 | 40 | 5 | 200 | 35 | 22 | 1.6 |
| แบรนด์สินค้า | OHNISHI (O.S.S.) |
|---|
