KNIFE-EDGE STANDARD SQUARE (TYPE III) - OS-153 | OHNISHI (O.S.S)
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
OSS-OS153
Features
Squareness : ± ( 2 + L 100 ) µm “L” is the nominal size
• Application
- Precision measurement of the squareness of products and parts
• Features
- Hardened
Both side of the vlade sharp.
• Materials
- Carbon tool steel
Quenching hardness HV450 (HS60) or more

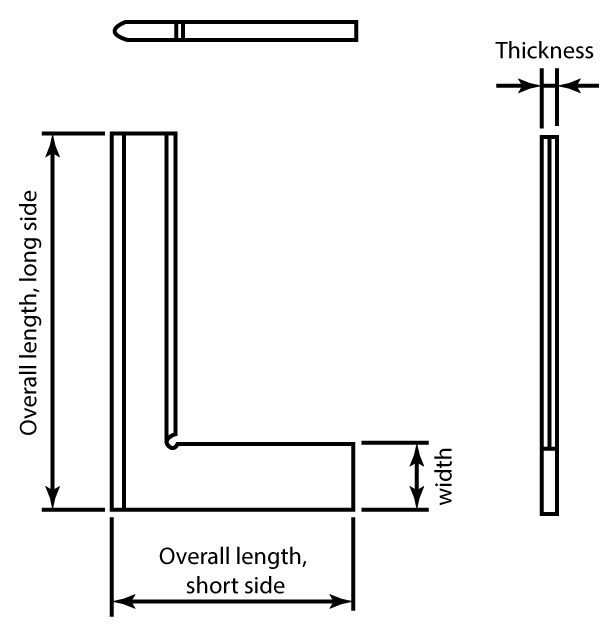

Dimensions OS-153
| Order No. | Nominal Size (mm) | Size (mm) | Weight (kg) | |||
| Overall length, long side | Overall length, short side | Width | Thinkness | |||
| 153-50 | *50 | 50 | 40 | 15 | 4 | 0.02 |
| 153-75 | *75 | 75 | 50 | 20 | 5 | 0.08 |
| 153-100 | 100 | 100 | 70 | 25 | 6 | 0.14 |
| 153-150 | 150 | 150 | 100 | 30 | 8 | 0.35 |
| 153-200 | 200 | 200 | 130 | 35 | 10 | 0.7 |
| 153-250 | *250 | 250 | 160 | 35 | 7 | 1.2 |
| 153-300 | 300 | 300 | 200 | 40 | 15 | 1.7 |
| 153-400 | *400 | 400 | 250 | 40 | 18 | 4.2 |
| 153-500 | *500 | 500 | 250 | 50 | 20 | 5.1 |
* Nonstandard JIS size
| แบรนด์สินค้า | OHNISHI (O.S.S.) |
|---|
