L285P3 | Internal measurement with 3-point contact - Application range from 7 to 105 mm | KROEPLIN
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
L285P3
QTY:
10
Internal measurement with 3-point contact
Application range from 7 to 105 mm
| Order No. | Measuring span Mes | Measuring range Meb | Range of indication Azb | Numerical interval Zw Scale interval Skw |
Permissible errors G | Repeatability limit r | Measuring force Fmin | Measuring force Fmax | Weight | Protection class | Measuring contact movable Hb |
Measuring contact fixed Hf |
Type of measuring contact |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | (N) | (g) | (mm) | (mm) | (mm) | ||
| L107P3 | 7 | 7-14 | 6.8-14.5 | 0.002 | 0.01 | 0.004 | 1.0 | 1.4 | 250 | IP67 | 2.5 | - | Ball Ø 0.6 |
| L210P3 | 10 | 10-20 | 9.8-20.5 | 0.005 | 0.02 | 0.01 | 1.1 | 1.6 | 270 | IP67 | 4.6 | - | Ball Ø 1 |
| L215P3 | 15 | 15-30 | 14.5-30.5 | 0.005 | 0.02 | 0.01 | 1.1 | 1.6 | 295 | IP67 | 5.8 | - | Ball Ø 1 |
| L225P3 | 20 | 25-45 | 24.5-45.5 | 0.005 | 0.02 | 0.01 | 1.1 | 1.6 | 275 | IP67 | 7.3 | - | Ball Ø 1 |
| L240P3 | 20 | 40-60 | 39.5-60.5 | 0.005 | 0.02 | 0.01 | 1.1 | 1.6 | 290 | IP67 | 12.2 | - | Ball Ø 1 |
| L255P3 | 20 | 55-75 | 54.5-75.5 | 0.005 | 0.02 | 0.01 | 1.1 | 1.6 | 290 | IP67 | 12.2 | - | Ball Ø 1 |
| L270P3 | 20 | 70-90 | 69.5-91 | 0.005 | 0.02 | 0.01 | 1.1 | 1.6 | 295 | IP67 | 12.2 | - | Ball Ø 1 |
| L285P3 | 20 | 85-105 | 84.5-106 | 0.005 | 0.02 | 0.01 | 1.1 | 1.6 | 305 | IP67 | 12.2 | - | Ball Ø 1 |
| แบรนด์สินค้า | KROEPLIN |
|---|---|
| Order No. | L285P3 |
| Application range | from 7 to 105 mm |
| Measuring span Mes | 20 mm |
| Measuring range Meb | 85-105 mm |
| Range of indication Azb | 84.5-106 mm |
| Numerical interval Zw / Scale interval Skw | 0.005 mm |
| Permissible errors G | 0.02 mm |
| Repeatability limit r | 0.01 mm |
| Measuring force F min | 1.1 N |
| Measuring force F max | 1.6 N |
| Protection class | IP67 |
| Measuring contact movable Hb | 4.6 mm |
| Measuring contact fixed Hf | - |
| Type of measuring contact | Ball Ø 1 |
| Measuring contacts | Measuring capacity | ||||
 |
 |
 |
 |
||

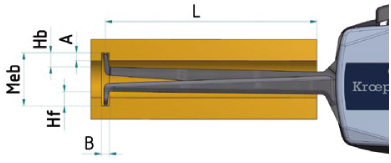

| Ball Ø 0.6 mm | Ball Ø 1.0 mm | Ball Ø 1.0 mm | Meb Measuring range A Groove depth B Groove width Hb Measuring contact movable Hf Measuring contact fixed L Measuring depth |
||
| Order No. | Groove depth A max. | Groove width B min. | Measuring depth L max. | Picture | Electronic E Mechanical M |
| (mm) | |||||
| L107P3 | 2.2 | 0.8 | 34 | [1] | E |
| L210P3 | 3.5 | 1.6 | 75 | [2] | E |
| L215P3 | 5.0 | 1.6 | 77 | [2] | E |
| L225P3 | 7.0 | 1.6 | 84 | [3] | E |
| L240P3 | 8.0 | 1.6 | 84 | [3] | E |
| L255P3 | 8.0 | 1.6 | 84 | [3] | E |
| L270P3 | 8.5 | 1.6 | 84 | [3] | E |
| L285P3 | 9.0 | 1.6 | 84 | [3] | E |
