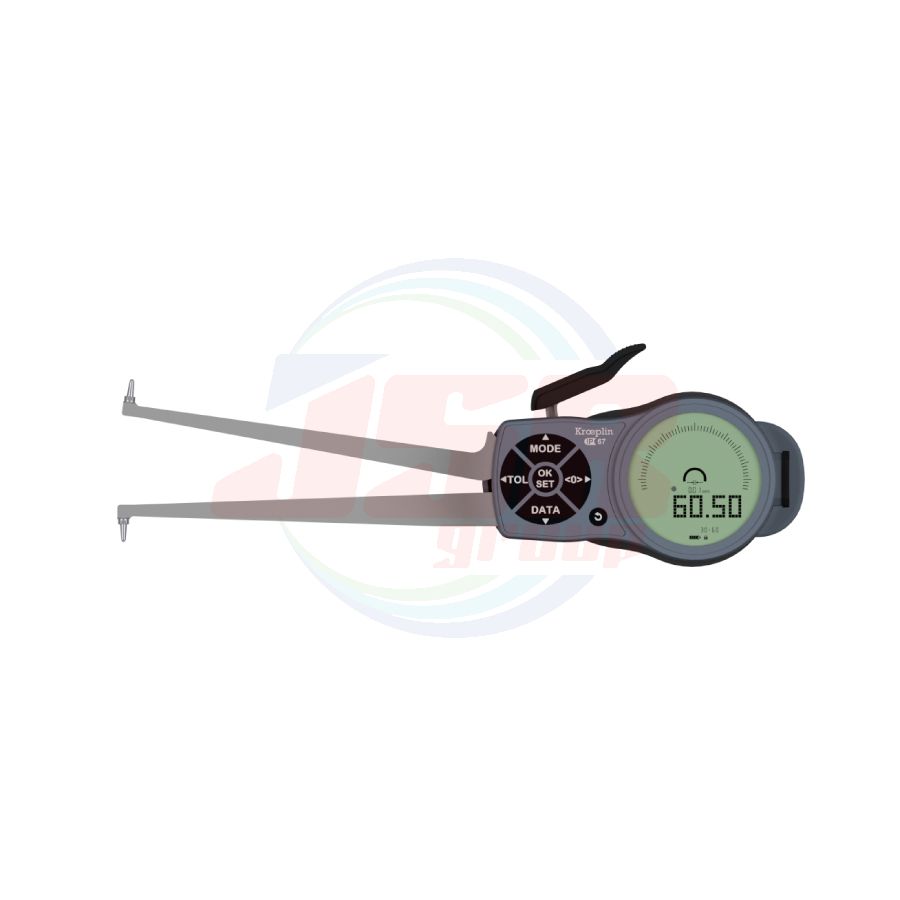

L330 | Internal measurement - Application range up to 60 mm | KROEPLIN

KROEPLIN
เป็นคนแรกที่รีวิวสินค้านี้
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
L330
QTY:
2
เพิ่มไปยังรายการโปรด เพิ่มไปเปรียบเทียบ

Internal measurement


Application range up to 60 mm

L330 | Internal measurement - Application range up to 60 mm | KROEPLIN
L330 | Internal measurement - Application range up to 60 mm | KROEPLIN
Order No. Measuring span Mes Measuring range Meb Range of indication Azb Numerical interval Zw
Scale interval Skw		 Permissible errors G Repeatability limit r Measuring force Fmin Measuring force Fmax Weight Protection class Measuring contact
movable Hb		 Measuring contact
fixed Hf		 Type of measuring
contact
  (mm) (mm) (mm) (mm) (mm) (mm) (N) (N) (g)   (mm) (mm) (mm)
G002 10 2.5-12.5 2.4-12.8 0.001 0.010 0.005 0.8 1.3 160 IP67 0.9 0.9 Chisel R 0.12
G005 15 5-20 4.7-20.5 0.001 0.010 0.005 0.8 1.3 160 IP67 2.2 2.2 Ball Ø 0.6
G010 15 10-25 9.7-25.5 0.001 0.010 0.005 0.8 1.3 160 IP67 4.4 4.4 Ball Ø 1
L102 10 2.5-12.5 2.4-12.8 0.005 0.015 0.005 0.8 1.2 245 IP67 0.9 0.9 Chisel R 0.12
H102 10 2.5-12.5 2.4-12.8 0.005 0.015 0.005 0.8 1.2 155 IP65 0.9 0.9 Chisel R 0.12
L105 10 5-15 4.7-15.3 0.005 0.015 0.005 0.8 1.2 250 IP67 2.5 2.5 Ball Ø 0.6
H105 10 5-15 4.7-15.3 0.005 0.015 0.005 0.8 1.2 160 IP65 2.5 2.5 Ball Ø 0.6
L210 20 10-30 9.5-30.5 0.01 0.03 0.01 1.1 1.6 270 IP67 5.3 5.3 Ball Ø 1
H210 20 10-30 9.5-30.5 0.01 0.03 0.01 1.1 1.6 180 IP65 5.3 5.3 Ball Ø 1
L220 20 20-40 19.5-40.5 0.01 0.03 0.01 1.1 1.6 270 IP67 7.3 7.3 Ball Ø 1
H220 20 20-40 19.5-40.5 0.01 0.03 0.01 1.1 1.6 180 IP65 7.3 7.3 Ball Ø 1
L230 20 30-50 29.5-50.5 0.01 0.03 0.01 1.1 41.6 275 IP67 7.3 7.3 Ball Ø 1
H230 20 30-50 29.5-50.5 0.01 0.03 0.01 1.1 1.6 185 IP65 7.3 7.3 Ball Ø 1
L240 20 40-60 39.5-60.5 0.01 0.03 0.01 1.1 1.6 285 IP67 8.5 8.5 Ball Ø 1
H240 20 40-60 39.5-60.5 0.01 0.03 0.01 1.1 1.6 195 IP65 8.5 8.5 Ball Ø 1
L313 30 13-43 12.8-43.5 0.01 0.04 0.02 1.2 1.7 360 IP67 5.9 5.9 Ball Ø 1.3
L330 30 30-60 29.5-60.5 0.01 0.04 0.02 1.2 1.7 370 IP67 6.5 6.5 Ball Ø 1.5





More Information
ข้อมูลเพิ่มเติม
แบรนด์สินค้า KROEPLIN
Order No. L330
Application range up to 60 mm
Measuring span Mes 30mm
Measuring range Meb 30-60 mm
Range of indication Azb 29.5-60.5 mm
Numerical interval Zw / Scale interval Skw 0.01 mm
Permissible errors G 0.04 mm
Repeatability limit r 0.02 mm
Measuring force F min 1.2 N
Measuring force F max 1.7 N
Protection class IP67
Measuring contact movable Hb 6.5 mm
Measuring contact fixed Hf 6.5 mm
Type of measuring contact Ball Ø 1.5
Dimension
Measuring contacts   Measuring capacity

Chisel R 0.12 mm Ball Ø 0.6 mm
Ball Ø 1.0 mm
Ball Ø 1.3 mm		 Ball Ø 1.0 mm Ball Ø 1.0 mm
Ball Ø 1.5 mm
Ball Ø 2.0 mm		   Meb Measuring range
A Groove depth
B Groove width
Hb Measuring contact movable
Hf Measuring contact fixed
L Measuring depth



Order No. Groove depth A max. Groove width B min. Measuring depth L max. Picture Electronic E
Mechanical M
  (mm) (mm) (mm)
G002 0.7 0.6 12 [1] E
G005 2.2 0.8 44 [2] E
G010 4 1.5 46 [2] E
L102 0.7 0.5 12 [1] E
H102 0.7 0.5 12 [1] M
L105 2.3 0.8 35 [2] E
H105 2.3 0.8 35 [2] M
L210 5.2 1.5 85 [2] E
H210 5.2 1.5 85 [2] M
L220 7.0 1.5 85 [4] E
H220 7.0 1.5 85 [4] M
L230 7.0 1.5 85 [4] E
H230 7.0 1.5 85 [4] M
L240 8.3 1.5 85 [5] E
H240 8.3 1.5 85 [5] M
L313 5.7 1.6 127 [2] E
L330 6.2 1.8 132 [5] E
