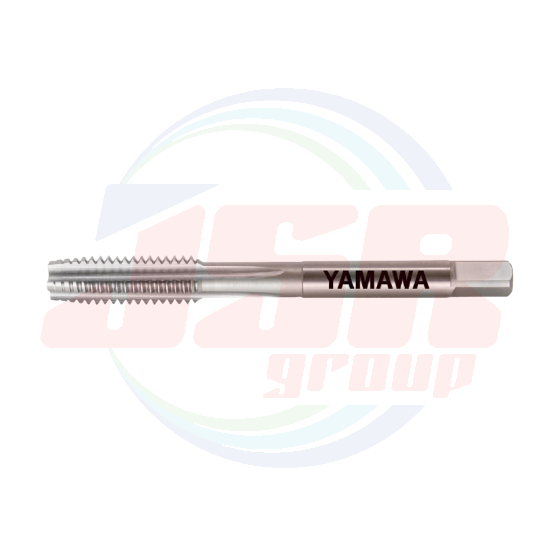

LA-HT | Hand Taps for Die Cast Materials | YAMAWA
สินค้าหมด
SKU
LA-HT
Product Features
- Aluminum thin alloy like（ADC）, Zinc alloy die casting（ZDC）. It is a slightly oversized tap designed to compensate
for the materials tendency to contract after tapping.
Tapping Data
Tapping Conditions [M6×1 1.5P]
|
Workpiece Material |
ADC12 |
 |
|
Bored Hole Size |
φ5 |
|
|
Tapping Length |
14.3mm |
|
|
Tapping Speed |
18m/min |
|
|
Machinery Type |
M/C |
|
|
Tapping Fluid |
Water soluble cutting fluid |

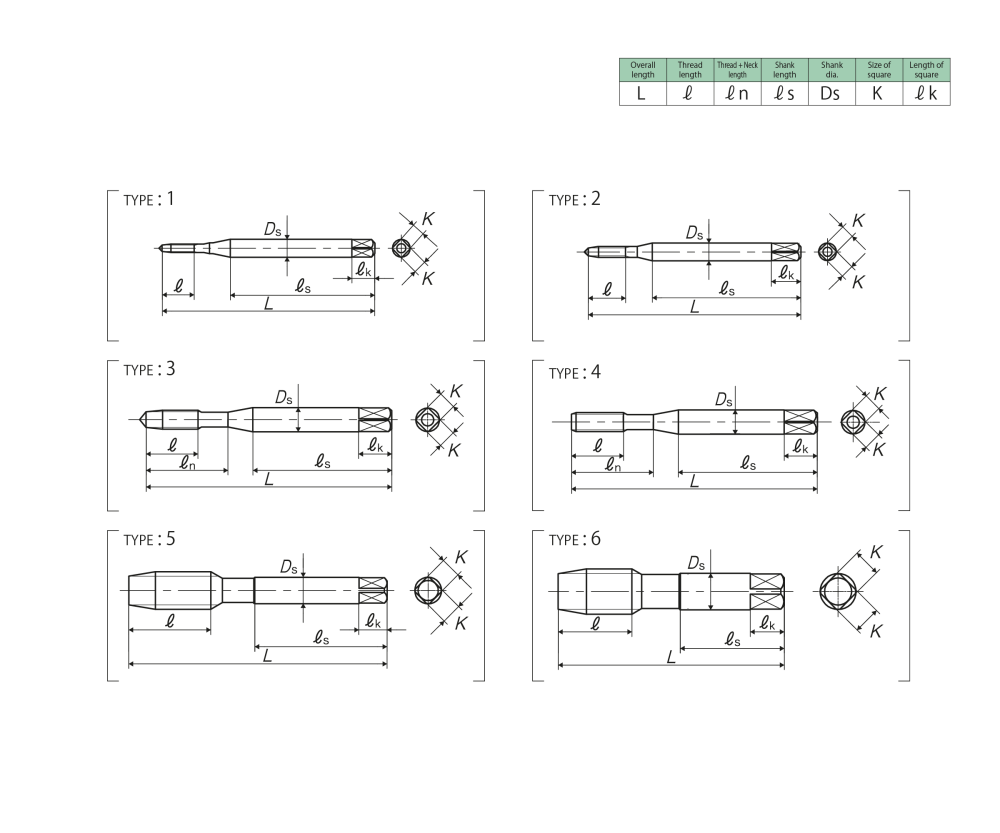

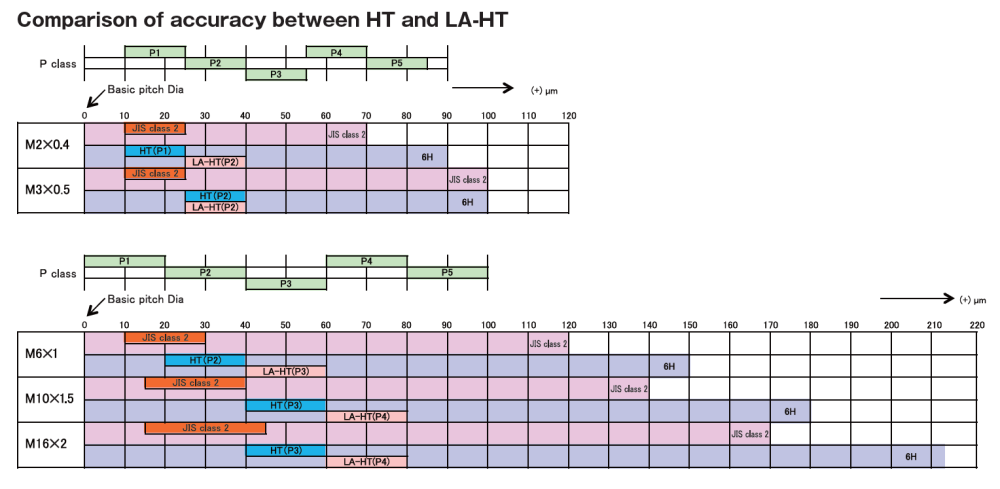

Specification
Tapping Speeds depending on Materials
Segment：1A
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M1.4×0.3 |
P2 |
TY1.4CQLEN5 |
5P |
36 |
5.4 |
- |
24 |
3 |
2.5 |
5 |
3 |
1 |
|
M1.4×0.3 |
P2 |
TY1.4CQLENA |
1.5P |
36 |
5.4 |
- |
24 |
3 |
2.5 |
5 |
3 |
1 |
|
M1.6×0.35 |
P2 |
TY1.6DQLEN5 |
5P |
36 |
6.3 |
- |
24 |
3 |
2.5 |
5 |
3 |
2 |
|
M1.6×0.35 |
P2 |
TY1.6DQLENA |
1.5P |
36 |
6.3 |
- |
24 |
3 |
2.5 |
5 |
3 |
2 |
|
M2×0.4 |
P2 |
TY2.0EQLEN5 |
5P |
42 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
3 |
3 |
|
M2×0.4 |
P2 |
TY2.0EQLENA |
1.5P |
42 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
3 |
3 |
|
M2.3×0.4 |
P2 |
TY2.3EQLEN5 |
5P |
42 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
3 |
3 |
|
M2.3×0.4 |
P2 |
TY2.3EQLENA |
1.5P |
42 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
3 |
3 |
|
M2.5×0.45 |
P2 |
TY2.5FQLEN5 |
5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
3 |
3 |
|
M2.5×0.45 |
P2 |
TY2.5FQLENA |
1.5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
3 |
3 |
|
M2.6×0.45 |
P2 |
TY2.6FQLEN5 |
5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
3 |
3 |
|
M2.6×0.45 |
P2 |
TY2.6FQLENA |
1.5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
3 |
3 |
|
M3×0.5 |
P2 |
TY3.0GQLEN5 |
5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
3 |
|
M3×0.5 |
P2 |
TY3.0GQLENA |
1.5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
3 |
|
M3.5×0.6 |
P2 |
TY3.5HQLEN5 |
5P |
52 |
11 |
16 |
29 |
5 |
4 |
7 |
3 |
3 |
|
M3.5×0.6 |
P2 |
TY3.5HQLENA |
1.5P |
52 |
11 |
16 |
29 |
5 |
4 |
7 |
3 |
3 |
|
M4×0.7 |
P3 |
TY4.0IRLEN5 |
5P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
3 |
|
M4×0.7 |
P3 |
TY4.0IRLENA |
1.5P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
3 |
|
M5×0.8 |
P3 |
TY5.0KRLEN5 |
5P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
3 |
|
M5×0.8 |
P3 |
TY5.0KRLENA |
1.5P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
3 |
|
M6×1 |
P3 |
TY6.0MRLEN5 |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
3 |
|
M6×1 |
P3 |
TY6.0MRLENA |
1.5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
4 |
|
M8×1.25 |
P3 |
TY8.0NRLEN5 |
5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
5 |
|
M8×1.25 |
P3 |
TY8.0NRLENA |
1.5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
5 |
|
M8×1 |
P3 |
TY8.0MRLEN5 |
5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
5 |
|
M8×1 |
P3 |
TY8.0MRLENA |
1.5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
5 |
|
M10×1.5 |
P4 |
TY010OSLEN5 |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
4 |
5 |
|
M10×1.5 |
P4 |
TY010OSLENA |
1.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
4 |
5 |
|
M10×1.25 |
P3 |
TY010NRLEN5 |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
4 |
5 |
|
M10×1.25 |
P3 |
TY010NRLENA |
1.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
4 |
5 |
|
M10×1 |
P3 |
TY010MRLEN5 |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
4 |
5 |
|
M10×1 |
P3 |
TY010MRLENA |
1.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
4 |
5 |
|
M12×1.75 |
P4 |
TY012PSLEN5 |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
5 |
|
M12×1.75 |
P4 |
TY012PSLENA |
1.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
5 |
|
M12×1.5 |
P4 |
TY012OSLEN5 |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
5 |
|
M12×1.5 |
P4 |
TY012OSLENA |
1.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
5 |
|
M12×1.25 |
P4 |
TY012NSLEN5 |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
5 |
|
M12×1.25 |
P4 |
TY012NSLENA |
1.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
5 |
|
M12×1 |
P3 |
TY012MRLEN5 |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
5 |
|
M12×1 |
P3 |
TY012MRLENA |
1.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
5 |
|
M14×2 |
P4 |
TY014QSLEN5 |
5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
4 |
5 |
|
M14×2 |
P4 |
TY014QSLENA |
1.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
4 |
5 |
|
M14×1.5 |
P4 |
TY014OSLEN5 |
5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
4 |
5 |
|
M14×1.5 |
P4 |
TY014OSLENA |
1.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
4 |
5 |
|
M16×2 |
P4 |
TY016QSLEN5 |
5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
4 |
5 |
|
M16×2 |
P4 |
TY016QSLENA |
1.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
4 |
5 |
|
M16×1.5 |
P4 |
TY016OSLEN5 |
5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
4 |
5 |
|
M16×1.5 |
P4 |
TY016OSLENA |
1.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
4 |
5 |
|
M18×2.5 |
P5 |
TY018RTLEN5 |
5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
4 |
5 |
|
M18×2.5 |
P5 |
TY018RTLENA |
1.5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
4 |
5 |
|
M18×1.5 |
P4 |
TY018OSLEN5 |
5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
4 |
5 |
|
M18×1.5 |
P4 |
TY018OSLENA |
1.5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
4 |
5 |
|
M20×2.5 |
P5 |
TY020RTLEN5 |
5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
6 |
|
M20×2.5 |
P5 |
TY020RTLENA |
1.5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
6 |
|
M20×1.5 |
P4 |
TY020OSLEN5 |
5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
6 |
|
M20×1.5 |
P4 |
TY020OSLENA |
1.5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
6 |
|
M22×2.5 |
P5 |
TY022RTLENA |
1.5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
4 |
6 |
|
M22×1.5 |
P4 |
TY022OSLENA |
1.5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
4 |
6 |
|
M24×3 |
P5 |
TY024STLENA |
1.5P |
120 |
39 |
- |
55 |
19 |
15 |
18 |
4 |
6 |
|
M24×1.5 |
P4 |
TY024OSLENA |
1.5P |
120 |
39 |
- |
55 |
19 |
15 |
18 |
4 |
6 |
