LA series (Outside measuring of ODs and thicknesses) : Dial Calipers | PEACOCK
ราคาต่ำสุด
THB 0.00
THB 0.00
พร้อมส่ง
SKU
PEA-LA SERIES
Dial Calipers
LA series (Outside measuring of ODs and thicknesses)
The dial caliper gauge show its great power in measurement of inside and outside sizes, wall thickness, groove width and hole diameters and any other shapes and sections that is not apparently accessible.
Specifications
| Order No. | Graduation (mm) |
Range (mm) | Indication error (mm) |
Throat depth (mm) |

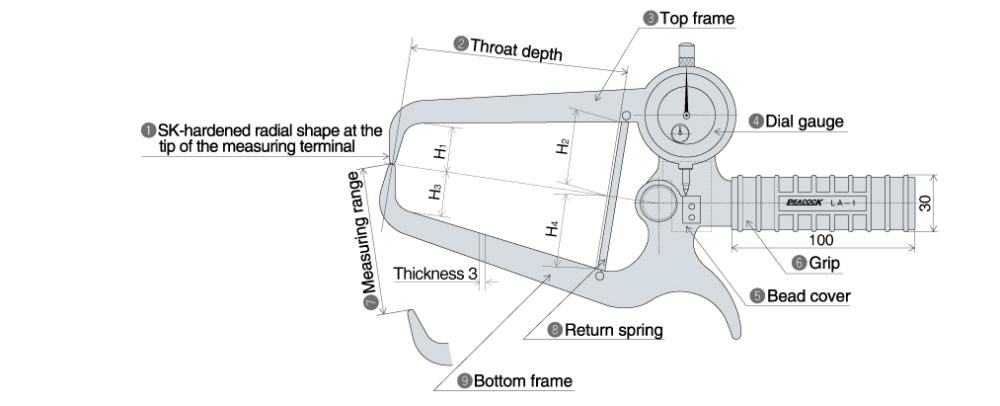

Dimensions (mm) | |||
| H1 | H2 | H3 | H4 | |||||
| LA-1 | 0.1 | 0～80 | ±0.2 | 120 | 25 | 40 | 25 | 40 |
| LA-2 | 0.1 | 0～80 | ±0.2 | 240 | 48 | 57 | 48 | 57 |
| LA-3 | 0.1 | 0～80 | ±0.2 | 400 | 60 | 60 | 58 | 79 |
| LA-4 | 0.05 | 0～50 | ±0.15 | 90 | 30 | 40 | 30 | 40 |
| LA-5 | 0.05 | 0～50 | ±0.15 | 150 | 38 | 57 | 15 | 21 |
| LA-5S | 0.05 | 0～10 | ±0.15 | 120 | 1.5 | 10 | 34 | 34 |
| LA-6 | 0.01 | 0～10 | ±0.03 | 60 | 2.5 | 18 | 2.5 | 18 |
| LA-7 | 0.01 | 0～60 | ±0.03 | 85 | 20 | 20 | 15 | 15 |
| LA-8 | 0.1 | 0～80 | ±0.2 | 130 | - | - | - | - |
| LA-9 | 0.1 | 0～30 | ±0.2 | 100 | 2 | 12 | 2 | 12 |
| LA-10 | 0.01 | 0～20 | ±0.03 | 100 | 28 | 28 | 28 | 28 |
| LA-11 | 0.1 | 0～50 | ±0.2 | 125 | 2 | 5.5 | 2 | 5.5 |
| LA-13 | 0.1 | 0～130 | ±0.3 | 235 | 134 | 134 | 15 | 37 |
| LA-14 | 0.01 | 100～150 | ±0.03 | 70 | - | - | - | - |
| LA-20 | 0.1 | 0～80 | ±0.2 | 125 | 17 | 11 | 17 | 11 |
| LA-21 | 0.1 | 0～80 | ±0.2 | 220 | 66 | 69 | 12 | 10 |
| LA-22 | 0.1 | 0～80 | ±0.2 | 250 | 28 | 23 | 62 | 62 |
| LA-23 | 0.1 | 0～80 | ±0.2 | 300 | 45 | 50 | 48 | 43 |
| LA-24 | 0.1 | 0～100 | ±0.4 | 600 | 300 | 300 | 100 | 100 |
| LA-31 | 0.01 | 0～20 | ±0.03 | 125 | 60 | 63 | - | - |
| แบรนด์สินค้า | PEACOCK |
|---|
