Dial Calipers

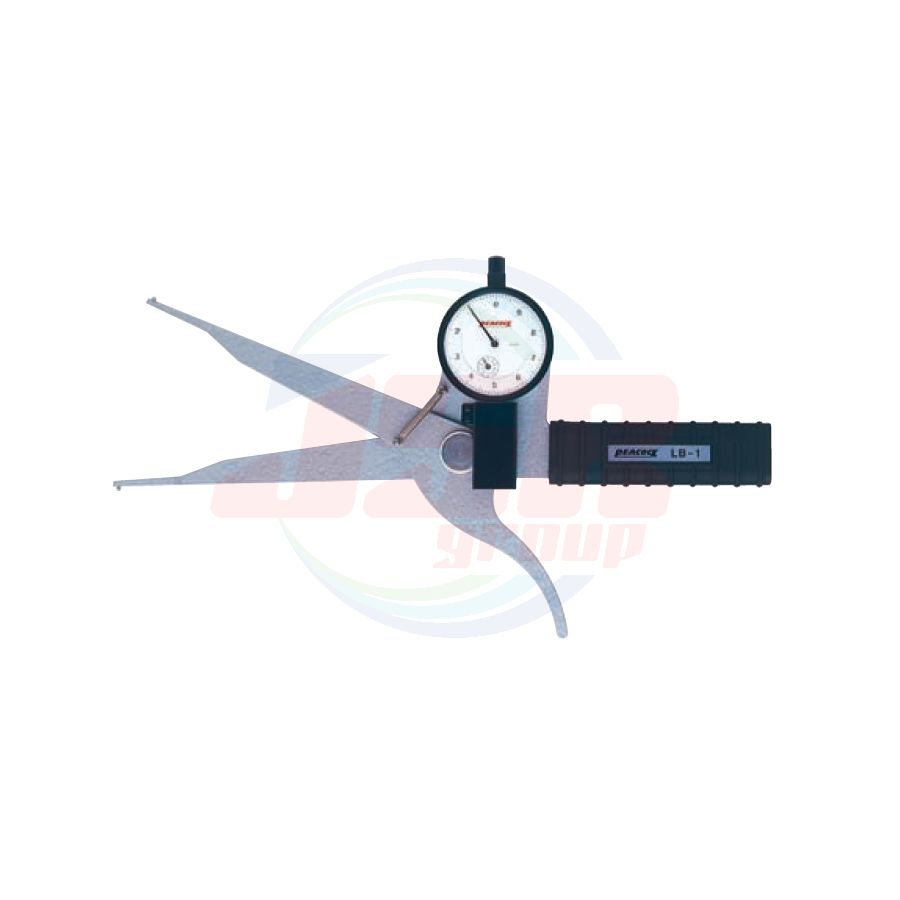

LB series (Inside measuring of ID and groove widths)
Specifications
| Order No. | Graduation (mm) |
Range (mm) | Indication error (mm) |
Throat depth (mm) |

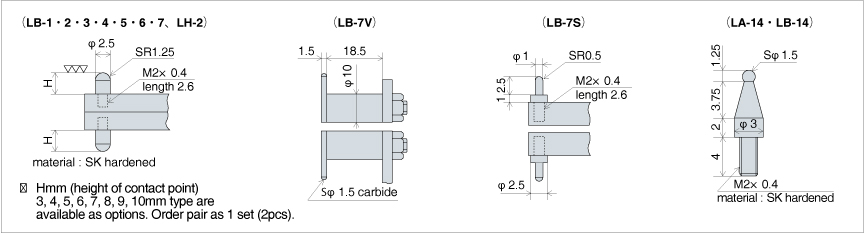

Height of contact point (mm) |
| LB-1 | 0.1 | 10～90 | ±0.2 | 125 | 2 |
| LB-2 | 0.1 | 10～90 | ±0.2 | 180 | 2 |
| LB-3 | 0.01 | 10～30 | ±0.03 | 50 | 2 |
| LB-4 | 0.01 | 10～30 | ±0.03 | 100 | 2 |
| LB-5 | 0.01 | 20～40 | ±0.03 | 150 | 4 |
| LB-6 | 0.01 | 30～50 | ±0.03 | 80 | 4 |
| LB-7 | 0.01 | 10～70 | ±0.03 | 85 | 2 |
| LB-7S | 0.01 | 15～35 | ±0.03 | 50 | 3.5 |
| LB-7V | 0.01 | 35～85 | ±0.03 | 20 | 6.5 |
| LB-8 | 0.01 | 100～120 | ±0.03 | 90 | 30 (SK hardened,one unit with frame) |
| LB-9 | 0.01 | 20～40 | ±0.03 | 130 | 2 (SK hardened,one unit with frame) |
| LB-14 | 0.01 | 100～150 | ±0.03 | 70 | 7 |
| ※LH-2 | 0.01 | 10～120 | ±0.03 | 50 | 2 |
※ For LH-2, the range of accuracy is 10 to 20mm. In case of 20mm or more, check the tolerance with Master Gauge.
