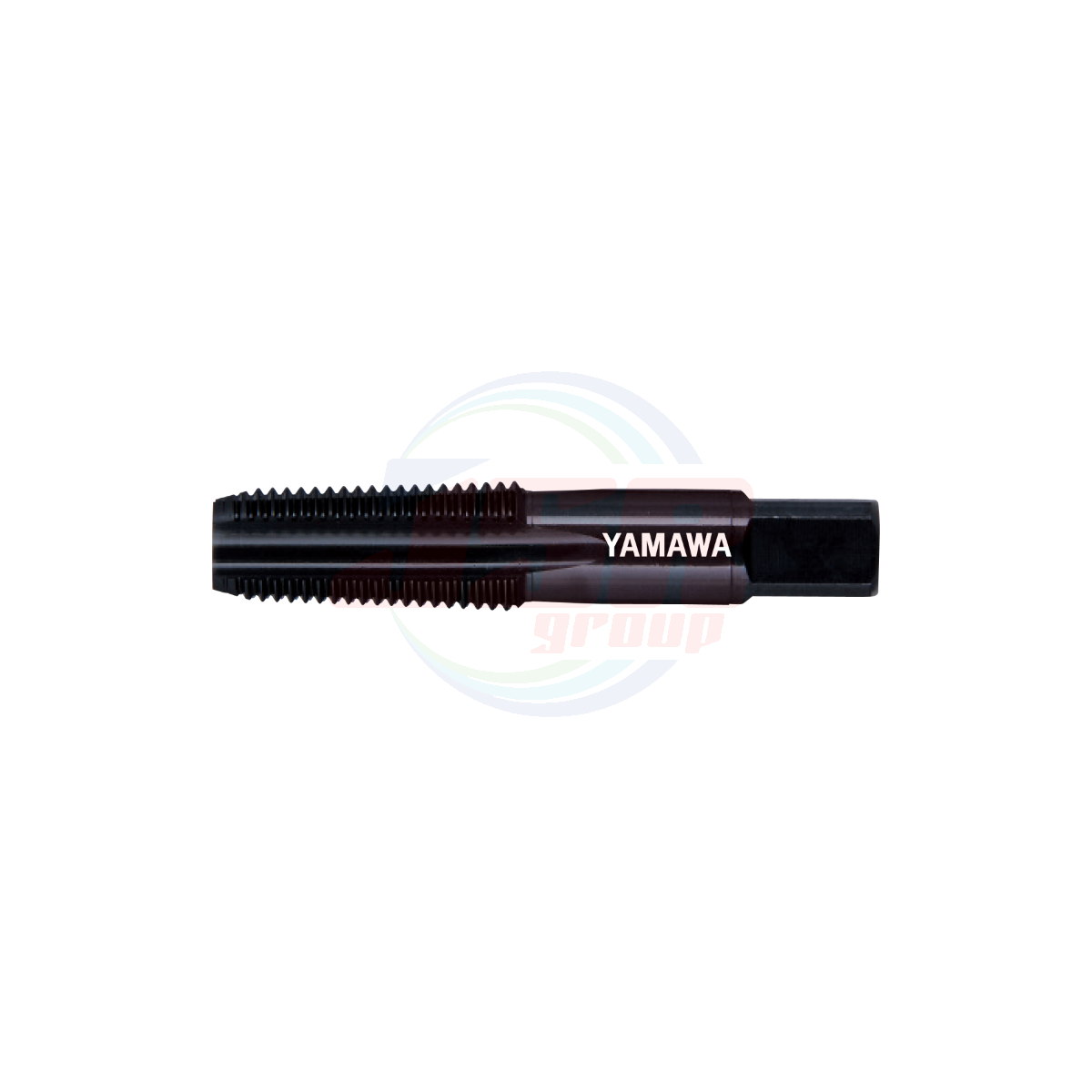

LC-PT 1/16-28 (LCPT01K) | Hand Taps for Taper Pipe Threads Long (ℓg) Type, for Low Carbon Steels | YAMAWA
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
LCPT01K
QTY:
1
- Tap suitable for such soft steels (low carbon steels) as SS400 and S25C.
Specification
Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
||||||||||||
|
PT 1/16-28 |
Ⅱ |
LCPT01K |
2.5P |
7.723 |
55 |
19 |
13 |
8 |
6 |
9 |
4 |
1 |
|
PT 1/8-28 |
Ⅱ |
LCPT02K |
2.5P |
9.728 |
55 |
19 |
13 |
8 |
6 |
9 |
4 |
2 |
|
PT 1/4-19 |
Ⅱ |
LCPT04- |
2.5P |
13.157 |
62 |
28 |
21 |
11 |
9 |
12 |
4 |
2 |
|
PT 3/8-19 |
Ⅱ |
LCPT06- |
2.5P |
16.662 |
65 |
28 |
21 |
14 |
11 |
14 |
4 |
2 |
|
PT 1/2-14 |
Ⅱ |
LCPT08Q |
2.5P |
20.955 |
80 |
35 |
25 |
18 |
14 |
17 |
4 |
2 |
|
PT 3/4-14 |
Ⅱ |
LCPT12Q |
2.5P |
26.441 |
85 |
35 |
25 |
23 |
17 |
20 |
4 |
2 |
|
PT 1 -11 |
Ⅱ |
LCPT16U |
2.5P |
33.249 |
95 |
45 |
32 |
26 |
21 |
24 |
5 |
2 |
|
PT 1 1/4-11 |
Ⅱ |
LCPT20U |
2.5P |
41.910 |
105 |
45 |
32 |
32 |
26 |
30 |
5 |
2 |
|
PT 1 1/2-11 |
Ⅱ |
LCPT24U |
2.5P |
47.803 |
110 |
45 |
32 |
38 |
29 |
32 |
6 |
2 |
|
PT 2 -11 |
Ⅱ |
LCPT32U |
2.5P |
59.614 |
120 |
50 |
35 |
46 |
35 |
38 |
6 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | PT 1/16-28 (LCPT01K) |
| Model | LC-PT |
| Size | 1/16-28 |
| Class | Ⅱ |
| Chamfer | 2.5P |
| Overall length (L) | 55 |
| Thread length (ℓ) | 19 |
| Shank dia. (Ds) | 8 |
| Size of Square (K) | 6 |
| Length of square (ℓk) | 9 |
