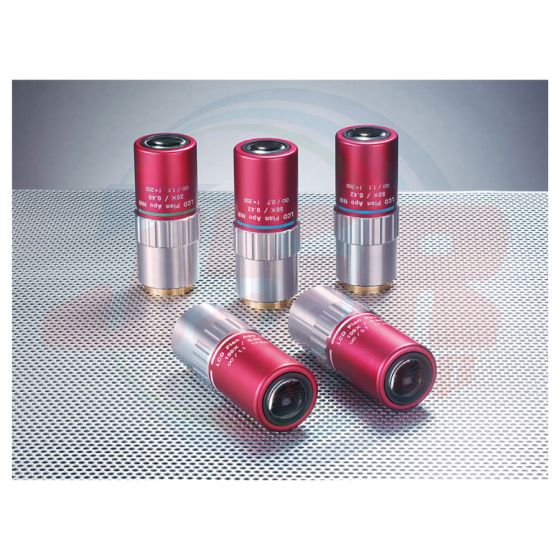

LCD Plan Apo NIR / LCD Plan Apo NIR HR
Near-Infrared Radiation Range Objectives for Bright-Field Observation (With Cover-Glass Thickness Compensation)
LCD Plan Apo NIR / LCD Plan Apo NIR HR
VMU / WIDE VMU / FS70
Features
> Bright-field observation/Near-infrared observation/Laser machining
> Wavelength compensation range 480 nm to 1800 nm
> Infinity corrected
> Long working distance
> Plan-Apochromat
> Design enables observation through a 3.5 mm or 1.1 mm cover glass (material: BK7).
Note: Mitutoyo is ready to design and manufacture a specific sheet of glass according to a specified glass thickness, material or refractive index, please contact your local Mitutoyo sales office.
> High-resolving power typ (LCD Plan Apo NIR HR)
Specifications
| Model | Order No. | N.A. | W.D. (mm) | f (mm) (λ= 550 nm) |
R (μm) (λ= 550 nm) |
±DOF (μm) | Real FOV (mm) | Mass (g) |
|
| ø24 Eyepiece | 2/3 Inch Camera | ||||||||
| LCD Plan Apo NIR | |||||||||
| LCD Plan Apo NIR 20X (t1.1) | 378-827-16 | 0.40 | 19.98 | 10 | 0.7 | 1.7 | 1.2 | 0.33×0.44 | 320 |
| LCD Plan Apo NIR 20X (t0.7) | 378-821-16 | 0.40 | 20.00 | 10 | 0.7 | 1.7 | 1.2 | 0.33×0.44 | 320 |
| LCD Plan Apo NIR 50X (t1.1) | 378-828-16 | 0.42 | 17.13 | 4 | 0.7 | 1.6 | 0.48 | 0.13×0.18 | 330 |
| LCD Plan Apo NIR 50X (t0.7) | 378-829-16 | 0.42 | 17.26 | 4 | 0.7 | 1.6 | 0.48 | 0.13×0.18 | 330 |
| LCD Plan Apo NIR 100X (t0.7) | 378-754-15 | 0.50 | 12.06 | 2 | 0.6 | 1.7 | 0.24 | 0.07×0.09 | 380 |
| LCD Plan Apo NIR HR | |||||||||
| LCD Plan Apo NIR HR 50X (t0.7) | 378-869-5 | 0.65 | 9.6 | 4 | 0.4 | 0.7 | 0.48 | 0.13×0.18 | 520 |
| LCD Plan Apo NIR HR 100X (t0.7) | 378-870-15 | 0.70 | 9.87 | 2 | 0.4 | 0.7 | 0.24 | 0.07×0.09 | 520 |
• Every resolution and single objective's depth of focus in the above table is a value determined on the basis of a reference wavelength (λ= 0.55 μm).
