LCK ADJUSTABLE, REPLACEABLE HEAD TORQUE WRENCH | KANON
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
KAN-LCK
FEATURES
● Ring, ratchet, open and hex drive heads are available.
● The torque can be set to any value within the capacity range.
● Models are available ranging from 20 kgf•cm to 15,000 kgf•cm.
● Accuracy : ±3% of indicated value over the full range.

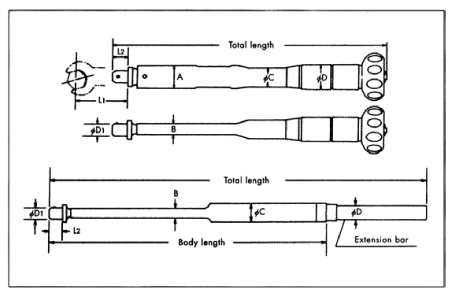

| Order No.(kgf • cm / kgf • m) | Range | Increment | Old Model(cN•m / N•m) | Order No.(cN•m / N•m) | Range | Increment | Total length | Dimensions (mm) | Weight | Replaceable heads | |||||||
| Head | Body | ||||||||||||||||
| kgf • cm/ kgf • m | kgf•cm/ kgf • m | N•m | N•m | mm | ØD1 | L1 | L2 | A | B | C | D | length Body | kg | ||||
| 60LCK | 20~60 kgf•cm | 1 kgf•cm | N60LCK | N6LCK | 2~6 | 0.1 | 174 | 10 | 45 | 13 | 18.2 | 9.6 | 15 | 0.18 | 12QCK 25 (QCK, SCK, RCK, HCK) |
||
| 120LCK | 40~120 〃 | 2 〃 | N120LCK | N12LCK | 4~12 | 0.2 | |||||||||||
| 250LCK | 50~250 〃 | 2 〃 | N230LCK | N25LCK | 5~25 | 0.2 | 208 | 0.21 | 25 (QCK, SCK, RCK, HCK) | ||||||||
| 500LCK | 100~500 〃 | 5 〃 | N450LCK | N50LCK | 10~50 | 0.5 | 238 | 12 | 55 | 16 | 25 | 11.4 | 20 | 0.38 | 50 (QCK, SCK, RCK, HCK) | ||
| 1000LCK | 200~1000 〃 | 10 〃 | N900LCK | N100LCK | 20~100 | 1 | 331 | 15 | 65 | 18 | 27.5 | 12.4 | 21.7 | 0.6 | 100 (QCK, SCK, RCK, HCK, NCK) | ||
| 2000LCK | 400~2000 〃 | 20 〃 | N1800LCK | N200LCK | 40~200 | 2 | 455 | 18 | 80 | 22 | 34 | 15.4 | 27.2 | 1.35 | 200 (QCK, SCK, RCK, HCK, NCK) | ||
| 2800LCK | 400~2800 〃 | 20 〃 | N2800LCK | N280LCK | 40~280 | 2 | 653 | 22 | 100 | 27 | 35 | 1.81 | 280 (QCK, SCK, RCK, HCK) | ||||
| 4400LCK | 6~44 kgf•m | 0.2 kgf•m | N4400LCK | N440LCK | 60~440 | 2 | 908 | 39 | 16 | 30 | 2.8 | 440 (QCK, SCK, RCK) | |||||
| 5600LCK | 8~56 〃 | 0.3 〃 | N5600LCK | N560LCK | 80~560 | 3 | 1086 | 30 | 125 | 45 | 43.5 | 18 | 34 | 4.1 | 700 (QCK, SCK, RCK) | ||
| 7000LCK | 10~70 〃 | 0.5 〃 | N7000LCK | N700LCK | 100~700 | 5 | 1206 | 46 | 19.2 | 35.4 | 27.2 | 876 | 5.1 | ||||
| 8500LCK | 10~85 〃 | 0.5 〃 | N8500LCK | N850LCK | 100~850 | 5 | 1267 | 34 | 130 | 47 | 54 | 23 | 42.7 | 31.8 | 984 | 7.2 | 1000 (QCK, SCK, RCK) |
| 10000LCK | 10~100 〃 | 0.5 〃 | N10000LCK | N1000LCK | 100~1,000 | 5 | 1417 | 7.5 | |||||||||
| 15000LCK | 20~150 〃 | 1 〃 | N14000LCK | N1500LCK | 200~1,500 | 10 | 1700 | 38 | 160 | 60 | 66 | 26 | 51 | 40 | 1003 | 13.5 | 2100QCK, 1500 (SCK, RCK) |
| แบรนด์สินค้า | KANON |
|---|
