Levelnic DL-S4W series
Built-in-wireless.
Measurement value can be checked both on PC screen and the device's display panel.
■ High precision Digital Level
Resolution 0.001mm/m
Switchable Type ： Wireless use / Cable use
■ Stainless steel base for easier maintenance
（DL-S4W SUS)
USE
●High precision leveling of machine tools and surface plates, straightness and flatness measurement.
MATERIAL
●Body: Aluminum
FEATURES
●Wireless data transmission
●Measurement value can be displayed and recorded on PC screen during leveling work by using included receiver and software
●Switchable between wireless / wired for saving of electricity and long-time use
●Once USB receiver unit is inserted, the driver will be recognized automatically
●Two rechargeable batteries included. While one battery is being charged, the unit can be used with the other battery.
●Custom-made base can be attached to the threaded screw holes (M5×P0.8) at the bottom base
| Order No. | Model No. | oftware Language | Base Material | Weight |
| 010053 | DL-S4W | Japanese・English | Cast iron | 2.0 kg |
| 010011 | DL-S4W SUS | Japanese | Stainless steel SUS303 | 2.0 kg |
| 010131 | DL-S4W(HID) | Japanese | Cast iron | 2.0 kg |
SPECIFICATIONS
| Model Name | DL-S4W ／ DL-S4W SUS ／ DL-S4W-E | DL-S4W(HID) |
| Features | ・ Bluetooth is pre-connected to the included receiver unit (USB) | ・ Connected by Bluetooth HID to tablet and smart phone for keyboard use ・ Device name is able to be identified by its individual number ・ Output data includes device name to prevent receiving mistakes |
| Measuring Range ※ 1 | ± 5.00mm/m ± 0.286° | |
| Minimum Reading | 0.001mm/m 0.0001°(within ± 1.999mm/m) 0.01mm/m 0.001°(over ± 2mm) |
|
| Operating Temperature | 0 ～ 40℃ | |
| Accuracy ※ 2 |
Operating temperature 17 〜 23℃ Operating temperature 0 ～ 40℃ |
|
| Repeatability | Within ± 0.005mm/m ～ ± 0.0003° | |
| Output Signal | Conforms to RS-232C, wired Built-in wireless（ Bluetooth Class1※ 4, Communication distance: 30～50m） |
Conforms to RS-232C, wired Built-in wireless（ Bluetooth Class2※4, Communication distance: 10～20m） |
| Power Source | 9V dry cell 1pc 8.4V 006P type rechargeable battery 1pc Included AC adapter (DC9V output ・AC100V ～ 240V) |
|
| Run Time (continuous use)※3 |
Zinc-carbon battery: Approx.12 hrs. Alkaline battery: Approx. 30 hrs. Rechargeable battery: Approx. 10 hrs. |
Zinc-carbon battery: Approx.12 hrs. Alkaline battery: Approx. 30 hrs. Rechargeable battery: Approx. 10 hrs. |

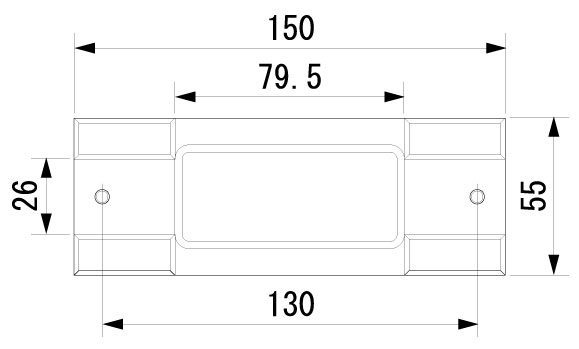

| Dimensions | L158 × W61 × H107mm (Base: L150 × W55mm） | |
| Accessories | ● Carrying case ● Warranty・Instruction manual・Inspection report ● AC adaptor (DC9V output ・AC 100V ～ 240V) ● 8.4v 006P type rechargeable battery 2 pcs ● Battery charger ● Dedicated display software for DL-S4W ● USB receiver unit（USB Type-A） |
● Carrying case ● Warranty・Instruction manual・Inspection report ● AC adaptor (DC9V output ・AC 100V ～ 240V) ● 8.4v 006P type rechargeable battery 2 pcs ● Battery charger |
※ 1： For DEG ( ゜) Display mode,“0 (Zero)” before the decimal point is not displayed.
For 0.001mm/m（ 0.0001゜) display mode, maximum reading which can be displayed is less than ±1.999mm/m (±0.1145゜).
※ 2： %rdg percent reading the percentage of displayed value.
※ 3：May vary depending upon measurment conditions.
※ 4： Our Bluetooth system qualification is with TELEC (Japan), FCC (U.S.A), CE (EU) and KCC (South Korea).
