Lever Type Dial Indicators NEW PIC TEST
Without change lever PCNseries
The New Pic Test is a lever type dial indicators used in all over the world.
It is a measuring instrument used for measurements of restricted areas, and the outside／inside, groove width and centering with the dial gauge installed to the lathe or the milling cutting machine for measurements with the gauges held on the height gauges.
● Without change lever (Automatic inverse type)
The lever type dial gauge of this type has no change lever, the contact point inverses automatically in normal or reverse direction as desired and pointer turns always CW to improve the measuring efficiency.
● Miniature Bearing Used
The miniature bearing used as a bearing at the pivot of the contact point to show good indication stability without any effect by rod play.
● O-ring used
Oil resistance is enhanced by seating the O-ring in the turning section of the outer frame.
Specifications
(unit: μm)
| Order No. | Graduation (mm) |
Range (mm) | Reading | Accuracy MPE (μm) | Measuring force less than (N) |
||||
| 10 Scale | 1 Rev. | Wide-range Forward accuracy |
Hysteresis | Repeatability | |||||
| PCN-0 | 0.01 | 0.5 | 0 - 25 - 0 | 5 | - | 6 | 4 | 3 | 0.3 |
| PCN-1A | 0.01 | 0.5 | 0 - 25 - 0 | 5 | - | 6 | 4 | 3 | 0.3 |
| PCN-1B | 0.01 | 0.8 | 0 - 40 - 0 | 5 | - | 9 | 4 | 3 | 0.3 |
| PCN-1L | 0.01 | 1.0 | 0 - 50 - 0 | 5 | - | 10 | 5 | 3 | 0.3 |
| PCN-2 | 0.002 | 0.28 | 0 - 140 - 0 | 2 | - | 4 | 3 | 1 | 0.3 |
| PCN-2B | 0.002 | 0.2 | 0 - 100 - 0 | 2 | - | 4 | 3 | 1 | 0.3 |
| PCN-S | 0.001 | 0.14 | 0 - 70 - 0 | 2 | - | 4 | 3 | 1 | 0.3 |
| PCN-7A | 0.01 | 1.5 | 0 - 25 - 0 | 5 | 10 | 16 | 5 | 3 | 0.3 |
| PCN-7C | 0.002 | 0.6 | 0 - 100 - 0 | 2 | 5 | 7 | 4 | 1 | 0.3 |
| PCN-5 | 0.01 | 0.5 | 0 - 25 - 0 | 5 | - | 6 | 4 | 3 | 0.3 |
| PCN-6 | 0.002 | 0.28 | 0 - 140 - 0 | 2 | - | 4 | 3 | 1 | 0.3 |
| PCN-6S | 0.001 | 0.14 | 0 - 70 - 0 | 2 | - | 4 | 3 | 1 | 0.3 |
| แบรนด์สินค้า | PEACOCK |
|---|

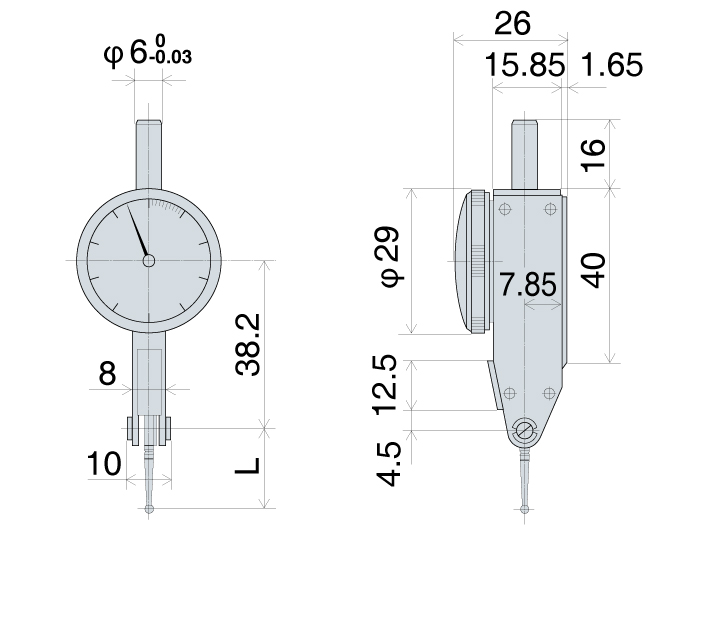

| Order No. | L (mm) |
| PCN-0 | 21.3 |

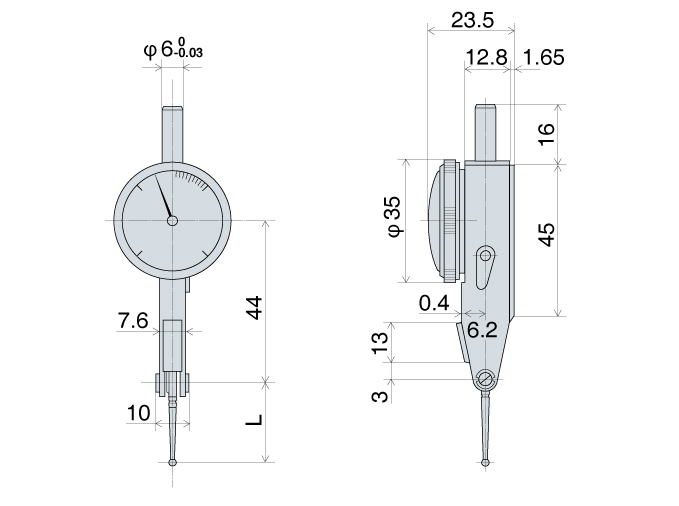

| Order No. | L (mm) |
| PCN-1A | 21.3 |
| PCN-1B | 22.2 |
| PCN-1L | 42.8 |
| PCN-2 | 17.94 |
| PCN-2B | 16.6 |
| PCN-S | 11.7 |
| PCN-7A | 21.3 |
| PCN-7C | 16.6 |

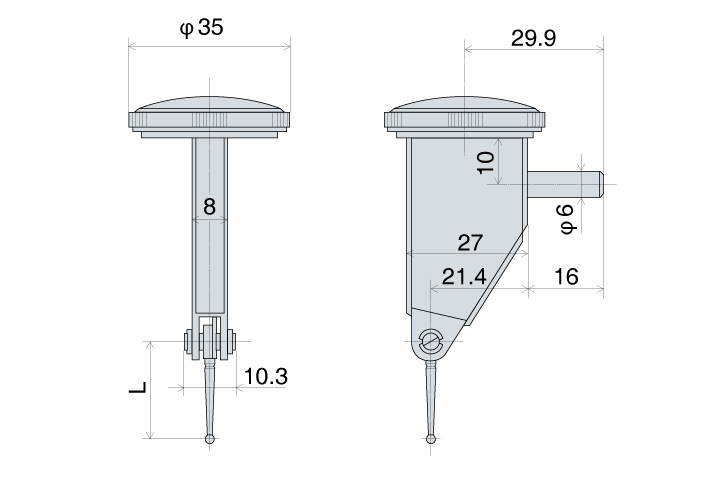

| Order No. | L (mm) |
| PCN-5 | 21.3 |
| PCN-6 | 17.94 |
