LKSLXL (Metric Threads) | Z-PRO Extra-Long Neck Spiral Fluted Tap for Through Hole | YAMAWA
ราคาต่ำสุด
THB 0.00
THB 0.00
พร้อมส่ง
SKU
YAM-LKSLXL Metric Threads
Product Features
- Spiral fluted tap for through hole with an extralong neck that enables deep hole tapping.
Specification
Tapping Speeds depending on Materials
25〜35HRC
Segment：1S
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓt (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |

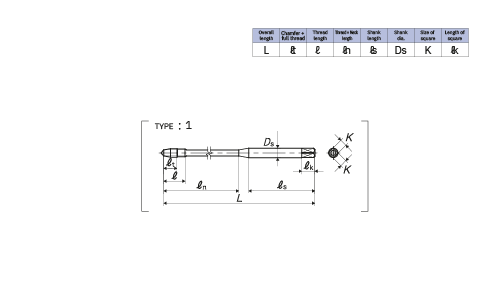

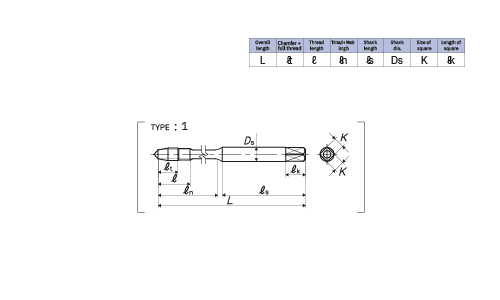

TYPE |
|
For Metric Threads |
|||||||||||||
|
M3×0.5 |
P3 |
2008101035 |
5P |
100 |
5 |
9 |
60 |
34 |
4 |
3.2 |
6 |
3 |
1 |
|
M4×0.7 |
P3 |
2008101042 |
5P |
100 |
7 |
11 |
60 |
34 |
5 |
4 |
7 |
3 |
1 |
|
M5×0.8 |
P3 |
2008101049 |
5P |
120 |
9 |
13 |
70 |
45 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P4 |
2008101055 |
5P |
120 |
11 |
15 |
70 |
47 |
6 |
4.5 |
7 |
3 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
