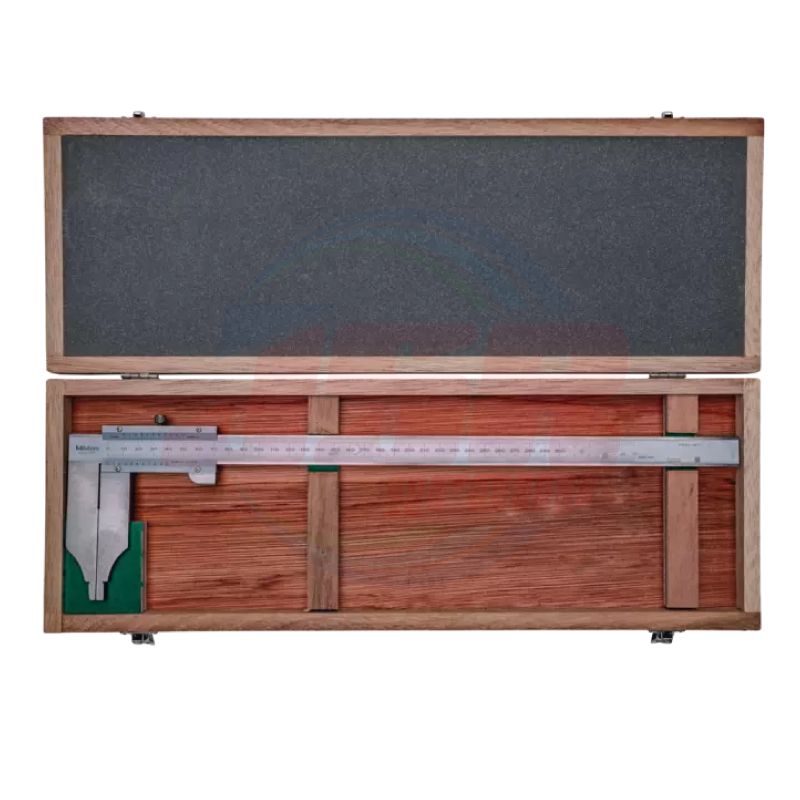

SERIES 534 | Long Jaw Vernier Caliper SERIES 534 | MITUTOYO

ราคาต่ำสุด THB 0.00 THB 0.00 ราคาปรกติ THB 11,449.00

พร้อมส่ง

SKU

1MIT-LJVCWFA

These vernier calipers with long jaws come with or without fine adjustment and let you measure hard-to-reach features.
They offer you the following benefits:

Long jaws enable you to measure hard-to-reach workpiece features.
The top offset vernier scale allows you to directly read the inside dimensions without having to add the jaw blade width.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SERIES 534 | Long Jaw Vernier Caliper SERIES 534 | MITUTOYO

Details

SPECIFICATIONS

Metric (with inside measurement Vernier scale)

Code No.	*Range (mm)^1**	Graduation (mm)	*Maximum permissible error (mm)^2**		Remarks
			E MPE	S MPE
534-109	0 (10.1) - 300	0.05	±0.07	±0.07	without fine adjustment
534-110	0 (20.1) - 500		±0.13	±0.13

Metric/Inch (with metric / inch double scale)

Code No.	*Range (mm)^1**	Graduation (mm)	*Maximum permissible error (mm)^2**		Remarks
Code No.	*Range (mm)^1**	Graduation (mm)	E MPE	S MPE	Remarks
534-101	0 - 300 mm/0 - 12 in (10.1 - 300 mm/0.398 - 12 in)	0.05 mm/ 1/128 in	±0.07 mm/ ±0.5/128 in	±0.07 mm/ ±0.5/128 in	+10 mm/0.394 in to reading in inside measurement without fine adjustment
534-105	0 - 300 mm/0 -12 in (10.1 - 300 mm/0.398 - 12 in)	0.02 mm/ 0.001 in	±0.04 mm/ ±0.0015 in	±0.04 mm/ ±0.0015 in
534-102	0 - 500 mm/0 - 20 in (20.1 - 500 mm/0.791 - 20 in)	0.05 mm/ 1/128 in	±0.13 mm/ ±0.5/128 in	±0.13 mm/ ±0.5/128 in	+20 mm/0.787 in to reading in inside measurement without fine adjustment
534-106	0 - 500 mm/0 - 20 in (20.1 - 500 mm/0.791 - 20 in)	0.02 mm/ 0.001 in	±0.06 mm/ ±0.0025 in	±0.06 mm/ ±0.0025 in
534-103	0 - 750 mm/0 - 30 in (20.1 - 750 mm/0.791 - 30 in)	0.05 mm/ 1/128 in	±0.16 mm/ ±1/128 in	±0.16 mm/ ±1/128 in
534-107	0 - 750 mm/0 - 30 in (20.1 - 750 mm/0.791 - 30 in)	0.02 mm/ 0.001 in	±0.08 mm/ ±0.003 in	±0.08 mm/ ±0.003 in
534-104	0 - 1000 mm/0 - 40 in (20.1 - 1000 mm/0.791 - 40 in)	0.05 mm/ 1/128 in	±0.2 mm/ ±1/128 in	±0.2 mm/ ±1/128 in
534-108	0 - 1000 mm/0 - 40 in (20.1 - 1000 mm/0.791 - 40 in)	0.02 mm/ 0.001 in	±0.1 mm/ ±0.004 in	±0.1 mm/ ±0.004 in

*1 ( ): Minimum dimension in ID measurement
*2 The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
