SKU
TEC-KM-LONG-0.05
Long Stroke Dial Indicator
• 50mm, 100mm, 150mm long stroke dial indicators with a large graduation plates are available.
• Measuring up to 150mm is materialized with highest precision components of high durability and Teclock original and unique enlargement mechanism is built-in.
• Bezel clamp (Option) can be mounted (except for KM-05100/KM-05150).
• Long stroke dial Indicator is widely used for construction, civil engineering industries etc.
• In case that flat back is required, add suffix “f” to the end of model number (example =KM-155f ) (except for KM-05100 /KM-05150).
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Repeatability (μm) |
Total Range Indication Error(μm) |
Hysteresis (μm) |
Standard Contact Point |
Measuring Force (N) |
Weight (g) |
| KM-05100 | 0.05 | 100 | 30 | 100 | 15 | ZS-018 | 2.5 or less | 550 |
| KM-05150 | 0.05 | 150 | 30 | 150 | 15 | ZS-018 | 3.0 or less | 680 |
Final inspection is done in the vertical orientation and the accuracy is guaranteed.
| แบรนด์สินค้า | TECLOCK |
|---|

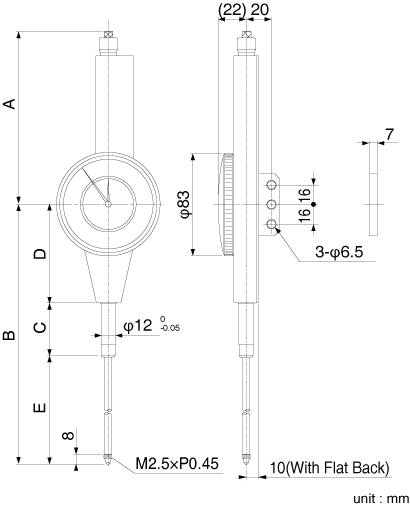

| Order No. | A | B | C | D | E |
| KM-05100 | 140 | 235 | 44 | 80 | 111 |
| KM-05150 | 190 | 335 | 55 | 120 | 160 |
