Long Stroke Dial Indicator
• 50mm, 100mm, 150mm long stroke dial indicators with a large graduation plates are available.
• Measuring up to 150mm is materialized with highest precision components of high durability and Teclock original and unique enlargement mechanism is built-in.
• Bezel clamp (Option) can be mounted (except for KM-05100/KM-05150).
• Long stroke dial Indicator is widely used for construction, civil engineering industries etc.

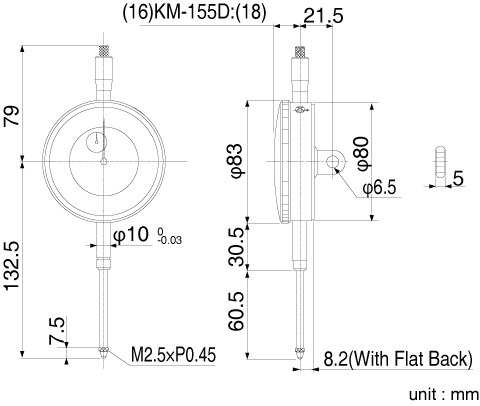

• In case that flat back is required, add suffix “f” to the end of model number (example =KM-155f ) (except for KM-05100 /KM-05150).
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Repeatability (μm) |
Indication Error(μm) | Hysteresis (μm) |
Standard Contact Point |
Measuring Force (N) |
Weight (g) |
|||
| 1/10 Revolution |
1/2 Revolution |
1 Revolution |
Total Range |
||||||||
| KM-55 | 0.05 | 50 | 20 | 30 | - | 50 | 100 | 15 | ZS-017 | 2.5 or less | 290 |
| KM-155 | 0.01 | 50 | 5 | 15 | 12 | 15 | 40 | 8 | ZS-017 | 2.5 or less | 290 |
| KM-155D | 0.01 | 50 | 5 | 15 | 12 | 15 | 40 | 8 | ZS-017 | 2.5 or less | 295 |
Final inspection is done in the vertical orientation and the accuracy is guaranteed.
