LOW PROFILE BOTTLE JACKS | MASADA JACK
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
MAS-MHB

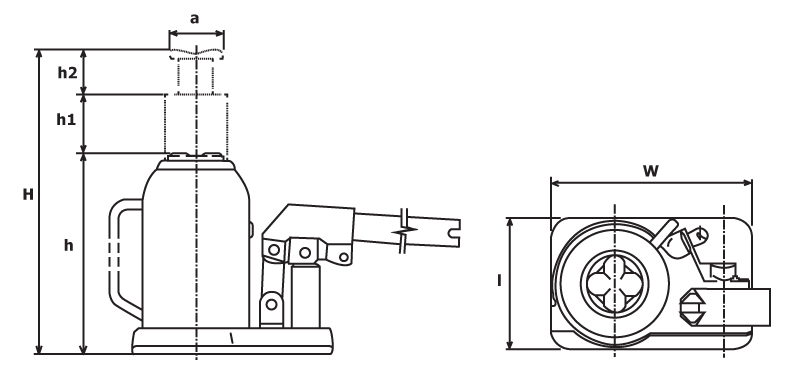

| Order No. | Capacity | Min. Height h | Ligting Height h1 | Extension Screwh2 | Max. Screw H | Saddle Dimensionsa | Base Dimensions l x w | Handle Dimensions | Operating Power | No. of Operation | Required Oil | Gross mass |
| KN (ton) | mm | mm | mm | mm | mm | mm | mm | N | CC | kg | ||
| MHB-10 | 100 (10) | 170 | 95 | 75 | 340 | 45x47 | 106x166 | Ø21.7x605 | 304 | 83 | 220 | 6.3 |
| MHB-15 | 150 (15) | 170 | 90 | 70 | 330 | 51x53 | 118x180 | Ø21.7x605 | 304 | 109 | 290 | 7.9 |
| MHB-20 | 200 (20) | 180 | 85 | 40 | 305 | 56.5x58 | 128x182 | Ø27.2x800 | 353 | 67 | 281 | 9.8 |

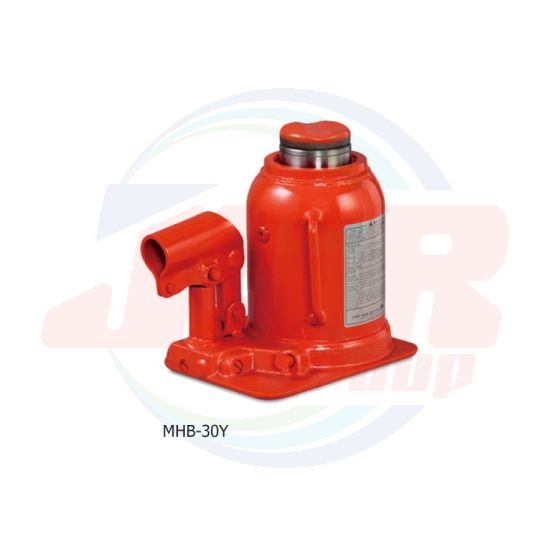

| MHB-30Y | 300 (30) | 180 | 80 | - | 260 | Ø61 | 142x192 | Ø27.2x800 | 353 | 96 | 380 | 13.7 |
| แบรนด์สินค้า | MASADA JACK |
|---|
