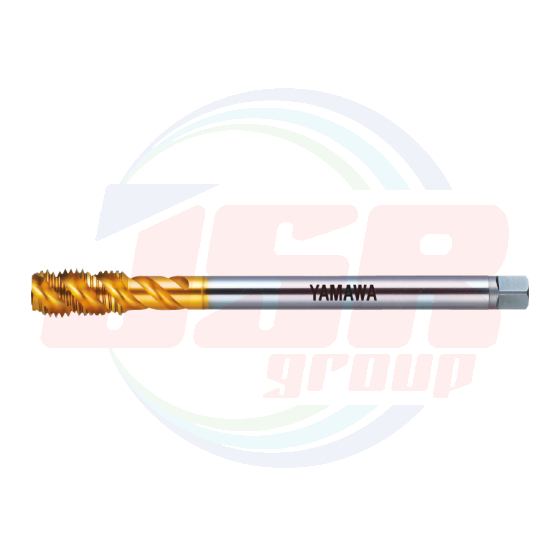

LS-F-SP (Metric Threads) | Long Shank Spiral Fluted Taps for High Speed Tapping | YAMAWA
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 1,181.28
พร้อมส่ง
SKU
YAM-LS-F-SP Metric Threads
Product Features
- Long Shank spiral fluted Tap applicable for such high speed tapping as 15m/min to 25m/min. Under low tapping speed, poor chip shape and poor chip ejection may occur and cause tapping troubles.
Specification
Tapping Speeds depending on Materials
Segment：1C
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓt (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
|||||||||||||
|
M3×0.5 |
P2 |
S43.0GQFEVES |
2.5P |
100 |
5 |
9 |
18 |
40 |
4 |
3.2 |
6 |
3 |
1 |
|
M4×0.7 |
P2 |
S44.0IQFEVES |
2.5P |
100 |
7 |
11 |
21 |
40 |
5 |
4 |
7 |
3 |
1 |
|
M5×0.8 |
P2 |
S45.0KQFEVES |
2.5P |
100 |
9 |
13 |
25 |
40 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P2 |
S46.0MQFEVES |
2.5P |
100 |
11 |
15 |
30 |
40 |
6 |
4.5 |
7 |
3 |
1 |
|
M8×1.25 |
P3 |
SY8.0NRFEVES |
3P |
100 |
- |
12 |
- |
50 |
6.2 |
5 |
8 |
3 |
2 |
|
M10×1.5 |
P3 |
SY010ORFEVES |
3P |
100 |
- |
13 |
- |
50 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1.5 |
P3 |
SY010ORFEVGS |
3P |
150 |
- |
13 |
- |
50 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1.25 |
P3 |
SY010NRFEVES |
3P |
100 |
- |
13 |
- |
50 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1.25 |
P3 |
SY010NRFEVGS |
3P |
150 |
- |
13 |
- |
50 |
7 |
5.5 |
8 |
3 |
2 |
|
M12×1.75 |
P4 |
SY012PSFEVGS |
3P |
150 |
- |
15 |
- |
50 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.5 |
P3 |
SY012ORFEVGS |
3P |
150 |
- |
15 |
- |
50 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.25 |
P4 |
SY012NSFEVGS |
3P |
150 |
- |
15 |
- |
50 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M14×2 |
P4 |
SY014QSFEVGS |
3P |
150 |
- |
18 |
- |
60 |
10.5 |
8 |
11 |
3 |
2 |
|
M14×1.5 |
P3 |
SY014ORFEVGS |
3P |
150 |
- |
14 |
- |
60 |
10.5 |
8 |
11 |
3 |
2 |
|
M16×2 |
P4 |
SY016QSFEVGS |
3P |
150 |
- |
18 |
- |
60 |
12.5 |
10 |
13 |
3 |
2 |
|
M16×1.5 |
P3 |
SY016ORFEVGS |
3P |
150 |
- |
14 |
- |
60 |
12.5 |
10 |
13 |
3 |
2 |
|
M18×2.5 |
P4 |
SY018RSFEVGS |
3P |
150 |
- |
20 |
- |
70 |
14 |
11 |
14 |
4 |
2 |
|
M18×1.5 |
P4 |
SY018OSFEVGS |
3P |
150 |
- |
14 |
- |
70 |
14 |
11 |
14 |
4 |
2 |
|
M20×2.5 |
P4 |
SY020RSFEVGS |
3P |
150 |
- |
20 |
- |
70 |
15 |
12 |
15 |
4 |
3 |
|
M20×1.5 |
P4 |
SY020OSFEVGS |
3P |
150 |
- |
14 |
- |
70 |
15 |
12 |
15 |
4 |
3 |
|
M22×2.5 |
P4 |
SY022RSFEVGS |
3P |
150 |
- |
20 |
- |
70 |
17 |
13 |
16 |
4 |
3 |
|
M22×1.5 |
P4 |
SY022OSFEVGS |
3P |
150 |
- |
14 |
- |
70 |
17 |
13 |
16 |
4 |
3 |
|
M24×3 |
P4 |
SY024SSFEVGS |
3P |
150 |
- |
25 |
- |
80 |
19 |
15 |
18 |
4 |
3 |
|
M24×1.5 |
P4 |
SY024OSFEVGS |
3P |
150 |
- |
18 |
- |
80 |
19 |
15 |
18 |
4 |
3 |
|
M27×3 |
P4 |
SY027SSFEVKS |
3P |
200 |
- |
25 |
- |
80 |
20 |
15 |
18 |
4 |
3 |
|
M30×3.5 |
P5 |
SY030TTFEVKS |
3P |
200 |
- |
30 |
- |
80 |
23 |
17 |
20 |
4 |
3 |
