LS-HT (Metric Threads) | Long Shank Hand Taps | YAMAWA

เป็นคนแรกที่รีวิวสินค้านี้

ราคาต่ำสุด THB 0.00 THB 0.00 ราคาปรกติ THB 686.94

พร้อมส่ง

SKU

LS-HT (Metric Threads)

Long shank hand taps for tapping threads in deep holes that cannot be reached with astandard overall length.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

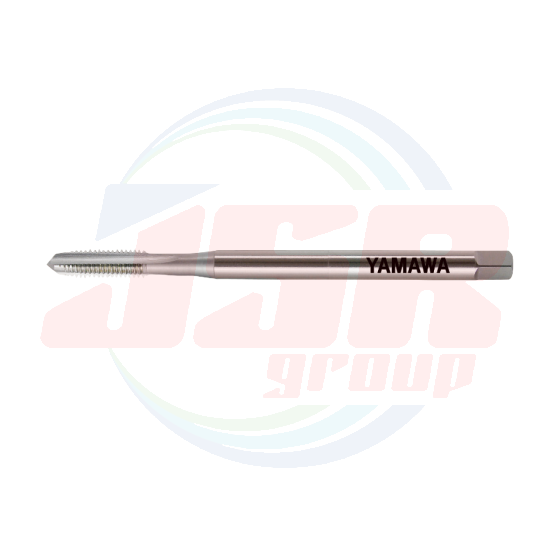

LS-HT (Metric Threads) | Long Shank Hand Taps | YAMAWA

LS-HT (Metric Threads) | Long Shank Hand Taps | YAMAWA

Specification

Tapping Speeds depending on Materials

Oversize

Segment：1A

Size	Class	Code	Chamfer	L (mm)	ℓ (mm)	ℓn (mm)	ℓs (mm)	Ds (mm)	K (mm)	ℓk (mm)	No. of flutes	TYPE
For Metric Threads
M2×0.4	P1	TNFP2.0E507	5P	70	7.2	15	52	3	2.5	5	3	1
M2×0.4	P1	TNFP2.0E107	1.5P	70	7.2	15	52	3	2.5	5	3	1
M2.3×0.4	P1	TNFP2.3E507	5P	70	7.2	15	52	3	2.5	5	3	1
M2.3×0.4	P1	TNFP2.3E107	1.5P	70	7.2	15	52	3	2.5	5	3	1
M2.5×0.45	P1	TNFP2.5F507	5P	70	8.1	15	52	3	2.5	5	3	1
M2.5×0.45	P1	TNFP2.5F107	1.5P	70	8.1	15	52	3	2.5	5	3	1
M2.6×0.45	P1	TNFP2.6F507	5P	70	8.1	15	52	3	2.5	5	3	1
M2.6×0.45	P1	TNFP2.6F107	1.5P	70	8.1	15	52	3	2.5	5	3	1
M3×0.5	P1	TNFP3.0G507	5P	70	9	18	46	4	3.2	6	3	1
M3×0.5	P1	TNFP3.0G510	5P	100	9	18	40	4	3.2	6	3	2
M3×0.5	P1	TNFP3.0G512	5P	120	9	18	40	4	3.2	6	3	2
M3×0.5	P1	TNFP3.0G515	5P	150	9	18	40	4	3.2	6	3	2
M3×0.5	P1	TNFP3.0G107	1.5P	70	9	18	46	4	3.2	6	3	1
M3×0.5	P1	TNFP3.0G110	1.5P	100	9	18	40	4	3.2	6	3	2
M3×0.5	P1	TNFP3.0G112	1.5P	120	9	18	40	4	3.2	6	3	2
M3×0.5	P1	TNFP3.0G115	1.5P	150	9	18	40	4	3.2	6	3	2
M3×0.5	P3	TNFR3.0G510	5P	100	9	18	40	4	3.2	6	3	2
M3×0.5	P3	TNFR3.0G515	5P	150	9	18	40	4	3.2	6	3	2
M3×0.5	P3	TNFR3.0G110	1.5P	100	9	18	40	4	3.2	6	3	2
M3×0.5	P3	TNFR3.0G115	1.5P	150	9	18	40	4	3.2	6	3	2
M4×0.7	P2	TNFQ4.0I507	5P	70	11	21	43	5	4	7	3	1
M4×0.7	P2	TNFQ4.0I510	5P	100	11	21	40	5	4	7	3	2
M4×0.7	P2	TNFQ4.0I512	5P	120	11	21	40	5	4	7	3	2
M4×0.7	P2	TNFQ4.0I515	5P	150	11	21	40	5	4	7	3	2
M4×0.7	P2	TNFQ4.0I107	1.5P	70	11	21	43	5	4	7	3	1
M4×0.7	P2	TNFQ4.0I110	1.5P	100	11	21	40	5	4	7	3	2
M4×0.7	P2	TNFQ4.0I112	1.5P	120	11	21	40	5	4	7	3	2
M4×0.7	P2	TNFQ4.0I115	1.5P	150	11	21	40	5	4	7	3	2
M4×0.7	P3	TNFR4.0I510	5P	100	11	21	40	5	4	7	3	2
M4×0.7	P3	TNFR4.0I515	5P	150	11	21	40	5	4	7	3	2
M4×0.7	P3	TNFR4.0I110	1.5P	100	11	21	40	5	4	7	3	2
M4×0.7	P3	TNFR4.0I115	1.5P	150	11	21	40	5	4	7	3	2
M5×0.8	P2	TNFQ5.0K507	5P	70	14	25	40	5.5	4.5	7	3	1
M5×0.8	P2	TNFQ5.0K510	5P	100	13	25	40	5.5	4.5	7	3	2
M5×0.8	P2	TNFQ5.0K512	5P	120	13	25	40	5.5	4.5	7	3	2
M5×0.8	P2	TNFQ5.0K515	5P	150	13	25	40	5.5	4.5	7	3	2
M5×0.8	P2	TNFQ5.0K107	1.5P	70	14	25	40	5.5	4.5	7	3	1
M5×0.8	P2	TNFQ5.0K110	1.5P	100	13	25	40	5.5	4.5	7	3	2
M5×0.8	P2	TNFQ5.0K112	1.5P	120	13	25	40	5.5	4.5	7	3	2
M5×0.8	P2	TNFQ5.0K115	1.5P	150	13	25	40	5.5	4.5	7	3	2
M5×0.8	P3	TNFR5.0K510	5P	100	13	25	40	5.5	4.5	7	3	2
M5×0.8	P3	TNFR5.0K515	5P	150	13	25	40	5.5	4.5	7	3	2
M5×0.8	P3	TNFR5.0K110	1.5P	100	13	25	40	5.5	4.5	7	3	2
M5×0.8	P3	TNFR5.0K115	1.5P	150	13	25	40	5.5	4.5	7	3	2
M6×1	P2	TNFQ6.0M510	5P	100	15	30	40	6	4.5	7	3	2
M6×1	P2	TNFQ6.0M512	5P	120	15	30	40	6	4.5	7	3	2
M6×1	P2	TNFQ6.0M515	5P	150	15	30	40	6	4.5	7	3	2
M6×1	P2	TNFQ6.0M520	5P	200	15	30	40	6	4.5	7	3	2
M6×1	P2	TNFQ6.0M110	1.5P	100	15	30	40	6	4.5	7	3	2
M6×1	P2	TNFQ6.0M112	1.5P	120	15	30	40	6	4.5	7	3	2
M6×1	P2	TNFQ6.0M115	1.5P	150	15	30	40	6	4.5	7	3	2
M6×1	P2	TNFQ6.0M120	1.5P	200	15	30	40	6	4.5	7	3	2
M6×1	P3	TNFR6.0M510	5P	100	15	30	40	6	4.5	7	3	2
M6×1	P3	TNFR6.0M515	5P	150	15	30	40	6	4.5	7	3	2
M6×1	P3	TNFR6.0M110	1.5P	100	15	30	40	6	4.5	7	3	2
M6×1	P3	TNFR6.0M115	1.5P	150	15	30	40	6	4.5	7	3	2
M8×1.25	P2	TNMQ8.0N510	5P	100	19	-	50	6.2	5	8	4	3
M8×1.25	P2	TNMQ8.0N512	5P	120	19	-	50	6.2	5	8	4	3
M8×1.25	P2	TNMQ8.0N515	5P	150	19	-	50	6.2	5	8	4	3
M8×1.25	P2	TNMQ8.0N520	5P	200	19	-	50	6.2	5	8	4	3
M8×1.25	P2	TNMQ8.0N110	1.5P	100	19	-	50	6.2	5	8	4	3
M8×1.25	P2	TNMQ8.0N112	1.5P	120	19	-	50	6.2	5	8	4	3
M8×1.25	P2	TNMQ8.0N115	1.5P	150	19	-	50	6.2	5	8	4	3
M8×1.25	P2	TNMQ8.0N120	1.5P	200	19	-	50	6.2	5	8	4	3
M8×1.25	P3	TNMR8.0N510	5P	100	19	-	50	6.2	5	8	4	3
M8×1.25	P3	TNMR8.0N515	5P	150	19	-	50	6.2	5	8	4	3
M8×1.25	P3	TNMR8.0N520	5P	200	19	-	50	6.2	5	8	4	3
M8×1.25	P3	TNMR8.0N110	1.5P	100	19	-	50	6.2	5	8	4	3
M8×1.25	P3	TNMR8.0N115	1.5P	150	19	-	50	6.2	5	8	4	3
M8×1.25	P3	TNMR8.0N120	1.5P	200	19	-	50	6.2	5	8	4	3
M8×1	P2	TNMQ8.0M510	5P	100	19	-	50	6.2	5	8	4	3
M8×1	P2	TNMQ8.0M512	5P	120	19	-	50	6.2	5	8	4	3
M8×1	P2	TNMQ8.0M515	5P	150	19	-	50	6.2	5	8	4	3
M8×1	P2	TNMQ8.0M110	1.5P	100	19	-	50	6.2	5	8	4	3
M8×1	P2	TNMQ8.0M112	1.5P	120	19	-	50	6.2	5	8	4	3
M8×1	P2	TNMQ8.0M115	1.5P	150	19	-	50	6.2	5	8	4	3
M10×1.5	P2	TNMQ010O510	5P	100	23	-	50	7	5.5	8	4	3
M10×1.5	P2	TNMQ010O512	5P	120	23	-	50	7	5.5	8	4	3
M10×1.5	P2	TNMQ010O515	5P	150	23	-	50	7	5.5	8	4	3
M10×1.5	P2	TNMQ010O520	5P	200	23	-	50	7	5.5	8	4	3
M10×1.5	P2	TNMQ010O525	5P	250	23	-	50	7	5.5	8	4	3
M10×1.5	P2	TNMQ010O110	1.5P	100	23	-	50	7	5.5	8	4	3
M10×1.5	P2	TNMQ010O112	1.5P	120	23	-	50	7	5.5	8	4	3
M10×1.5	P2	TNMQ010O115	1.5P	150	23	-	50	7	5.5	8	4	3
M10×1.5	P2	TNMQ010O120	1.5P	200	23	-	50	7	5.5	8	4	3
M10×1.5	P2	TNMQ010O125	1.5P	250	23	-	50	7	5.5	8	4	3
M10×1.5	P3	TNMR010O510	5P	100	23	-	50	7	5.5	8	4	3
M10×1.5	P3	TNMR010O515	5P	150	23	-	50	7	5.5	8	4	3
M10×1.5	P3	TNMR010O520	5P	200	23	-	50	7	5.5	8	4	3
M10×1.5	P3	TNMR010O110	1.5P	100	23	-	50	7	5.5	8	4	3
M10×1.5	P3	TNMR010O115	1.5P	150	23	-	50	7	5.5	8	4	3
M10×1.5	P3	TNMR010O120	1.5P	200	23	-	50	7	5.5	8	4	3
M10×1.5	P4	TNMS010O510	5P	100	23	-	50	7	5.5	8	4	3
M10×1.5	P4	TNMS010O515	5P	150	23	-	50	7	5.5	8	4	3
M10×1.5	P4	TNMS010O110	1.5P	100	23	-	50	7	5.5	8	4	3
M10×1.5	P4	TNMS010O115	1.5P	150	23	-	50	7	5.5	8	4	3
M10×1.25	P2	TNMQ010N510	5P	100	23	-	50	7	5.5	8	4	3
M10×1.25	P2	TNMQ010N512	5P	120	23	-	50	7	5.5	8	4	3
M10×1.25	P2	TNMQ010N515	5P	150	23	-	50	7	5.5	8	4	3
M10×1.25	P2	TNMQ010N520	5P	200	23	-	50	7	5.5	8	4	3
M10×1.25	P2	TNMQ010N110	1.5P	100	23	-	50	7	5.5	8	4	3
M10×1.25	P2	TNMQ010N112	1.5P	120	23	-	50	7	5.5	8	4	3
M10×1.25	P2	TNMQ010N115	1.5P	150	23	-	50	7	5.5	8	4	3
M10×1.25	P2	TNMQ010N120	1.5P	200	23	-	50	7	5.5	8	4	3
M10×1.25	P3	TNMR010N510	5P	100	23	-	50	7	5.5	8	4	3
M10×1.25	P3	TNMR010N515	5P	150	23	-	50	7	5.5	8	4	3
M10×1.25	P3	TNMR010N110	1.5P	100	23	-	50	7	5.5	8	4	3
M10×1.25	P3	TNMR010N115	1.5P	150	23	-	50	7	5.5	8	4	3
M10×1.25	P4	TNMS010N510	5P	100	23	-	50	7	5.5	8	4	3
M10×1.25	P4	TNMS010N515	5P	150	23	-	50	7	5.5	8	4	3
M10×1.25	P4	TNMS010N110	1.5P	100	23	-	50	7	5.5	8	4	3
M10×1.25	P4	TNMS010N115	1.5P	150	23	-	50	7	5.5	8	4	3
M10×1	P2	TNMQ010M510	5P	100	23	-	50	7	5.5	8	4	3
M10×1	P2	TNMQ010M512	5P	120	23	-	50	7	5.5	8	4	3
M10×1	P2	TNMQ010M515	5P	150	23	-	50	7	5.5	8	4	3
M10×1	P2	TNMQ010M110	1.5P	100	23	-	50	7	5.5	8	4	3
M10×1	P2	TNMQ010M112	1.5P	120	23	-	50	7	5.5	8	4	3
M10×1	P2	TNMQ010M115	1.5P	150	23	-	50	7	5.5	8	4	3
M12×1.75	P2	TNMQ012P510	5P	100	26	-	50	8.5	6.5	9	4	3
M12×1.75	P2	TNMQ012P512	5P	120	26	-	50	8.5	6.5	9	4	3
M12×1.75	P2	TNMQ012P515	5P	150	26	-	50	8.5	6.5	9	4	3
M12×1.75	P2	TNMQ012P520	5P	200	26	-	50	8.5	6.5	9	4	3
M12×1.75	P2	TNMQ012P525	5P	250	26	-	50	8.5	6.5	9	4	3
M12×1.75	P2	TNMQ012P110	1.5P	100	26	-	50	8.5	6.5	9	4	3
M12×1.75	P2	TNMQ012P112	1.5P	120	26	-	50	8.5	6.5	9	4	3
M12×1.75	P2	TNMQ012P115	1.5P	150	26	-	50	8.5	6.5	9	4	3
M12×1.75	P2	TNMQ012P120	1.5P	200	26	-	50	8.5	6.5	9	4	3
M12×1.75	P2	TNMQ012P125	1.5P	250	26	-	50	8.5	6.5	9	4	3
M12×1.75	P3	TNMR012P515	5P	150	26	-	50	8.5	6.5	9	4	3
M12×1.75	P3	TNMR012P520	5P	200	26	-	50	8.5	6.5	9	4	3
M12×1.75	P3	TNMR012P115	1.5P	150	26	-	50	8.5	6.5	9	4	3
M12×1.75	P3	TNMR012P120	1.5P	200	26	-	50	8.5	6.5	9	4	3
M12×1.75	P4	TNMS012P515	5P	150	26	-	50	8.5	6.5	9	4	3
M12×1.75	P4	TNMS012P520	5P	200	26	-	50	8.5	6.5	9	4	3
M12×1.75	P4	TNMS012P115	1.5P	150	26	-	50	8.5	6.5	9	4	3
M12×1.75	P4	TNMS012P120	1.5P	200	26	-	50	8.5	6.5	9	4	3
M12×1.5	P2	TNMQ012O510	5P	100	26	-	50	8.5	6.5	9	4	3
M12×1.5	P2	TNMQ012O512	5P	120	26	-	50	8.5	6.5	9	4	3
M12×1.5	P2	TNMQ012O515	5P	150	26	-	50	8.5	6.5	9	4	3
M12×1.5	P2	TNMQ012O520	5P	200	26	-	50	8.5	6.5	9	4	3
M12×1.5	P2	TNMQ012O110	1.5P	100	26	-	50	8.5	6.5	9	4	3
M12×1.5	P2	TNMQ012O112	1.5P	120	26	-	50	8.5	6.5	9	4	3
M12×1.5	P2	TNMQ012O115	1.5P	150	26	-	50	8.5	6.5	9	4	3
M12×1.5	P2	TNMQ012O120	1.5P	200	26	-	50	8.5	6.5	9	4	3
M12×1.5	P3	TNMR012O515	5P	150	26	-	50	8.5	6.5	9	4	3
M12×1.5	P3	TNMR012O115	1.5P	150	26	-	50	8.5	6.5	9	4	3
M12×1.5	P4	TNMS012O515	5P	150	26	-	50	8.5	6.5	9	4	3
M12×1.5	P4	TNMS012O520	5P	200	26	-	50	8.5	6.5	9	4	3
M12×1.5	P4	TNMS012O115	1.5P	150	26	-	50	8.5	6.5	9	4	3
M12×1.5	P4	TNMS012O120	1.5P	200	26	-	50	8.5	6.5	9	4	3
M12×1.25	P2	TNMQ012N510	5P	100	26	-	50	8.5	6.5	9	4	3
M12×1.25	P2	TNMQ012N512	5P	120	26	-	50	8.5	6.5	9	4	3
M12×1.25	P2	TNMQ012N515	5P	150	26	-	50	8.5	6.5	9	4	3
M12×1.25	P2	TNMQ012N520	5P	200	26	-	50	8.5	6.5	9	4	3
M12×1.25	P2	TNMQ012N110	1.5P	100	26	-	50	8.5	6.5	9	4	3
M12×1.25	P2	TNMQ012N112	1.5P	120	26	-	50	8.5	6.5	9	4	3
M12×1.25	P2	TNMQ012N115	1.5P	150	26	-	50	8.5	6.5	9	4	3
M12×1.25	P2	TNMQ012N120	1.5P	200	26	-	50	8.5	6.5	9	4	3
M12×1.25	P3	TNMR012N515	5P	150	26	-	50	8.5	6.5	9	4	3
M12×1.25	P3	TNMR012N115	1.5P	150	26	-	50	8.5	6.5	9	4	3
M12×1.25	P4	TNMS012N515	5P	150	26	-	50	8.5	6.5	9	4	3
M12×1.25	P4	TNMS012N520	5P	200	26	-	50	8.5	6.5	9	4	3
M12×1.25	P4	TNMS012N115	1.5P	150	26	-	50	8.5	6.5	9	4	3
M12×1.25	P4	TNMS012N120	1.5P	200	26	-	50	8.5	6.5	9	4	3
M12×1	P2	TNMQ012M510	5P	100	26	-	50	8.5	6.5	9	4	3
M12×1	P2	TNMQ012M512	5P	120	26	-	50	8.5	6.5	9	4	3
M12×1	P2	TNMQ012M515	5P	150	26	-	50	8.5	6.5	9	4	3
M12×1	P2	TNMQ012M110	1.5P	100	26	-	50	8.5	6.5	9	4	3
M12×1	P2	TNMQ012M112	1.5P	120	26	-	50	8.5	6.5	9	4	3
M12×1	P2	TNMQ012M115	1.5P	150	26	-	50	8.5	6.5	9	4	3
M14×2	P2	TNMQ014Q512	5P	120	26	-	60	10.5	8	11	4	3
M14×2	P2	TNMQ014Q515	5P	150	26	-	60	10.5	8	11	4	3
M14×2	P2	TNMQ014Q520	5P	200	26	-	60	10.5	8	11	4	3
M14×2	P2	TNMQ014Q525	5P	250	26	-	60	10.5	8	11	4	3
M14×2	P2	TNMQ014Q112	1.5P	120	26	-	60	10.5	8	11	4	3
M14×2	P2	TNMQ014Q115	1.5P	150	26	-	60	10.5	8	11	4	3
M14×2	P2	TNMQ014Q120	1.5P	200	26	-	60	10.5	8	11	4	3
M14×2	P2	TNMQ014Q125	1.5P	250	26	-	60	10.5	8	11	4	3
M14×2	P3	TNMR014Q515	5P	150	26	-	60	10.5	8	11	4	3
M14×2	P3	TNMR014Q520	5P	200	26	-	60	10.5	8	11	4	3
M14×2	P3	TNMR014Q115	1.5P	150	26	-	60	10.5	8	11	4	3
M14×2	P3	TNMR014Q120	1.5P	200	26	-	60	10.5	8	11	4	3
M14×2	P4	TNMS014Q515	5P	150	26	-	60	10.5	8	11	4	3
M14×2	P4	TNMS014Q115	1.5P	150	26	-	60	10.5	8	11	4	3
M14×1.5	P2	TNMQ014O512	5P	120	26	-	60	10.5	8	11	4	3
M14×1.5	P2	TNMQ014O515	5P	150	26	-	60	10.5	8	11	4	3
M14×1.5	P2	TNMQ014O520	5P	200	26	-	60	10.5	8	11	4	3
M14×1.5	P2	TNMQ014O112	1.5P	120	26	-	60	10.5	8	11	4	3
M14×1.5	P2	TNMQ014O115	1.5P	150	26	-	60	10.5	8	11	4	3
M14×1.5	P2	TNMQ014O120	1.5P	200	26	-	60	10.5	8	11	4	3
M14×1.5	P3	TNMR014O515	5P	150	26	-	60	10.5	8	11	4	3
M14×1.5	P3	TNMR014O115	1.5P	150	26	-	60	10.5	8	11	4	3
M14×1.5	P4	TNMS014O515	5P	150	26	-	60	10.5	8	11	4	3
M14×1.5	P4	TNMS014O115	1.5P	150	26	-	60	10.5	8	11	4	3
M14×1	P2	TNMQ014M515	5P	150	26	-	60	10.5	8	11	4	3
M14×1	P2	TNMQ014M115	1.5P	150	26	-	60	10.5	8	11	4	3
M16×2	P2	TNMQ016Q515	5P	150	26	-	60	12.5	10	13	4	3
M16×2	P2	TNMQ016Q520	5P	200	26	-	60	12.5	10	13	4	3
M16×2	P2	TNMQ016Q525	5P	250	26	-	60	12.5	10	13	4	3
M16×2	P2	TNMQ016Q115	1.5P	150	26	-	60	12.5	10	13	4	3
M16×2	P2	TNMQ016Q120	1.5P	200	26	-	60	12.5	10	13	4	3
M16×2	P2	TNMQ016Q125	1.5P	250	26	-	60	12.5	10	13	4	3
M16×2	P3	TNMR016Q515	5P	150	26	-	60	12.5	10	13	4	3
M16×2	P3	TNMR016Q520	5P	200	26	-	60	12.5	10	13	4	3
M16×2	P3	TNMR016Q115	1.5P	150	26	-	60	12.5	10	13	4	3
M16×2	P3	TNMR016Q120	1.5P	200	26	-	60	12.5	10	13	4	3
M16×2	P4	TNMS016Q515	5P	150	26	-	60	12.5	10	13	4	3
M16×2	P4	TNMS016Q115	1.5P	150	26	-	60	12.5	10	13	4	3
M16×1.5	P2	TNMQ016O512	5P	120	26	-	60	12.5	10	13	4	3
M16×1.5	P2	TNMQ016O515	5P	150	26	-	60	12.5	10	13	4	3
M16×1.5	P2	TNMQ016O520	5P	200	26	-	60	12.5	10	13	4	3
M16×1.5	P2	TNMQ016O112	1.5P	120	26	-	60	12.5	10	13	4	3
M16×1.5	P2	TNMQ016O115	1.5P	150	26	-	60	12.5	10	13	4	3
M16×1.5	P2	TNMQ016O120	1.5P	200	26	-	60	12.5	10	13	4	3
M16×1.5	P3	TNMR016O515	5P	150	26	-	60	12.5	10	13	4	3
M16×1.5	P3	TNMR016O115	1.5P	150	26	-	60	12.5	10	13	4	3
M16×1.5	P4	TNMS016O515	5P	150	26	-	60	12.5	10	13	4	3
M16×1.5	P4	TNMS016O115	1.5P	150	26	-	60	12.5	10	13	4	3
M16×1	P2	TNMQ016M515	5P	150	26	-	60	12.5	10	13	4	3
M16×1	P2	TNMQ016M115	1.5P	150	26	-	60	12.5	10	13	4	3
M18×2.5	P3	TNMR018R515	5P	150	33	-	70	14	11	14	4	3
M18×2.5	P3	TNMR018R520	5P	200	33	-	70	14	11	14	4	3
M18×2.5	P3	TNMR018R525	5P	250	33	-	70	14	11	14	4	3
M18×2.5	P3	TNMR018R115	1.5P	150	33	-	70	14	11	14	4	3
M18×2.5	P3	TNMR018R120	1.5P	200	33	-	70	14	11	14	4	3
M18×2.5	P3	TNMR018R125	1.5P	250	33	-	70	14	11	14	4	3
M18×2.5	P4	TNMS018R515	5P	150	33	-	70	14	11	14	4	3
M18×2.5	P4	TNMS018R520	5P	200	33	-	70	14	11	14	4	3
M18×2.5	P4	TNMS018R115	1.5P	150	33	-	70	14	11	14	4	3
M18×2.5	P4	TNMS018R120	1.5P	200	33	-	70	14	11	14	4	3
M18×2	P3	TNMR018Q520	5P	200	33	-	70	14	11	14	4	3
M18×2	P3	TNMR018Q120	1.5P	200	33	-	70	14	11	14	4	3
M18×1.5	P2	TNMQ018O515	5P	150	33	-	70	14	11	14	4	3
M18×1.5	P2	TNMQ018O520	5P	200	33	-	70	14	11	14	4	3
M18×1.5	P2	TNMQ018O115	1.5P	150	33	-	70	14	11	14	4	3
M18×1.5	P2	TNMQ018O120	1.5P	200	33	-	70	14	11	14	4	3
M18×1.5	P3	TNMR018O515	5P	150	33	-	70	14	11	14	4	3
M18×1.5	P3	TNMR018O115	1.5P	150	33	-	70	14	11	14	4	3
M20×2.5	P3	TNMR020R515	5P	150	33	-	70	15	12	15	4	4
M20×2.5	P3	TNMR020R520	5P	200	33	-	70	15	12	15	4	4
M20×2.5	P3	TNMR020R525	5P	250	33	-	70	15	12	15	4	4
M20×2.5	P3	TNMR020R115	1.5P	150	33	-	70	15	12	15	4	4
M20×2.5	P3	TNMR020R120	1.5P	200	33	-	70	15	12	15	4	4
M20×2.5	P3	TNMR020R125	1.5P	250	33	-	70	15	12	15	4	4
M20×2.5	P4	TNMS020R515	5P	150	33	-	70	15	12	15	4	4
M20×2.5	P4	TNMS020R520	5P	200	33	-	70	15	12	15	4	4
M20×2.5	P4	TNMS020R115	1.5P	150	33	-	70	15	12	15	4	4
M20×2.5	P4	TNMS020R120	1.5P	200	33	-	70	15	12	15	4	4
M20×2	P3	TNMR020Q520	5P	200	33	-	70	15	12	15	4	4
M20×2	P3	TNMR020Q120	1.5P	200	33	-	70	15	12	15	4	4
M20×1.5	P3	TNMR020O515	5P	150	33	-	70	15	12	15	4	4
M20×1.5	P3	TNMR020O520	5P	200	33	-	70	15	12	15	4	4
M20×1.5	P3	TNMR020O115	1.5P	150	33	-	70	15	12	15	4	4
M20×1.5	P3	TNMR020O120	1.5P	200	33	-	70	15	12	15	4	4
M20×1.5	P4	TNMS020O515	5P	150	33	-	70	15	12	15	4	4
M20×1.5	P4	TNMS020O115	1.5P	150	33	-	70	15	12	15	4	4
M22×2.5	P3	TNMR022R515	5P	150	33	-	70	17	13	16	4	4
M22×2.5	P3	TNMR022R520	5P	200	33	-	70	17	13	16	4	4
M22×2.5	P3	TNMR022R525	5P	250	33	-	70	17	13	16	4	4
M22×2.5	P3	TNMR022R115	1.5P	150	33	-	70	17	13	16	4	4
M22×2.5	P3	TNMR022R120	1.5P	200	33	-	70	17	13	16	4	4
M22×2.5	P3	TNMR022R125	1.5P	250	33	-	70	17	13	16	4	4
M22×2.5	P4	TNMS022R515	5P	150	33	-	70	17	13	16	4	4
M22×2.5	P4	TNMS022R520	5P	200	33	-	70	17	13	16	4	4
M22×2.5	P4	TNMS022R115	1.5P	150	33	-	70	17	13	16	4	4
M22×2.5	P4	TNMS022R120	1.5P	200	33	-	70	17	13	16	4	4
M22×2	P3	TNMR022Q520	5P	200	33	-	70	17	13	16	4	4
M22×2	P3	TNMR022Q120	1.5P	200	33	-	70	17	13	16	4	4
M22×1.5	P3	TNMR022O515	5P	150	33	-	70	17	13	16	4	4
M22×1.5	P3	TNMR022O520	5P	200	33	-	70	17	13	16	4	4
M22×1.5	P3	TNMR022O115	1.5P	150	33	-	70	17	13	16	4	4
M22×1.5	P3	TNMR022O120	1.5P	200	33	-	70	17	13	16	4	4
M24×3	P3	TNMR024S515	5P	150	39	-	80	19	15	18	4	4
M24×3	P3	TNMR024S520	5P	200	39	-	80	19	15	18	4	4
M24×3	P3	TNMR024S525	5P	250	39	-	80	19	15	18	4	4
M24×3	P3	TNMR024S115	1.5P	150	39	-	80	19	15	18	4	4
M24×3	P3	TNMR024S120	1.5P	200	39	-	80	19	15	18	4	4
M24×3	P3	TNMR024S125	1.5P	250	39	-	80	19	15	18	4	4
M24×3	P4	TNMS024S515	5P	150	39	-	80	19	15	18	4	4
M24×3	P4	TNMS024S520	5P	200	39	-	80	19	15	18	4	4
M24×3	P4	TNMS024S115	1.5P	150	39	-	80	19	15	18	4	4
M24×3	P4	TNMS024S120	1.5P	200	39	-	80	19	15	18	4	4
M24×2	P3	TNMR024Q520	5P	200	39	-	80	19	15	18	4	4
M24×2	P3	TNMR024Q120	1.5P	200	39	-	80	19	15	18	4	4
M24×1.5	P3	TNMR024O515	5P	150	39	-	80	19	15	18	4	4
M24×1.5	P3	TNMR024O520	5P	200	39	-	80	19	15	18	4	4
M24×1.5	P3	TNMR024O115	1.5P	150	39	-	80	19	15	18	4	4
M24×1.5	P3	TNMR024O120	1.5P	200	39	-	80	19	15	18	4	4
M27×3	P3	TNMR027S520	5P	200	39	-	80	20	15	18	4	4
M27×3	P3	TNMR027S525	5P	250	39	-	80	20	15	18	4	4
M27×3	P3	TNMR027S120	1.5P	200	39	-	80	20	15	18	4	4
M27×3	P3	TNMR027S125	1.5P	250	39	-	80	20	15	18	4	4
M27×2	P3	TNMR027Q520	5P	200	39	-	80	20	15	18	4	4
M27×2	P3	TNMR027Q525	5P	250	39	-	80	20	15	18	4	4
M27×2	P3	TNMR027Q120	1.5P	200	39	-	80	20	15	18	4	4
M27×2	P3	TNMR027Q125	1.5P	250	39	-	80	20	15	18	4	4
M27×1.5	P3	TNMR027O520	5P	200	39	-	80	20	15	18	4	4
M27×1.5	P3	TNMR027O525	5P	250	39	-	80	20	15	18	4	4
M27×1.5	P3	TNMR027O120	1.5P	200	39	-	80	20	15	18	4	4
M27×1.5	P3	TNMR027O125	1.5P	250	39	-	80	20	15	18	4	4
M30×3.5	P4	TNMS030T520	5P	200	46	-	80	23	17	20	4	4
M30×3.5	P4	TNMS030T525	5P	250	46	-	80	23	17	20	4	4
M30×3.5	P4	TNMS030T530	5P	300	46	-	80	23	17	20	4	4
M30×3.5	P4	TNMS030T120	1.5P	200	46	-	80	23	17	20	4	4
M30×3.5	P4	TNMS030T125	1.5P	250	46	-	80	23	17	20	4	4
M30×3.5	P4	TNMS030T130	1.5P	300	46	-	80	23	17	20	4	4
M30×3	P3	TNMR030S520	5P	200	46	-	80	23	17	20	4	4
M30×3	P3	TNMR030S525	5P	250	46	-	80	23	17	20	4	4
M30×3	P3	TNMR030S120	1.5P	200	46	-	80	23	17	20	4	4
M30×3	P3	TNMR030S125	1.5P	250	46	-	80	23	17	20	4	4
M30×2	P3	TNMR030Q520	5P	200	46	-	80	23	17	20	4	4
M30×2	P3	TNMR030Q525	5P	250	46	-	80	23	17	20	4	4
M30×2	P3	TNMR030Q120	1.5P	200	46	-	80	23	17	20	4	4
M30×2	P3	TNMR030Q125	1.5P	250	46	-	80	23	17	20	4	4
M30×1.5	P3	TNMR030O520	5P	200	46	-	80	23	17	20	4	4
M30×1.5	P3	TNMR030O525	5P	250	46	-	80	23	17	20	4	4
M30×1.5	P3	TNMR030O120	1.5P	200	46	-	80	23	17	20	4	4
M30×1.5	P3	TNMR030O125	1.5P	250	46	-	80	23	17	20	4	4
M33×3.5	P4	L25033T5-S	5P	250	51	-	80	25	19	22	4	4
M33×3.5	P4	L30033T5-S	5P	300	51	-	80	25	19	22	4	4
M33×3.5	P4	L25033T1-S	1.5P	250	51	-	80	25	19	22	4	4
M33×3.5	P4	L30033T1-S	1.5P	300	51	-	80	25	19	22	4	4
M33×3	P3	L25033S5-R	5P	250	51	-	80	25	19	22	4	4
M33×3	P3	L25033S1-R	1.5P	250	51	-	80	25	19	22	4	4
M33×2	P3	L25033Q5-R	5P	250	45	-	80	25	19	22	4	4
M33×2	P3	L25033Q1-R	1.5P	250	45	-	80	25	19	22	4	4
M33×1.5	P3	L25033O5-R	5P	250	45	-	80	25	19	22	4	4
M33×1.5	P3	L25033O1-R	1.5P	250	45	-	80	25	19	22	4	4
M36×4	P4	L25036U5-S	5P	250	57	-	100	28	21	24	4	4
M36×4	P4	L30036U5-S	5P	300	57	-	100	28	21	24	4	4
M36×4	P4	L25036U1-S	1.5P	250	57	-	100	28	21	24	4	4
M36×4	P4	L30036U1-S	1.5P	300	57	-	100	28	21	24	4	4
M36×3	P3	L25036S5-R	5P	250	57	-	100	28	21	24	4	4
M36×3	P3	L25036S1-R	1.5P	250	57	-	100	28	21	24	4	4
M36×2	P3	L25036Q5-R	5P	250	45	-	100	28	21	24	4	4
M36×2	P3	L25036Q1-R	1.5P	250	45	-	100	28	21	24	4	4
M36×1.5	P3	L25036O5-R	5P	250	45	-	100	28	21	24	4	4
M36×1.5	P3	L25036O1-R	1.5P	250	45	-	100	28	21	24	4	4
M39×4	P4	L25039U5-S	5P	250	60	-	100	30	23	26	4	4
M39×4	P4	L30039U5-S	5P	300	60	-	100	30	23	26	4	4
M39×4	P4	L25039U1-S	1.5P	250	60	-	100	30	23	26	4	4
M39×4	P4	L30039U1-S	1.5P	300	60	-	100	30	23	26	4	4
M39×3	P3	L25039S5-R	5P	250	60	-	100	30	23	26	4	4
M39×3	P3	L25039S1-R	1.5P	250	60	-	100	30	23	26	4	4
M39×2	P3	L25039Q5-R	5P	250	45	-	100	30	23	26	4	4
M39×2	P3	L25039Q1-R	1.5P	250	45	-	100	30	23	26	4	4
M39×1.5	P3	L25039O5-R	5P	250	45	-	100	30	23	26	4	4
M39×1.5	P3	L25039O1-R	1.5P	250	45	-	100	30	23	26	4	4
M40×3	P3	L25040S5-R	5P	250	60	-	100	30	23	26	4	4
M40×3	P3	L30040S5-R	5P	300	60	-	100	30	23	26	4	4
M40×3	P3	L25040S1-R	1.5P	250	60	-	100	30	23	26	4	4
M40×3	P3	L30040S1-R	1.5P	300	60	-	100	30	23	26	4	4
M40×2	P3	L25040Q5-R	5P	250	45	-	100	30	23	26	4	4
M40×2	P3	L30040Q5-R	5P	300	45	-	100	30	23	26	4	4
M40×2	P3	L25040Q1-R	1.5P	250	45	-	100	30	23	26	4	4
M40×2	P3	L30040Q1-R	1.5P	300	45	-	100	30	23	26	4	4
M40×1.5	P3	L25040O5-R	5P	250	45	-	100	30	23	26	4	4
M40×1.5	P3	L30040O5-R	5P	300	45	-	100	30	23	26	4	4
M40×1.5	P3	L25040O1-R	1.5P	250	45	-	100	30	23	26	4	4
M40×1.5	P3	L30040O1-R	1.5P	300	45	-	100	30	23	26	4	4
M42×4.5	P4	L25042V5-S	5P	250	60	-	100	32	26	30	4	4
M42×4.5	P4	L30042V5-S	5P	300	60	-	100	32	26	30	4	4
M42×4.5	P4	L25042V1-S	1.5P	250	60	-	100	32	26	30	4	4
M42×4.5	P4	L30042V1-S	1.5P	300	60	-	100	32	26	30	4	4
M42×3	P3	L25042S5-R	5P	250	60	-	100	32	26	30	4	4
M42×3	P3	L30042S5-R	5P	300	60	-	100	32	26	30	4	4
M42×3	P3	L25042S1-R	1.5P	250	60	-	100	32	26	30	4	4
M42×3	P3	L30042S1-R	1.5P	300	60	-	100	32	26	30	4	4
M42×2	P3	L25042Q5-R	5P	250	45	-	100	32	26	30	4	4
M42×2	P3	L30042Q5-R	5P	300	45	-	100	32	26	30	4	4
M42×2	P3	L25042Q1-R	1.5P	250	45	-	100	32	26	30	4	4
M42×2	P3	L30042Q1-R	1.5P	300	45	-	100	32	26	30	4	4
M42×1.5	P3	L25042O5-R	5P	250	45	-	100	32	26	30	4	4
M42×1.5	P3	L30042O5-R	5P	300	45	-	100	32	26	30	4	4
M42×1.5	P3	L25042O1-R	1.5P	250	45	-	100	32	26	30	4	4
M42×1.5	P3	L30042O1-R	1.5P	300	45	-	100	32	26	30	4	4
M45×4.5	P4	L30045V5-S	5P	300	67	-	100	35	26	30	4	4
M45×4.5	P4	L30045V1-S	1.5P	300	67	-	100	35	26	30	4	4
M45×3	P3	L30045S5-R	5P	300	67	-	100	35	26	30	4	4
M45×3	P3	L30045S1-R	1.5P	300	67	-	100	35	26	30	4	4
M45×2	P3	L30045Q5-R	5P	300	45	-	100	35	26	30	4	4
M45×2	P3	L30045Q1-R	1.5P	300	45	-	100	35	26	30	4	4
M45×1.5	P3	L30045O5-R	5P	300	45	-	100	35	26	30	4	4
M45×1.5	P3	L30045O1-R	1.5P	300	45	-	100	35	26	30	4	4
M48×5	P4	L30048W5-S	5P	300	67	-	120	38	29	32	4	4
M48×5	P4	L30048W1-S	1.5P	300	67	-	120	38	29	32	4	4
M48×3	P3	L30048S5-R	5P	300	67	-	120	38	29	32	4	4
M48×3	P3	L30048S1-R	1.5P	300	67	-	120	38	29	32	4	4
M48×2	P3	L30048Q5-R	5P	300	45	-	120	38	29	32	4	4
M48×2	P3	L30048Q1-R	1.5P	300	45	-	120	38	29	32	4	4
M48×1.5	P3	L30048O5-R	5P	300	45	-	120	38	29	32	4	4
M48×1.5	P3	L30048O1-R	1.5P	300	45	-	120	38	29	32	4	4

More Information

ข้อมูลเพิ่มเติม
แบรนด์สินค้า	YAMAWA

การรีวิวสินค้า

เขียนรีวิวสินค้าของคุณเอง
