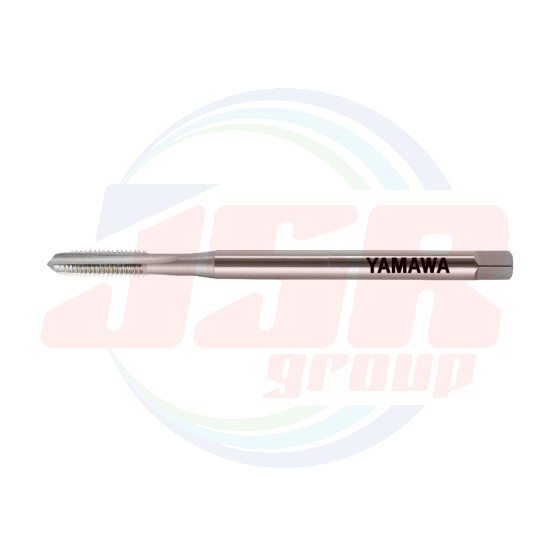

LS-HT (Whitworth Threads) | Long Shank Hand Taps | YAMAWA

ราคาต่ำสุด THB 0.00 THB 0.00 ราคาปรกติ THB 786.45
พร้อมส่ง
SKU
LS-HT (Whitworth Threads)
  •  Long shank hand taps for tapping threads in deep holes that cannot be reached with astandard overall length.
LS-HT (Whitworth Threads) | Long Shank Hand Taps | YAMAWA
LS-HT (Whitworth Threads) | Long Shank Hand Taps | YAMAWA

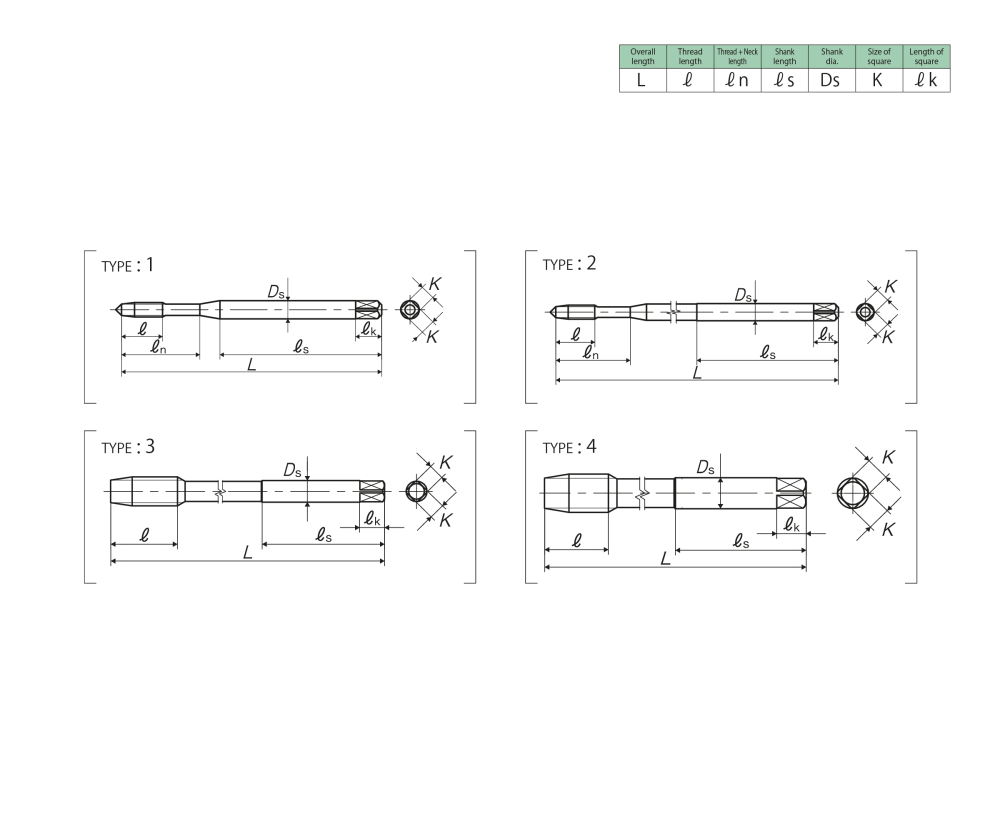

Specification



Tapping Speeds depending on Materials





Oversize

Segment:1A

Size

Class

Code

Chamfer

L

(mm)

(mm)

n

(mm)

s

(mm)

Ds

(mm)

K

(mm)

k

(mm)

No. of

flutes

TYPE

For Unified Threads

1/4-20UNC

P2

TNFQU04N515

5P

150

15

30

40

6

4.5

7

3

2

1/4-20UNC

P2

TNFQU04N520

5P

200

15

30

40

6

4.5

7

3

2

1/4-20UNC

P2

TNFQU04N115

1.5P

150

15

30

40

6

4.5

7

3

2

1/4-20UNC

P2

TNFQU04N120

1.5P

200

15

30

40

6

4.5

7

3

2

1/4-28UNF

P2

TNFQU04K515

5P

150

15

30

40

6

4.5

7

3

2

1/4-28UNF

P2

TNFQU04K520

5P

200

15

30

40

6

4.5

7

3

2

1/4-28UNF

P2

TNFQU04K115

1.5P

150

15

30

40

6

4.5

7

3

2

1/4-28UNF

P2

TNFQU04K120

1.5P

200

15

30

40

6

4.5

7

3

2

5/16-18UNC

P2

TNMQU05O515

5P

150

19

-

50

6.2

5

8

4

3

5/16-18UNC

P2

TNMQU05O520

5P

200

19

-

50

6.2

5

8

4

3

5/16-18UNC

P2

TNMQU05O115

1.5P

150

19

-

50

6.2

5

8

4

3

5/16-18UNC

P2

TNMQU05O120

1.5P

200

19

-

50

6.2

5

8

4

3

5/16-24UNF

P2

TNMQU05M515

5P

150

19

-

50

6.2

5

8

4

3

5/16-24UNF

P2

TNMQU05M520

5P

200

19

-

50

6.2

5

8

4

3

5/16-24UNF

P2

TNMQU05M115

1.5P

150

19

-

50

6.2

5

8

4

3

5/16-24UNF

P2

TNMQU05M120

1.5P

200

19

-

50

6.2

5

8

4

3

3/8-16UNC

P2

TNMQU06P515

5P

150

23

-

50

7

5.5

8

4

3

3/8-16UNC

P2

TNMQU06P520

5P

200

23

-

50

7

5.5

8

4

3

3/8-16UNC

P2

TNMQU06P115

1.5P

150

23

-

50

7

5.5

8

4

3

3/8-16UNC

P2

TNMQU06P120

1.5P

200

23

-

50

7

5.5

8

4

3

3/8-24UNF

P2

TNMQU06M515

5P

150

23

-

50

7

5.5

8

4

3

3/8-24UNF

P2

TNMQU06M520

5P

200

23

-

50

7

5.5

8

4

3

3/8-24UNF

P2

TNMQU06M115

1.5P

150

23

-

50

7

5.5

8

4

3

3/8-24UNF

P2

TNMQU06M120

1.5P

200

23

-

50

7

5.5

8

4

3

7/16-14UNC

P3

TNMRU07Q515

5P

150

26

-

50

8.5

6.5

9

4

3

7/16-14UNC

P3

TNMRU07Q520

5P

200

26

-

50

8.5

6.5

9

4

3

7/16-14UNC

P3

TNMRU07Q115

1.5P

150

26

-

50

8.5

6.5

9

4

3

7/16-20UNF

P2

TNMQU07N515

5P

150

26

-

50

8.5

6.5

9

4

3

7/16-20UNF

P2

TNMQU07N520

5P

200

26

-

50

8.5

6.5

9

4

3

7/16-20UNF

P2

TNMQU07N115

1.5P

150

26

-

50

8.5

6.5

9

4

3

7/16-20UNF

P2

TNMQU07N120

1.5P

200

26

-

50

8.5

6.5

9

4

3

1/2-13UNC

P3

TNMRU08R515

5P

150

26

-

60

10.5

8

11

4

3

1/2-13UNC

P3

TNMRU08R520

5P

200

26

-

60

10.5

8

11

4

3

1/2-13UNC

P3

TNMRU08R115

1.5P

150

26

-

60

10.5

8

11

4

3

1/2-13UNC

P3

TNMRU08R120

1.5P

200

26

-

60

10.5

8

11

4

3

1/2-20UNF

P2

TNMQU08N515

5P

150

26

-

60

10.5

8

11

4

3

1/2-20UNF

P2

TNMQU08N520

5P

200

26

-

60

10.5

8

11

4

3

1/2-20UNF

P2

TNMQU08N115

1.5P

150

26

-

60

10.5

8

11

4

3

1/2-20UNF

P2

TNMQU08N120

1.5P

200

26

-

60

10.5

8

11

4

3

9/16-18UNF

P2

TNMQU09O515

5P

150

26

-

60

12.5

10

13

4

3

9/16-18UNF

P2

TNMQU09O115

1.5P

150

26

-

60

12.5

10

13

4

3

5/8-11UNC

P3

TNMRU10U515

5P

150

26

-

60

12.5

10

13

4

3

5/8-11UNC

P3

TNMRU10U520

5P

200

26

-

60

12.5

10

13

4

3

5/8-11UNC

P3

TNMRU10U115

1.5P

150

26

-

60

12.5

10

13

4

3

5/8-11UNC

P3

TNMRU10U120

1.5P

200

26

-

60

12.5

10

13

4

3

5/8-18UNF

P2

TNMQU10O515

5P

150

26

-

60

12.5

10

13

4

3

5/8-18UNF

P2

TNMQU10O115

1.5P

150

26

-

60

12.5

10

13

4

3

3/4-10UNC

P3

TNMRU12V515

5P

150

33

-

70

15

12

15

4

4

3/4-10UNC

P3

TNMRU12V520

5P

200

33

-

70

15

12

15

4

4

3/4-10UNC

P3

TNMRU12V115

1.5P

150

33

-

70

15

12

15

4

4

3/4-10UNC

P3

TNMRU12V120

1.5P

200

33

-

70

15

12

15

4

4

3/4-16UNF

P3

TNMRU12P515

5P

150

33

-

70

15

12

15

4

4

3/4-16UNF

P3

TNMRU12P520

5P

200

33

-

70

15

12

15

4

4

3/4-16UNF

P3

TNMRU12P115

1.5P

150

33

-

70

15

12

15

4

4

3/4-16UNF

P3

TNMRU12P120

1.5P

200

33

-

70

15

12

15

4

4

7/8-9UNC

P3

TNMRU14W520

5P

200

33

-

70

17

13

16

4

4

7/8-9UNC

P3

TNMRU14W120

1.5P

200

33

-

70

17

13

16

4

4

7/8-14UNF

P3

TNMRU14Q115

1.5P

150

33

-

70

17

13

16

4

4

7/8-14UNF

P3

TNMRU14Q120

1.5P

200

33

-

70

17

13

16

4

4

1 -8UNC

P3

TNMRU16X515

5P

150

39

-

80

19

15

18

4

4

1 -8UNC

P3

TNMRU16X520

5P

200

39

-

80

19

15

18

4

4

1 -8UNC

P3

TNMRU16X525

5P

250

39

-

80

19

15

18

4

4

1 -8UNC

P3

TNMRU16X115

1.5P

150

39

-

80

19

15

18

4

4

1 -8UNC

P3

TNMRU16X120

1.5P

200

39

-

80

19

15

18

4

4

1 -8UNC

P3

TNMRU16X125

1.5P

250

39

-

80

19

15

18

4

4

1 -12UNF

P3

TNMRU16S515

5P

150

39

-

80

19

15

18

4

4

1 -12UNF

P3

TNMRU16S115

1.5P

150

39

-

80

19

15

18

4

4
