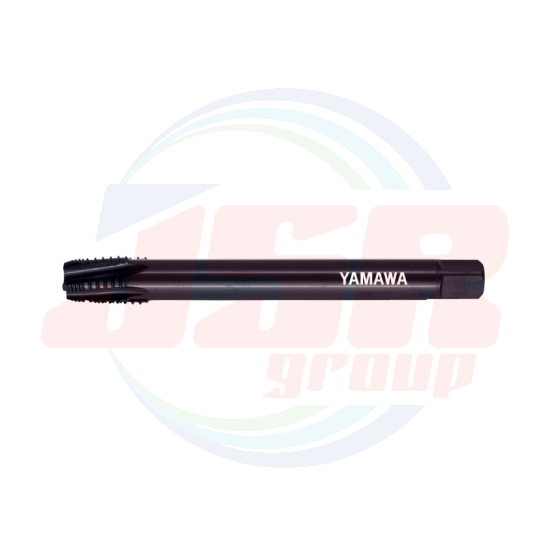

LS-INT-S-PT (Pipe Threads) | Long Shank Interrupted Taps for Taper Pipe Threads, Short (ℓg) Type | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 1,903.74
พร้อมส่ง
SKU
LS-INT-S-PT (Pipe Threads)
- LS-INT-S-PT long shank short spiral fluted tap, having low left-hand spiral flutes and having every other thread ground off, reduces cutting torque.
- LS-INT-S-PT is suitable for such sticky materials as stainless steels and chrome molybdenum steels.
Specification
Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
||||||||||||
|
PT 1/8-28 |
Ⅱ |
TIST02KL10 |
3P |
9.728 |
100 |
16.5 |
10.5 |
8 |
6 |
9 |
5 |
1 |
|
PT 1/8-28 |
Ⅱ |
TIST02KL12 |
3P |
9.728 |
120 |
16.5 |
10.5 |
8 |
6 |
9 |
5 |
1 |
|
PT 1/8-28 |
Ⅱ |
TIST02KL15 |
3P |
9.728 |
150 |
16.5 |
10.5 |
8 |
6 |
9 |
5 |
1 |
|
PT 1/4-19 |
Ⅱ |
TIST04-L10 |
3P |
13.157 |
100 |
19.5 |
12.5 |
11 |
9 |
12 |
5 |
1 |
|
PT 1/4-19 |
Ⅱ |
TIST04-L12 |
3P |
13.157 |
120 |
19.5 |
12.5 |
11 |
9 |
12 |
5 |
1 |
|
PT 1/4-19 |
Ⅱ |
TIST04-L15 |
3P |
13.157 |
150 |
19.5 |
12.5 |
11 |
9 |
12 |
5 |
1 |
|
PT 3/8-19 |
Ⅱ |
TIST06-L10 |
3P |
16.662 |
100 |
21 |
14 |
14 |
11 |
14 |
5 |
1 |
|
PT 3/8-19 |
Ⅱ |
TIST06-L12 |
3P |
16.662 |
120 |
21 |
14 |
14 |
11 |
14 |
5 |
1 |
|
PT 3/8-19 |
Ⅱ |
TIST06-L15 |
3P |
16.662 |
150 |
21 |
14 |
14 |
11 |
14 |
5 |
1 |
|
PT 1/2-14 |
Ⅱ |
TIST08QL15 |
3P |
20.955 |
150 |
27 |
17 |
18 |
14 |
17 |
5 |
1 |
|
PT 3/4-14 |
Ⅱ |
TIST12QL15 |
3P |
26.441 |
150 |
29 |
19 |
23 |
17 |
20 |
5 |
1 |
|
PT 1 -11 |
Ⅱ |
TIST16UL15 |
3P |
33.249 |
150 |
35 |
22 |
26 |
21 |
24 |
5 |
1 |
|
PT 1 -11 |
Ⅱ |
TIST16UL20 |
3P |
33.249 |
200 |
35 |
22 |
26 |
21 |
24 |
5 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
