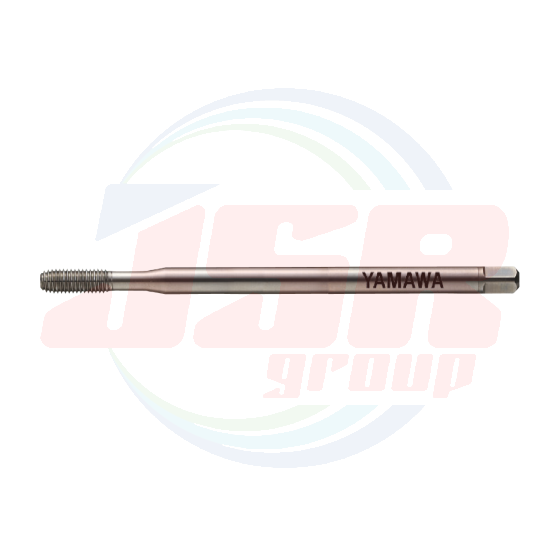

LS-N-RS | Long Shank Roll Taps for Non-Ferrous Materials | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 758.88
พร้อมส่ง
SKU
LS-N-RS
- LS-N-RS is the long shank forming tap suitable for non-ferrous materials such as aluminum castings, aluminum diecasting and brass.
Specification
Tapping Speeds depending on Materials
Recommended class
Segment：：1J
|

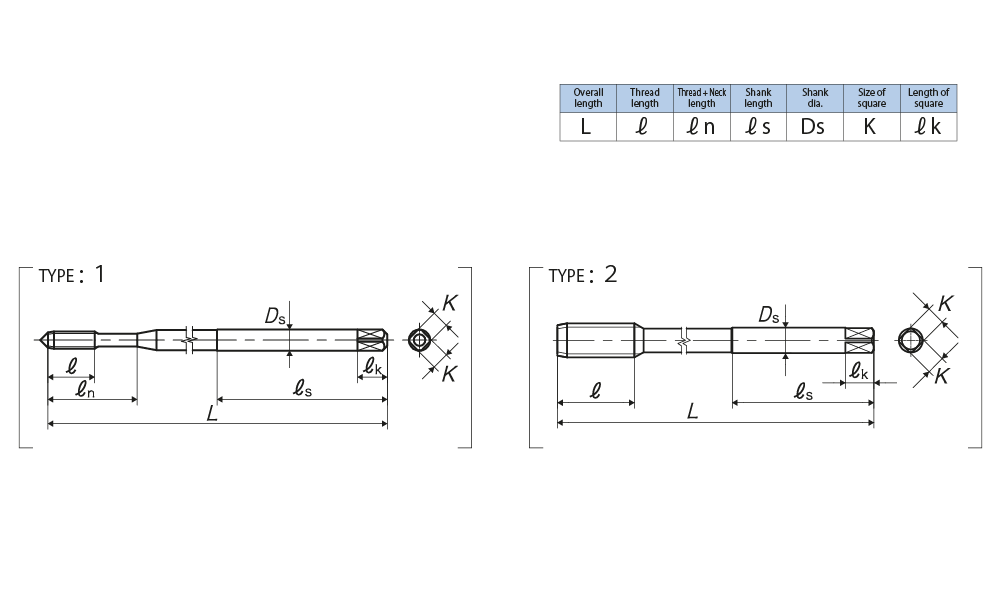

Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
Lobe |
TYPE |
|
For Metric Threads |
||||||||||||
|
M3×0.5 |
G5 |
NRSF53.0GP10 |
4P |
100 |
9 |
18 |
40 |
4 |
3.2 |
6 |
4 |
1 |
|
M3×0.5 |
G5 |
NRSF53.0GB10 |
2P |
100 |
9 |
18 |
40 |
4 |
3.2 |
6 |
4 |
1 |
|
M3×0.5 |
G6 |
NRSF63.0GP10 |
4P |
100 |
9 |
18 |
40 |
4 |
3.2 |
6 |
4 |
1 |
|
M3×0.5 |
G6 |
NRSF63.0GB10 |
2P |
100 |
9 |
18 |
40 |
4 |
3.2 |
6 |
4 |
1 |
|
M4×0.7 |
G6 |
NRSF64.0IP10 |
4P |
100 |
11 |
21 |
40 |
5 |
4 |
7 |
4 |
1 |
|
M4×0.7 |
G6 |
NRSF64.0IB10 |
2P |
100 |
11 |
21 |
40 |
5 |
4 |
7 |
4 |
1 |
|
M4×0.7 |
G7 |
NRSF74.0IP10 |
4P |
100 |
11 |
21 |
40 |
5 |
4 |
7 |
4 |
1 |
|
M4×0.7 |
G7 |
NRSF74.0IB10 |
2P |
100 |
11 |
21 |
40 |
5 |
4 |
7 |
4 |
1 |
|
M5×0.8 |
G6 |
NRSF65.0KP10 |
4P |
100 |
13 |
25 |
40 |
5.5 |
4.5 |
7 |
4 |
1 |
|
M5×0.8 |
G6 |
NRSF65.0KB10 |
2P |
100 |
13 |
25 |
40 |
5.5 |
4.5 |
7 |
4 |
1 |
|
M5×0.8 |
G7 |
NRSF75.0KP10 |
4P |
100 |
13 |
25 |
40 |
5.5 |
4.5 |
7 |
4 |
1 |
|
M5×0.8 |
G7 |
NRSF75.0KB10 |
2P |
100 |
13 |
25 |
40 |
5.5 |
4.5 |
7 |
4 |
1 |
|
M6×1 |
G7 |
NRSF76.0MP10 |
4P |
100 |
15 |
30 |
40 |
6 |
4.5 |
7 |
4 |
1 |
|
M6×1 |
G7 |
NRSF76.0MP15 |
4P |
150 |
15 |
30 |
40 |
6 |
4.5 |
7 |
4 |
1 |
|
M6×1 |
G7 |
NRSF76.0MB10 |
2P |
100 |
15 |
30 |
40 |
6 |
4.5 |
7 |
4 |
1 |
|
M6×1 |
G7 |
NRSF76.0MB15 |
2P |
150 |
15 |
30 |
40 |
6 |
4.5 |
7 |
4 |
1 |
|
M6×1 |
G8 |
NRSF86.0MP10 |
4P |
100 |
15 |
30 |
40 |
6 |
4.5 |
7 |
4 |
1 |
|
M6×1 |
G8 |
NRSF86.0MP15 |
4P |
150 |
15 |
30 |
40 |
6 |
4.5 |
7 |
4 |
1 |
|
M6×1 |
G8 |
NRSF86.0MB10 |
2P |
100 |
15 |
30 |
40 |
6 |
4.5 |
7 |
4 |
1 |
|
M6×1 |
G8 |
NRSF86.0MB15 |
2P |
150 |
15 |
30 |
40 |
6 |
4.5 |
7 |
4 |
1 |
|
M8× 1.25 |
G7 |
NRSM78.0NP10 |
4P |
100 |
19 |
- |
50 |
6.2 |
5 |
8 |
6 |
2 |
|
M8× 1.25 |
G7 |
NRSM78.0NP15 |
4P |
150 |
19 |
- |
50 |
6.2 |
5 |
8 |
6 |
2 |
|
M8× 1.25 |
G7 |
NRSM78.0NB10 |
2P |
100 |
19 |
- |
50 |
6.2 |
5 |
8 |
6 |
2 |
|
M8× 1.25 |
G7 |
NRSM78.0NB15 |
2P |
150 |
19 |
- |
50 |
6.2 |
5 |
8 |
6 |
2 |
|
M10× 1.5 |
G7 |
NRSM7010OP10 |
4P |
100 |
23 |
- |
50 |
7 |
5.5 |
8 |
6 |
2 |
|
M10× 1.5 |
G7 |
NRSM7010OP15 |
4P |
150 |
23 |
- |
50 |
7 |
5.5 |
8 |
6 |
2 |
|
M10× 1.5 |
G7 |
NRSM7010OB10 |
2P |
100 |
23 |
- |
50 |
7 |
5.5 |
8 |
6 |
2 |
|
M10× 1.5 |
G7 |
NRSM7010OB15 |
2P |
150 |
23 |
- |
50 |
7 |
5.5 |
8 |
6 |
2 |
|
M10× 1.25 |
G7 |
NRSM7010NB10 |
2P |
100 |
23 |
- |
50 |
7 |
5.5 |
8 |
6 |
2 |
|
M10× 1.25 |
G7 |
NRSM7010NB15 |
2P |
150 |
23 |
- |
50 |
7 |
5.5 |
8 |
6 |
2 |
Number of oil grooves : 1
For M6 and smaller, external centers of 2P chamfer taps are removed.
