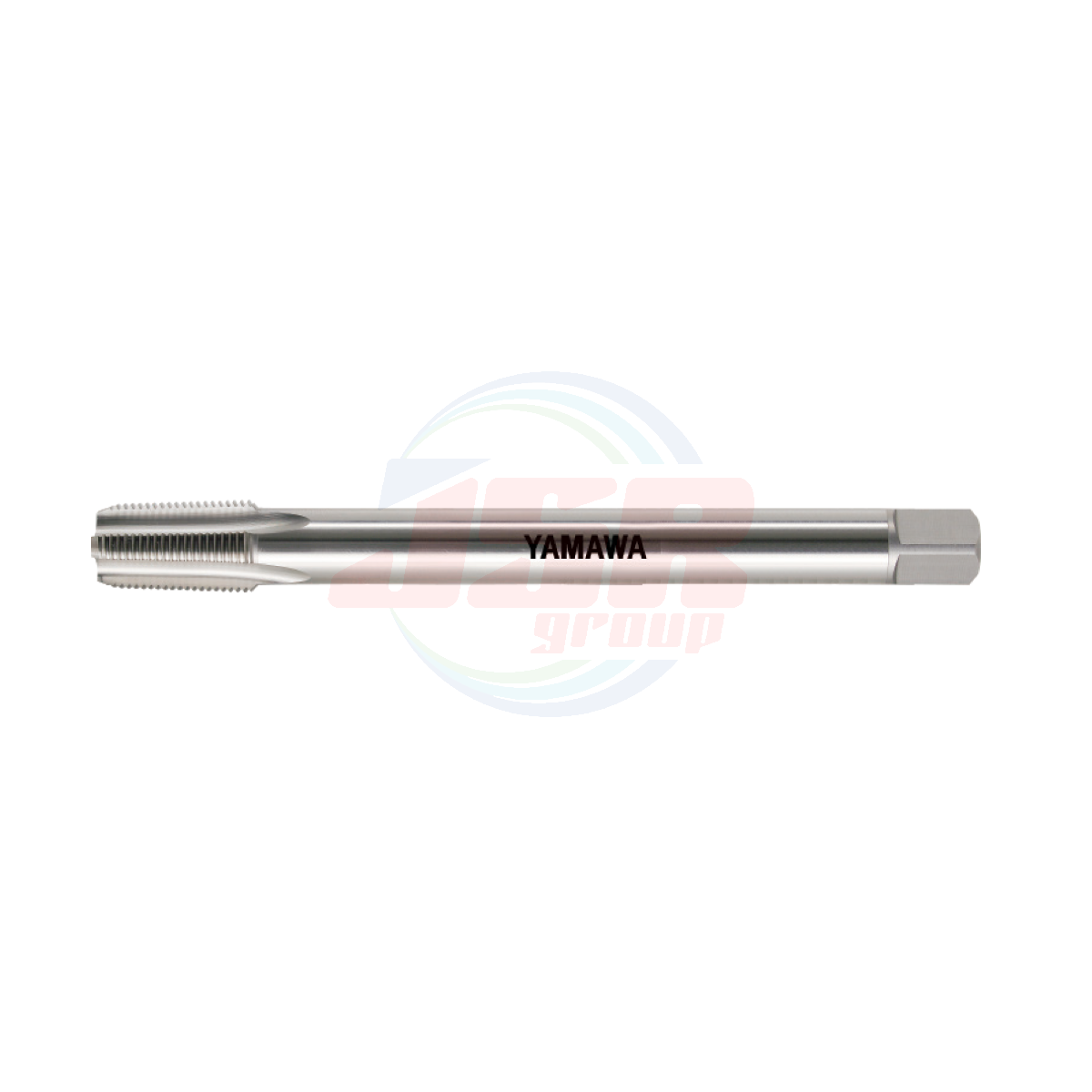

LS-NPTF 1/16-27 (TNTF01LL10) | Long Shank Hand Taps for American Dryseal Taper Pipe Threads | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 1,903.74
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
TNTF01LL10
QTY:
5
- The LS-NPTF is a long shank hand tap for the American dry seal tapered pipe threads and is used for products whose main purpose is to withstand screw threads in connection with parts for pipes.
Specification
Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For American Pipe Threads |
||||||||||||
|
1/16-27 NPTF |
ANSI G |
TNTF01LL10 |
3P |
7.770 |
100 |
17 |
12 |
8 |
6 |
9 |
4 |
1 |
|
1/16-27 NPTF |
ANSI G |
TNTF01LL15 |
3P |
7.770 |
150 |
17 |
12 |
8 |
6 |
9 |
4 |
1 |
|
1/8-27 NPTF |
ANSI G |
TNTF02LL10 |
3P |
10.117 |
100 |
19 |
12.05 |
8 |
6 |
9 |
4 |
2 |
|
1/8-27 NPTF |
ANSI G |
TNTF02LL15 |
3P |
10.117 |
150 |
19 |
12.05 |
8 |
6 |
9 |
4 |
2 |
|
1/4-18 NPTF |
ANSI G |
TNTF04OL10 |
3P |
13.426 |
100 |
28 |
17.45 |
11 |
9 |
12 |
4 |
2 |
|
1/4-18 NPTF |
ANSI G |
TNTF04OL15 |
3P |
13.426 |
150 |
28 |
17.45 |
11 |
9 |
12 |
4 |
2 |
|
3/8-18 NPTF |
ANSI G |
TNTF06OL10 |
3P |
16.866 |
100 |
28 |
17.65 |
14 |
11 |
14 |
4 |
2 |
|
3/8-18 NPTF |
ANSI G |
TNTF06OL15 |
3P |
16.866 |
150 |
28 |
17.65 |
14 |
11 |
14 |
4 |
2 |
|
1/2-14 NPTF |
ANSI G |
TNTF08QL15 |
3P |
20.980 |
150 |
35 |
22.85 |
18 |
14 |
17 |
4 |
2 |
|
3/4-14 NPTF |
ANSI G |
TNTF12QL15 |
3P |
26.325 |
150 |
35 |
22.95 |
23 |
17 |
20 |
4 |
2 |
|
1 -11 1/2 NPTF |
ANSI G |
TNTF16TL15 |
3P |
32.934 |
150 |
45 |
27.4 |
26 |
21 |
24 |
5 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | 1/16-27 (TNTF01LL10) |
| Model | LS-NPTF |
| Size | 1/16-27 |
| Class | ANSI G |
| Chamfer | 3P |
| Overall length (L) | 100 |
| Thread length (ℓ) | 17 |
| Shank dia. (Ds) | 8 |
| Size of Square (K) | 6 |
| Length of square (ℓk) | 9 |
