LS-PF (Pipe Threads)
- The LS-PF is a long shank hand tap for parallel pipe threads and is used for tapping products whose main purpose is to connect mechanical parts such as pipe parts. The PF internal thread is used for fitting with the PF external thread.

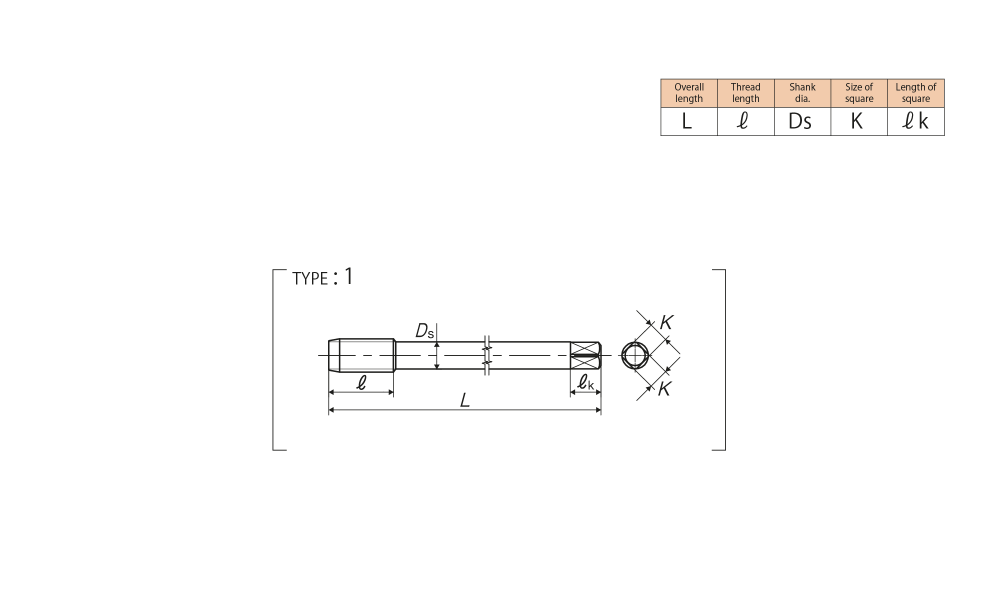

Specification

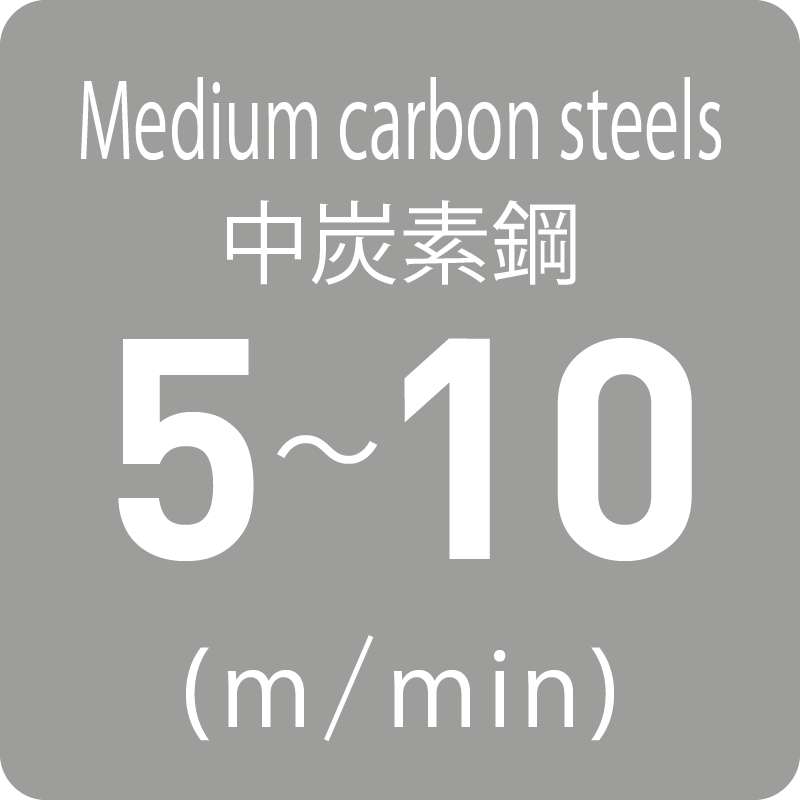

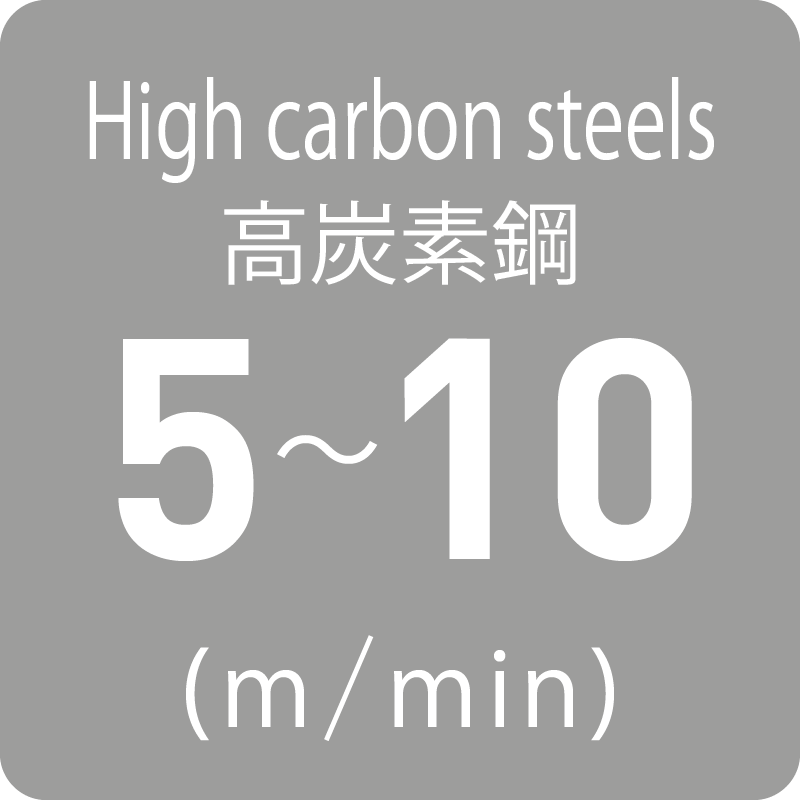

Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
|||||||||||
|
PF 1/8-28 |
Ⅱ |
L10F02K |
3.5P |
9.728 |
100 |
19 |
8 |
6 |
9 |
4 |
1 |
|
PF 1/8-28 |
Ⅱ |
L15F02K |
3.5P |
9.728 |
150 |
19 |
8 |
6 |
9 |
4 |
1 |
|
PF 1/8-28 |
Ⅱ |
L20F02K |
3.5P |
9.728 |
200 |
19 |
8 |
6 |
9 |
4 |
1 |
|
PF 1/4-19 |
Ⅱ |
L10F04- |
3.5P |
13.157 |
100 |
28 |
11 |
9 |
12 |
4 |
1 |
|
PF 1/4-19 |
Ⅱ |
L15F04- |
3.5P |
13.157 |
150 |
28 |
11 |
9 |
12 |
4 |
1 |
|
PF 1/4-19 |
Ⅱ |
L20F04- |
3.5P |
13.157 |
200 |
28 |
11 |
9 |
12 |
4 |
1 |
|
PF 3/8-19 |
Ⅱ |
L10F06- |
3.5P |
16.662 |
100 |
28 |
14 |
11 |
14 |
4 |
1 |
|
PF 3/8-19 |
Ⅱ |
L15F06- |
3.5P |
16.662 |
150 |
28 |
14 |
11 |
14 |
4 |
1 |
|
PF 3/8-19 |
Ⅱ |
L20F06- |
3.5P |
16.662 |
200 |
28 |
14 |
11 |
14 |
4 |
1 |
|
PF 1/2-14 |
Ⅱ |
L15F08Q |
3.5P |
20.955 |
150 |
35 |
18 |
14 |
17 |
4 |
1 |
|
PF 1/2-14 |
Ⅱ |
L20F08Q |
3.5P |
20.955 |
200 |
35 |
18 |
14 |
17 |
4 |
1 |
|
PF 3/4-14 |
Ⅱ |
L15F12Q |
3.5P |
26.441 |
150 |
35 |
23 |
17 |
20 |
4 |
1 |
|
PF 3/4-14 |
Ⅱ |
L20F12Q |
3.5P |
26.441 |
200 |
35 |
23 |
17 |
20 |
4 |
1 |
|
PF 1 -11 |
Ⅱ |
L15F16U |
3.5P |
33.249 |
150 |
45 |
26 |
21 |
24 |
4 |
1 |
|
PF 1 -11 |
Ⅱ |
L20F16U |
3.5P |
33.249 |
200 |
45 |
26 |
21 |
24 |
4 |
1 |
|
PF 1 1/4-11 |
Ⅱ |
L20F20U |
3.5P |
41.910 |
200 |
45 |
32 |
26 |
30 |
4 |
1 |
|
PF 1 1/2-11 |
Ⅱ |
L20F24U |
3.5P |
47.803 |
200 |
45 |
38 |
29 |
32 |
6 |
1 |
|
PF 2 -11 |
Ⅱ |
L20F32U |
3.5P |
59.614 |
200 |
50 |
46 |
35 |
38 |
6 |
1 |
