Product Features
- Long shank spiral pointed tap suitable for high hardness steels of 25 ～ 45HRC such as forgings and thermal refined steels of high carbon steels and alloy steels, and die steel. Through hole use.
Specification
Tapping Speeds depending on Materials
25〜35HRC 35〜45HRC
Segment：1F
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |

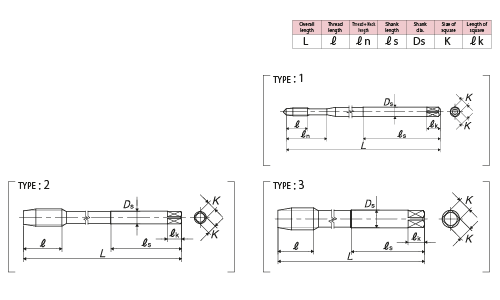

TYPE |
|
For Metric Threads |
||||||||||||
|
M3×0.5 |
P3 |
P43.0GRDPBE |
5.5P |
100 |
9 |
18 |
40 |
4 |
3.2 |
6 |
3 |
1 |
|
M4×0.7 |
P3 |
P44.0IRDPBE |
5.5P |
100 |
11 |
21 |
40 |
5 |
4 |
7 |
3 |
1 |
|
M5×0.8 |
P3 |
P45.0KRDPBE |
5.5P |
100 |
13 |
25 |
40 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P3 |
P46.0MRDPBE |
5.5P |
100 |
15 |
30 |
40 |
6 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P3 |
P46.0MRDPBG |
5.5P |
150 |
15 |
30 |
40 |
6 |
4.5 |
7 |
3 |
1 |
|
M8×1.25 |
P4 |
PY8.0NSDPBE |
5.5P |
100 |
19 |
- |
50 |
6.2 |
5 |
8 |
3 |
2 |
|
M8×1.25 |
P4 |
PY8.0NSDPBG |
5.5P |
150 |
19 |
- |
50 |
6.2 |
5 |
8 |
3 |
2 |
|
M10×1.5 |
P4 |
PY010OSDPBG |
5.5P |
150 |
23 |
- |
50 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1.25 |
P4 |
PY010NSDPBG |
5.5P |
150 |
23 |
- |
50 |
7 |
5.5 |
8 |
3 |
2 |
|
M12×1.75 |
P4 |
PY012PSDPBG |
5.5P |
150 |
26 |
- |
50 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.5 |
P4 |
PY012OSDPBG |
5.5P |
150 |
26 |
- |
50 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.25 |
P4 |
PY012NSDPBG |
5.5P |
150 |
26 |
- |
50 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M14×2 |
P5 |
PY014QTDPBG |
5.5P |
150 |
26 |
- |
60 |
10.5 |
8 |
11 |
3 |
2 |
|
M14×1.5 |
P4 |
PY014OSDPBG |
5.5P |
150 |
26 |
- |
60 |
10.5 |
8 |
11 |
3 |
2 |
|
M16×2 |
P5 |
PY016QTDPBG |
5.5P |
150 |
26 |
- |
60 |
12.5 |
10 |
13 |
3 |
2 |
|
M16×1.5 |
P4 |
PY016OSDPBG |
5.5P |
150 |
26 |
- |
60 |
12.5 |
10 |
13 |
3 |
2 |
|
M18×2.5 |
P5 |
PY018RTDPBG |
5.5P |
150 |
33 |
- |
70 |
14 |
11 |
14 |
3 |
2 |
|
M18×1.5 |
P4 |
PY018OSDPBG |
5.5P |
150 |
33 |
- |
70 |
14 |
11 |
14 |
3 |
2 |
|
M20×2.5 |
P5 |
PY020RTDPBG |
5.5P |
150 |
33 |
- |
70 |
15 |
12 |
15 |
3 |
3 |
|
M20×1.5 |
P4 |
PY020OSDPBG |
5.5P |
150 |
33 |
- |
70 |
15 |
12 |
15 |
3 |
3 |
|
M22×2.5 |
P5 |
PY022RTDPBK |
5.5P |
200 |
33 |
- |
70 |
17 |
13 |
16 |
3 |
3 |
|
M22×1.5 |
P4 |
PY022OSDPBK |
5.5P |
200 |
33 |
- |
70 |
17 |
13 |
16 |
3 |
3 |
|
M24×3 |
P5 |
PY024STDPBK |
5.5P |
200 |
39 |
- |
80 |
19 |
15 |
18 |
3 |
3 |
|
M24×1.5 |
P4 |
PY024OSDPBK |
5.5P |
200 |
39 |
- |
80 |
19 |
15 |
18 |
3 |
3 |
|
M27×3 |
P5 |
PY027STDPBK |
5.5P |
200 |
39 |
- |
80 |
20 |
15 |
18 |
4 |
3 |
|
M27×1.5 |
P4 |
PY027OSDPBK |
5.5P |
200 |
39 |
- |
80 |
20 |
15 |
18 |
4 |
3 |
|
M30×3.5 |
P5 |
PY030TTDPBK |
5.5P |
200 |
46 |
- |
80 |
23 |
17 |
20 |
4 |
3 |
|
M30×1.5 |
P4 |
PY030OSDPBK |
5.5P |
200 |
46 |
- |
80 |
23 |
17 |
20 |
4 |
3 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | M24x3 (PY024STDPBK) |
| Model | LS-PM-PO |
| Size | M24X3 |
| Class | P5 |
| Chamfer | 5.5P |
| Long shank | L200 |
| Overall length (L) | 200 |
| Thread length (ℓ) | 39 |
| Thread + Neck length (ℓn) | - |
| Shank length (ℓs) | 80 |
| Shank dia. (Ds) | 19 |
| Size of Square (K) | 15 |
| Length of square (ℓk) | 18 |
