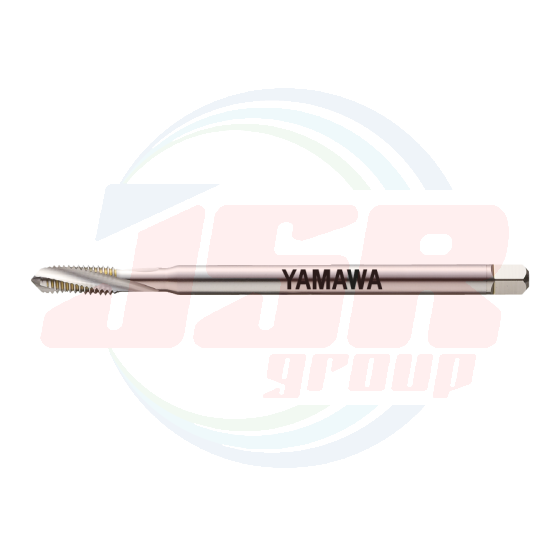

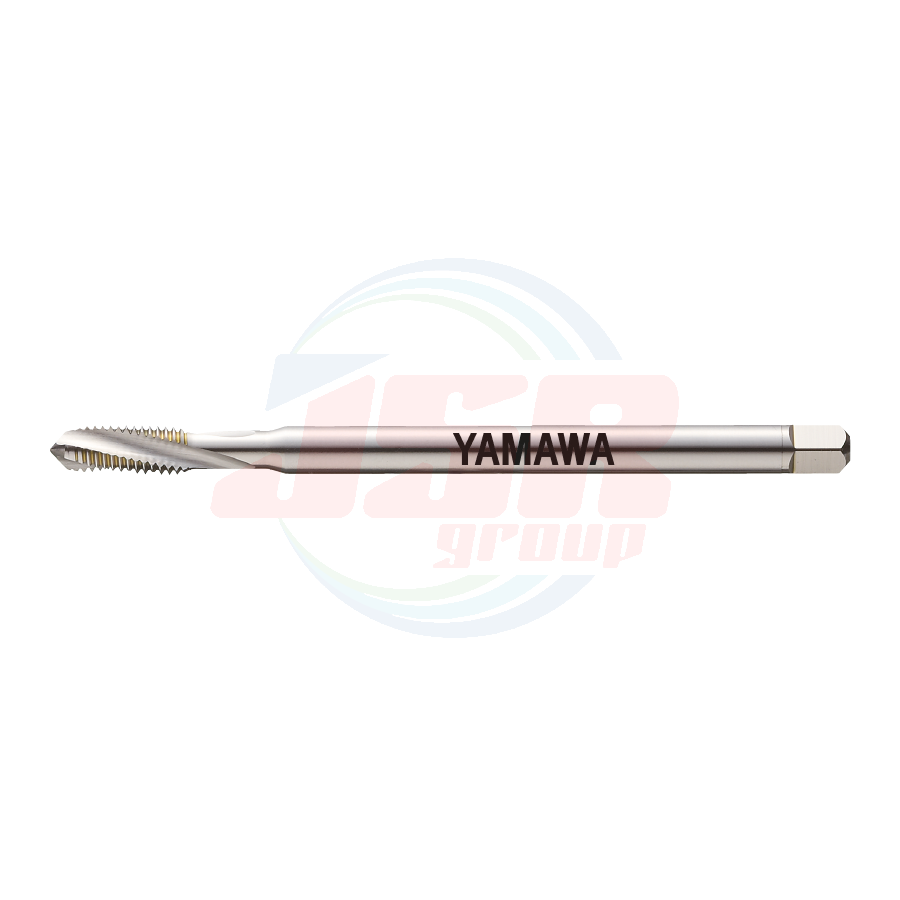

LS-PM-SP (Metric Threads) | Long Shank Spiral Fluted Taps for Hard-to-Machine Materials | YAMAWA
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 6,472.43
พร้อมส่ง
SKU
LS-PM-SP Metric Threads
Product Features
- Long shank spiral fluted tap suitable for tapping hard steels with hardness between 25-45HRC such as forgings and thermal refined steels of high carbon steels and alloy steels, and mold steels.
Specification
Tapping Speeds depending on Materials
25〜35HRC 35〜45HRC
Segment：1C
|

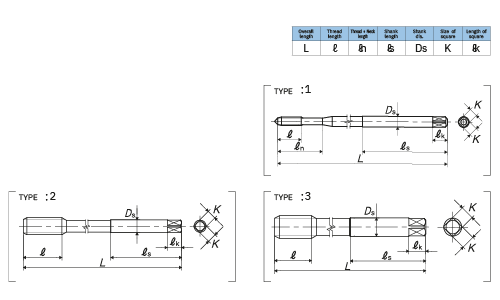

Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M3×0.5 |
P3 |
S43.0GRDPBE |
2.75P |
100 |
9 |
18 |
40 |
4 |
3.2 |
6 |
3 |
1 |
|
M4×0.7 |
P3 |
S44.0IRDPBE |
2.75P |
100 |
11 |
21 |
40 |
5 |
4 |
7 |
3 |
1 |
|
M5×0.8 |
P3 |
S45.0KRDPBE |
2.75P |
100 |
13 |
25 |
40 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P3 |
S46.0MRDPBE |
2.75P |
100 |
15 |
30 |
40 |
6 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P3 |
S46.0MRDPBG |
2.75P |
150 |
15 |
30 |
40 |
6 |
4.5 |
7 |
3 |
1 |
|
M8×1.25 |
P3 |
SY8.0NRDPBE |
2.75P |
100 |
19 |
- |
50 |
6.2 |
5 |
8 |
3 |
2 |
|
M8×1.25 |
P3 |
SY8.0NRDPBG |
2.75P |
150 |
19 |
- |
50 |
6.2 |
5 |
8 |
3 |
2 |
|
M10×1.5 |
P3 |
SY010ORDPBG |
2.75P |
150 |
23 |
- |
50 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1.25 |
P3 |
SY010NRDPBG |
2.75P |
150 |
23 |
- |
50 |
7 |
5.5 |
8 |
3 |
2 |
|
M12×1.75 |
P3 |
SY012PRDPBG |
2.75P |
150 |
26 |
- |
50 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.5 |
P3 |
SY012ORDPBG |
2.75P |
150 |
26 |
- |
50 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.25 |
P4 |
SY012NSDPBG |
2.75P |
150 |
26 |
- |
50 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M14×2 |
P4 |
SY014QSDPBG |
2.75P |
150 |
26 |
- |
60 |
10.5 |
8 |
11 |
3 |
2 |
|
M14×1.5 |
P3 |
SY014ORDPBG |
2.75P |
150 |
26 |
- |
60 |
10.5 |
8 |
11 |
3 |
2 |
|
M16×2 |
P4 |
SY016QSDPBG |
2.75P |
150 |
26 |
- |
60 |
12.5 |
10 |
13 |
3 |
2 |
|
M16×1.5 |
P3 |
SY016ORDPBG |
2.75P |
150 |
26 |
- |
60 |
12.5 |
10 |
13 |
3 |
2 |
|
M18×2.5 |
P4 |
SY018RSDPBG |
2.75P |
150 |
33 |
- |
70 |
14 |
11 |
14 |
4 |
2 |
|
M18×1.5 |
P4 |
SY018OSDPBG |
2.75P |
150 |
33 |
- |
70 |
14 |
11 |
14 |
4 |
2 |
|
M20×2.5 |
P4 |
SY020RSDPBG |
2.75P |
150 |
33 |
- |
70 |
15 |
12 |
15 |
4 |
3 |
|
M20×1.5 |
P4 |
SY020OSDPBG |
2.75P |
150 |
33 |
- |
70 |
15 |
12 |
15 |
4 |
3 |
|
M22×2.5 |
P4 |
SY022RSDPBK |
2.75P |
200 |
33 |
- |
70 |
17 |
13 |
16 |
4 |
3 |
|
M22×1.5 |
P4 |
SY022OSDPBK |
2.75P |
200 |
33 |
- |
70 |
17 |
13 |
16 |
4 |
3 |
|
M24×3 |
P4 |
SY024SSDPBK |
2.75P |
200 |
39 |
- |
80 |
19 |
15 |
18 |
4 |
3 |
|
M24×1.5 |
P4 |
SY024OSDPBK |
2.75P |
200 |
39 |
- |
80 |
19 |
15 |
18 |
4 |
3 |
|
M27×3 |
P4 |
SY027SSDPBK |
2.75P |
200 |
39 |
- |
80 |
20 |
15 |
18 |
4 |
3 |
|
M27×1.5 |
P4 |
SY027OSDPBK |
2.75P |
200 |
39 |
- |
80 |
20 |
15 |
18 |
4 |
3 |
|
M30×3.5 |
P4 |
SY030TSDPBK |
2.75P |
200 |
46 |
- |
80 |
23 |
17 |
20 |
4 |
3 |
|
M30×1.5 |
P4 |
SY030OSDPBK |
2.75P |
200 |
46 |
- |
80 |
23 |
17 |
20 |
4 |
3 |
