Product Features
- Long shank coated spiral fluted taps for tapping threads in deep holes that cannot be reached with a standard overall length.
Specification
Tapping Speeds depending on Materials
Segment：1ESegment：
|

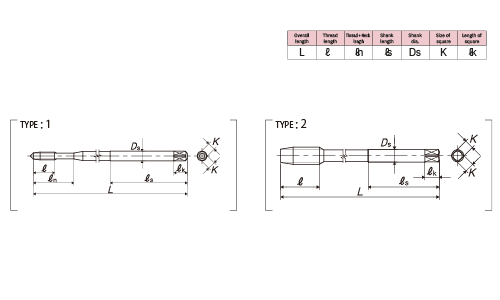

Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M3×0.5 |
P2 |
VPOFQ3.0GL10 |
5P |
100 |
9 |
18 |
40 |
4 |
3.2 |
6 |
3 |
1 |
|
M4×0.7 |
P2 |
VPOFQ4.0IL10 |
5P |
100 |
11 |
21 |
40 |
5 |
4 |
7 |
3 |
1 |
|
M5×0.8 |
P2 |
VPOFQ5.0KL10 |
5P |
100 |
13 |
25 |
40 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P2 |
VPOFQ6.0ML10 |
5P |
100 |
15 |
30 |
40 |
6 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P2 |
VPOFQ6.0ML15 |
5P |
150 |
15 |
30 |
40 |
6 |
4.5 |
7 |
3 |
1 |
|
M8×1.25 |
P3 |
VPOR8.0NL10 |
5P |
100 |
19 |
- |
50 |
6.2 |
5 |
8 |
3 |
2 |
|
M8×1.25 |
P3 |
VPOR8.0NL15 |
5P |
150 |
19 |
- |
50 |
6.2 |
5 |
8 |
3 |
2 |
|
M10×1.5 |
P3 |
VPOR010OL15 |
5P |
150 |
23 |
- |
50 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1.25 |
P3 |
VPOR010NL15 |
5P |
150 |
23 |
- |
50 |
7 |
5.5 |
8 |
3 |
2 |
|
M12×1.75 |
P4 |
VPOS012PL15 |
5P |
150 |
26 |
- |
50 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.5 |
P3 |
VPOR012OL15 |
5P |
150 |
26 |
- |
50 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.25 |
P4 |
VPOS012NL15 |
5P |
150 |
26 |
- |
50 |
8.5 |
6.5 |
9 |
3 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | M10x1.5 (VPOR010OL15) |
| Model | LS-PO V |
| Size | M10X1.5 |
| Class | P3 |
| Chamfer | 5P |
| Long shank | L150 |
| Overall length (L) | 150 |
| Thread length (ℓ) | 23 |
| Thread + Neck length (ℓn) | - |
| Shank length (ℓs) | 50 |
| Shank dia. (Ds) | 7 |
| Size of Square (K) | 5.5 |
| Length of square (ℓk) | 8 |
