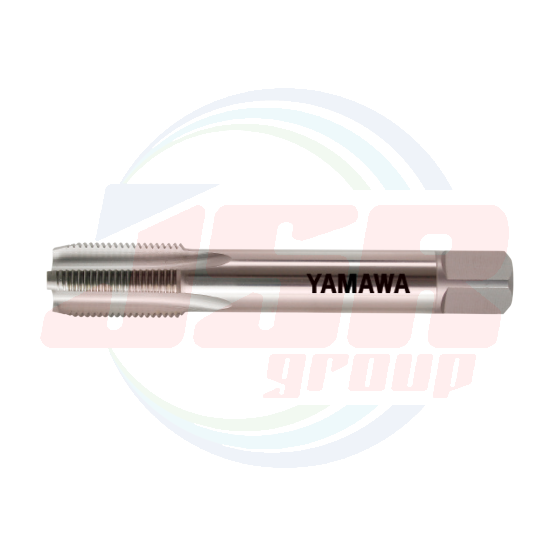

LS-PS (Pipe Threads) | Long Shank Hand Taps for Parallel Pipe Threads | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 900.93
พร้อมส่ง
SKU
LS-PS (Pipe Threads)
- The LS-PS is a long shank tap for parallel pipe threads and is used for products whose main purpose is the tightness of the threaded part in connection with parts for pipes. The PS internal thread is used for fitting with PT external thread.

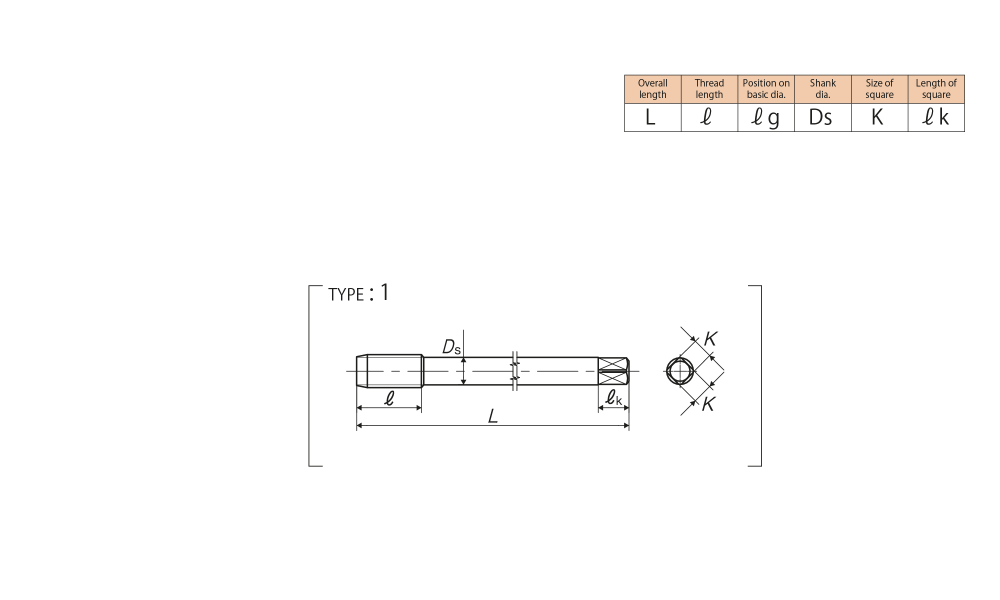

Specification
Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
|||||||||||
|
PS 1/8-28 |
Ⅱ |
L10P02K |
3.5P |
9.728 |
100 |
19 |
8 |
6 |
9 |
4 |
1 |
|
PS 1/8-28 |
Ⅱ |
L15P02K |
3.5P |
9.728 |
150 |
19 |
8 |
6 |
9 |
4 |
1 |
|
PS 1/8-28 |
Ⅱ |
L20P02K |
3.5P |
9.728 |
200 |
19 |
8 |
6 |
9 |
4 |
1 |
|
PS 1/4-19 |
Ⅱ |
L10P04- |
3.5P |
13.157 |
100 |
28 |
11 |
9 |
12 |
4 |
1 |
|
PS 1/4-19 |
Ⅱ |
L15P04- |
3.5P |
13.157 |
150 |
28 |
11 |
9 |
12 |
4 |
1 |
|
PS 1/4-19 |
Ⅱ |
L20P04- |
3.5P |
13.157 |
200 |
28 |
11 |
9 |
12 |
4 |
1 |
|
PS 3/8-19 |
Ⅱ |
L10P06- |
3.5P |
16.662 |
100 |
28 |
14 |
11 |
14 |
4 |
1 |
|
PS 3/8-19 |
Ⅱ |
L15P06- |
3.5P |
16.662 |
150 |
28 |
14 |
11 |
14 |
4 |
1 |
|
PS 3/8-19 |
Ⅱ |
L20P06- |
3.5P |
16.662 |
200 |
28 |
14 |
11 |
14 |
4 |
1 |
|
PS 1/2-14 |
Ⅱ |
L15P08Q |
3.5P |
20.955 |
150 |
35 |
18 |
14 |
17 |
4 |
1 |
|
PS 1/2-14 |
Ⅱ |
L20P08Q |
3.5P |
20.955 |
200 |
35 |
18 |
14 |
17 |
4 |
1 |
|
PS 3/4-14 |
Ⅱ |
L15P12Q |
3.5P |
26.441 |
150 |
35 |
23 |
17 |
20 |
4 |
1 |
|
PS 3/4-14 |
Ⅱ |
L20P12Q |
3.5P |
26.441 |
200 |
35 |
23 |
17 |
20 |
4 |
1 |
|
PS 1 -11 |
Ⅱ |
L15P16U |
3.5P |
33.249 |
150 |
45 |
26 |
21 |
24 |
5 |
1 |
|
PS 1 -11 |
Ⅱ |
L20P16U |
3.5P |
33.249 |
200 |
45 |
26 |
21 |
24 |
5 |
1 |
|
PS 1 1/4-11 |
Ⅱ |
L20P20U |
3.5P |
41.910 |
200 |
45 |
32 |
26 |
30 |
5 |
1 |
|
PS 1 1/2-11 |
Ⅱ |
L20P24U |
3.5P |
47.803 |
200 |
45 |
38 |
29 |
32 |
6 |
1 |
