LS-SP-PF (Pipe Threads) | Long Shank Spiral Fluted Taps for Parallel Pipe Threads | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 991.59
พร้อมส่ง
SKU
LS-SP-PF (Pipe Threads)
- The LS-SP-PF is a long shank spiral flute tap for parallel pipe threads and is used for tapping of products whose main purpose is to connect mechanical parts such as pipe parts.
- The PF internal thread is used for fitting with the PF external thread.
Specification

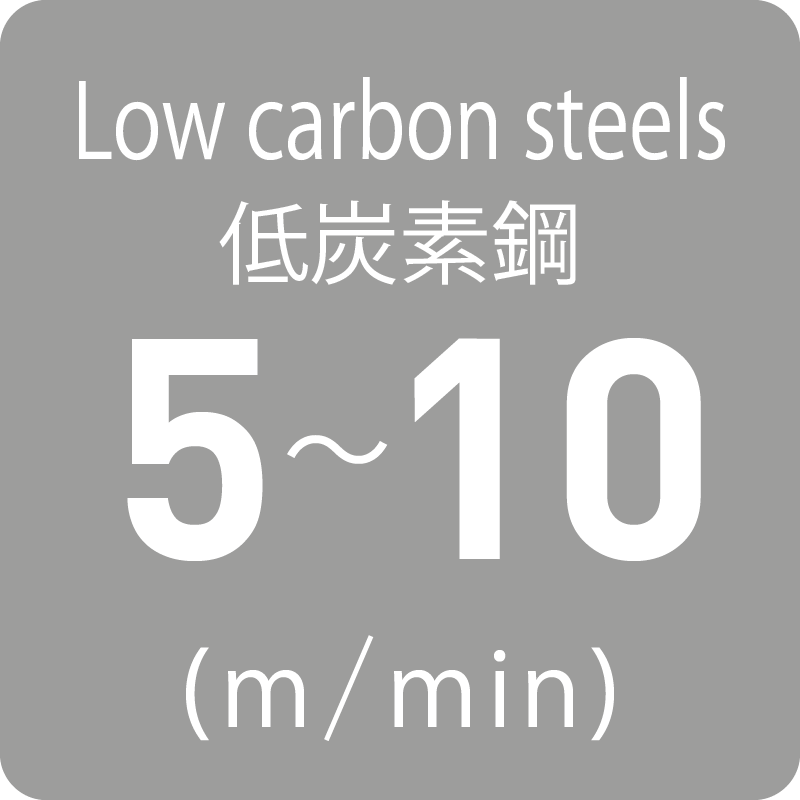

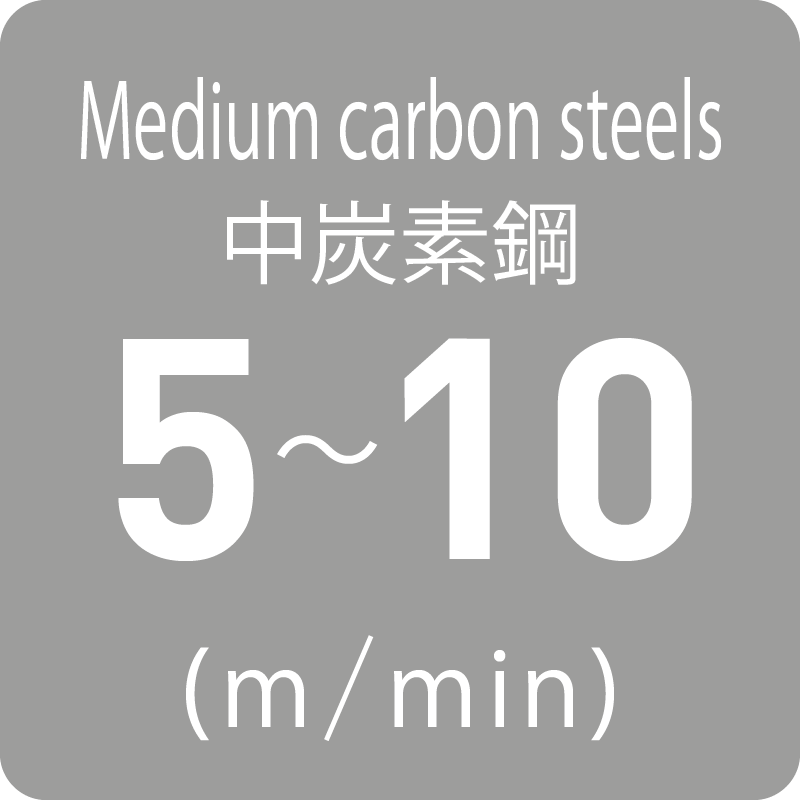

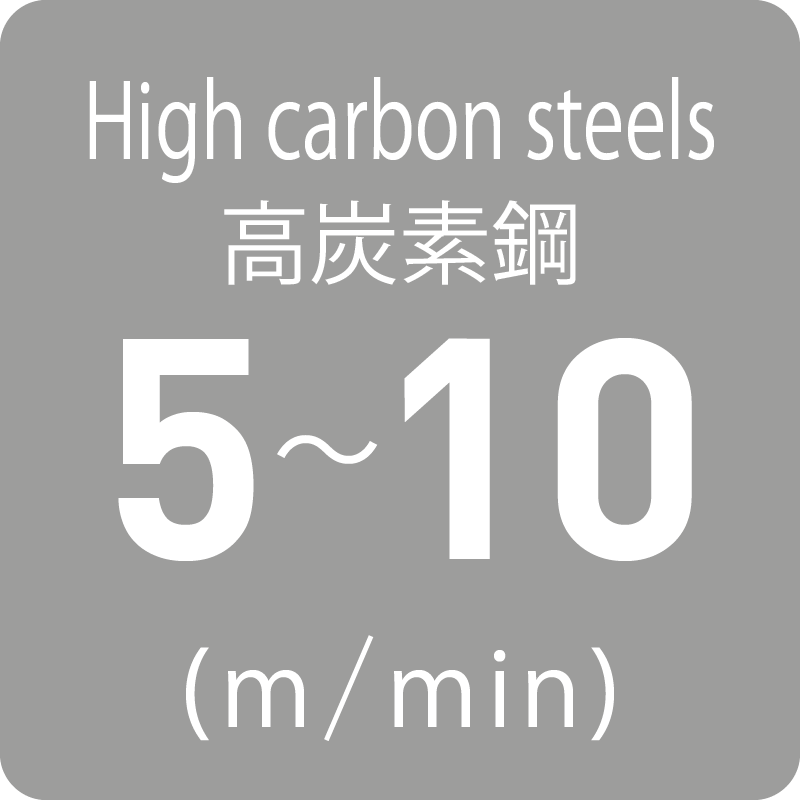

Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |

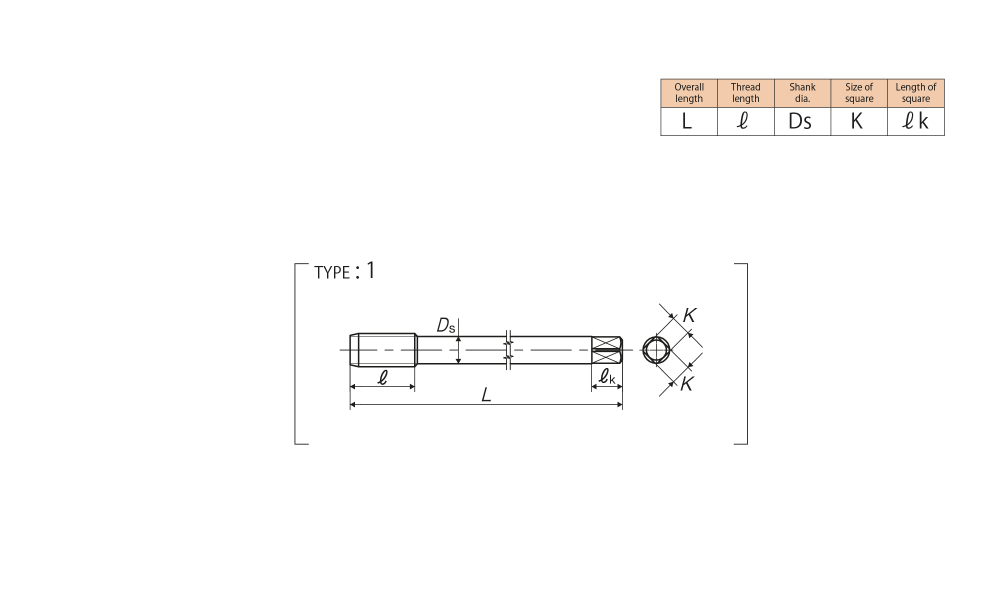

TYPE |
|
For Pipe Threads |
|||||||||||
|
PF 1/8-28 |
Ⅱ |
SH2F02KL10 |
2.5P |
9.728 |
100 |
19 |
8 |
6 |
9 |
3 |
1 |
|
PF 1/8-28 |
Ⅱ |
SH2F02KL12 |
2.5P |
9.728 |
120 |
19 |
8 |
6 |
9 |
3 |
1 |
|
PF 1/8-28 |
Ⅱ |
SH2F02KL15 |
2.5P |
9.728 |
150 |
19 |
8 |
6 |
9 |
3 |
1 |
|
PF 1/4-19 |
Ⅱ |
SH2F04-L10 |
2.5P |
13.157 |
100 |
28 |
11 |
9 |
12 |
3 |
1 |
|
PF 1/4-19 |
Ⅱ |
SH2F04-L12 |
2.5P |
13.157 |
120 |
28 |
11 |
9 |
12 |
3 |
1 |
|
PF 1/4-19 |
Ⅱ |
SH2F04-L15 |
2.5P |
13.157 |
150 |
28 |
11 |
9 |
12 |
3 |
1 |
|
PF 3/8-19 |
Ⅱ |
SH2F06-L10 |
2.5P |
16.662 |
100 |
28 |
14 |
11 |
14 |
3 |
1 |
|
PF 3/8-19 |
Ⅱ |
SH2F06-L12 |
2.5P |
16.662 |
120 |
28 |
14 |
11 |
14 |
3 |
1 |
|
PF 3/8-19 |
Ⅱ |
SH2F06-L15 |
2.5P |
16.662 |
150 |
28 |
14 |
11 |
14 |
3 |
1 |
|
PF 1/2-14 |
Ⅱ |
SH2F08QL15 |
2.5P |
20.955 |
150 |
35 |
18 |
14 |
17 |
4 |
1 |
|
PF 3/4-14 |
Ⅱ |
SH2F12QL15 |
2.5P |
26.441 |
150 |
35 |
23 |
17 |
20 |
4 |
1 |
|
PF 1 -11 |
Ⅱ |
SH2F16UL15 |
2.5P |
33.249 |
150 |
45 |
26 |
21 |
24 |
4 |
1 |
|
PF 1 -11 |
Ⅱ |
SH2F16UL20 |
2.5P |
33.249 |
200 |
45 |
26 |
21 |
24 |
4 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
