LS-SP-PS (Pipe Threads)| Hand Tap for Parallel Pipe Threads in Cast Irons | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 991.59
พร้อมส่ง
SKU
LS-SP-PS (Pipe Threads)

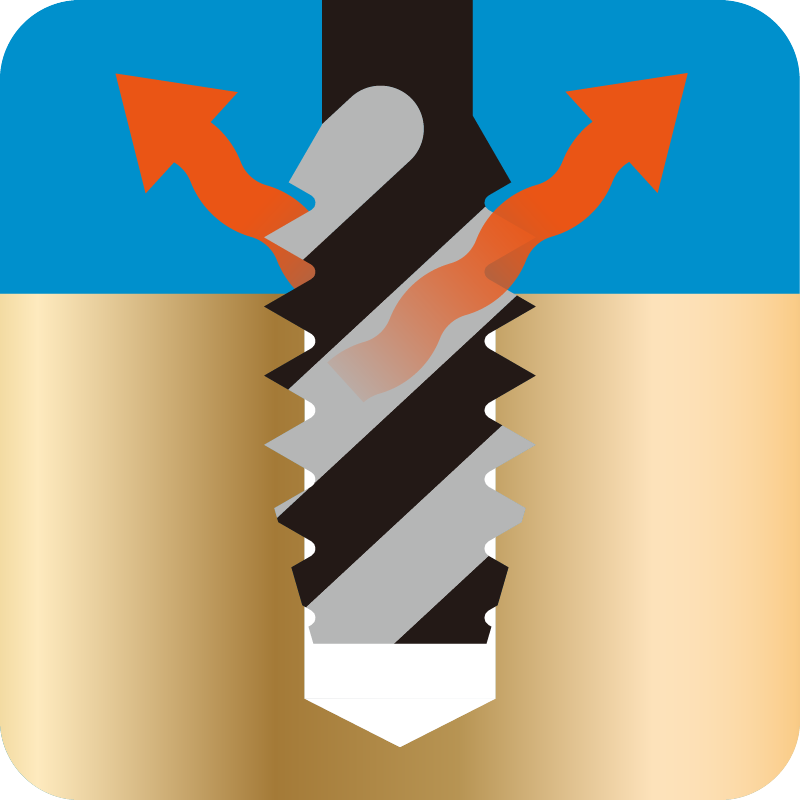

- The LS-SP-PS is a long shank spiral flute tap for parallel pipe threads and is used for products whose main purpose is the tightness of the threaded portion in connection with pipe parts etc. The PS internal thread is used for fitting with PT external thread.
Specification
Tapping Speeds depending on Materials
Segment：1G
|

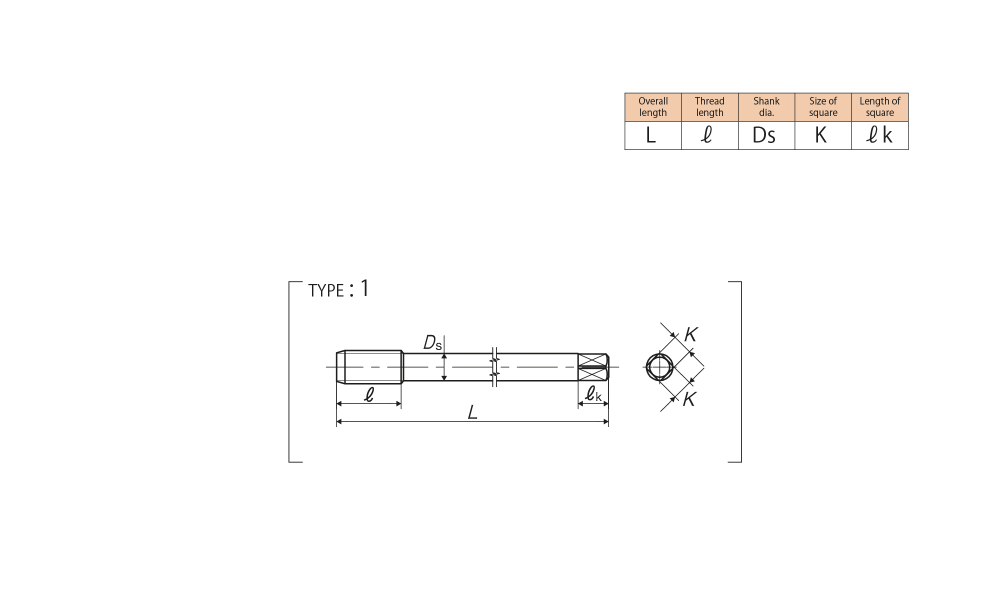

Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
|||||||||||
|
PS 1/8-28 |
Ⅱ |
SH2P02KL10 |
2.5P |
9.728 |
100 |
19 |
8 |
6 |
9 |
3 |
1 |
|
PS 1/8-28 |
Ⅱ |
SH2P02KL12 |
2.5P |
9.728 |
120 |
19 |
8 |
6 |
9 |
3 |
1 |
|
PS 1/8-28 |
Ⅱ |
SH2P02KL15 |
2.5P |
9.728 |
150 |
19 |
8 |
6 |
9 |
3 |
1 |
|
PS 1/4-19 |
Ⅱ |
SH2P04-L10 |
2.5P |
13.157 |
100 |
28 |
11 |
9 |
12 |
3 |
1 |
|
PS 1/4-19 |
Ⅱ |
SH2P04-L15 |
2.5P |
13.157 |
150 |
28 |
11 |
9 |
12 |
3 |
1 |
|
PS 3/8-19 |
Ⅱ |
SH2P06-L10 |
2.5P |
16.662 |
100 |
28 |
14 |
11 |
14 |
3 |
1 |
|
PS 3/8-19 |
Ⅱ |
SH2P06-L12 |
2.5P |
16.662 |
120 |
28 |
14 |
11 |
14 |
3 |
1 |
|
PS 3/8-19 |
Ⅱ |
SH2P06-L15 |
2.5P |
16.662 |
150 |
28 |
14 |
11 |
14 |
3 |
1 |
|
PS 1/2-14 |
Ⅱ |
SH2P08QL15 |
2.5P |
20.955 |
150 |
35 |
18 |
14 |
17 |
4 |
1 |
|
PS 3/4-14 |
Ⅱ |
SH2P12QL15 |
2.5P |
26.441 |
150 |
35 |
23 |
17 |
20 |
4 |
1 |
|
PS 1 -11 |
Ⅱ |
SH2P16UL15 |
2.5P |
33.249 |
150 |
45 |
26 |
21 |
24 |
4 |
1 |
|
PS 1 -11 |
Ⅱ |
SH2P16UL20 |
2.5P |
33.249 |
200 |
45 |
26 |
21 |
24 |
4 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
