LS-SP-PT (Pipe Threads) | Long Shank Spiral Fluted Taps for Taper Pipe Threads, Long (ℓg) Type | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 1,580.37
พร้อมส่ง
SKU
LS-SP-PT (Pipe Threads)
- The LS-SP-PT is a spiral flute long shank tapered pipe tap and is used for products whose main purpose is the tightness of threaded parts in connection with pipe parts, etc.
Specification

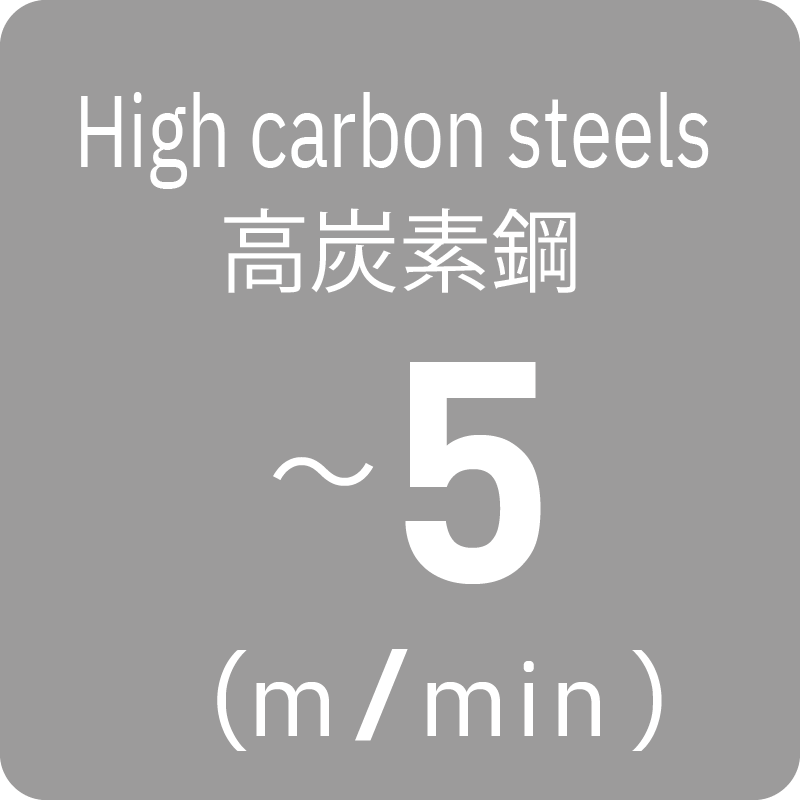

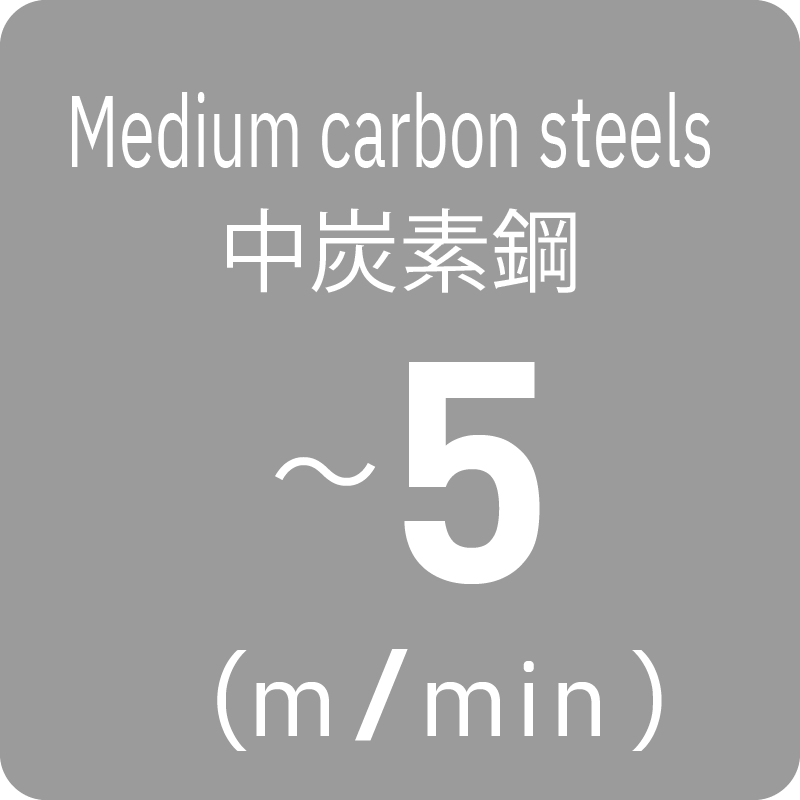

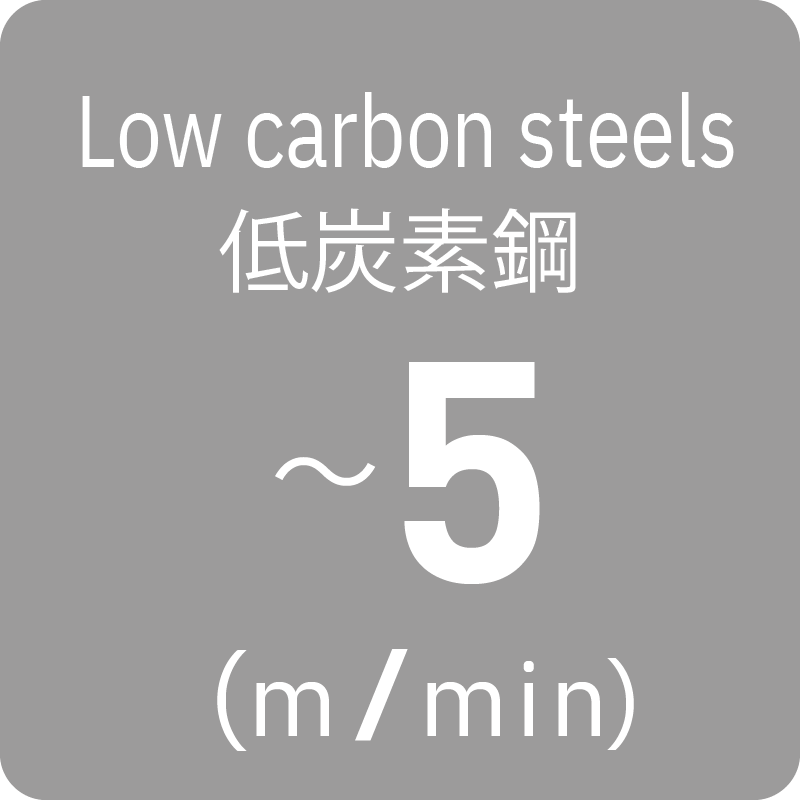

Tapping Speeds depending on Materials
Segment：1G
|

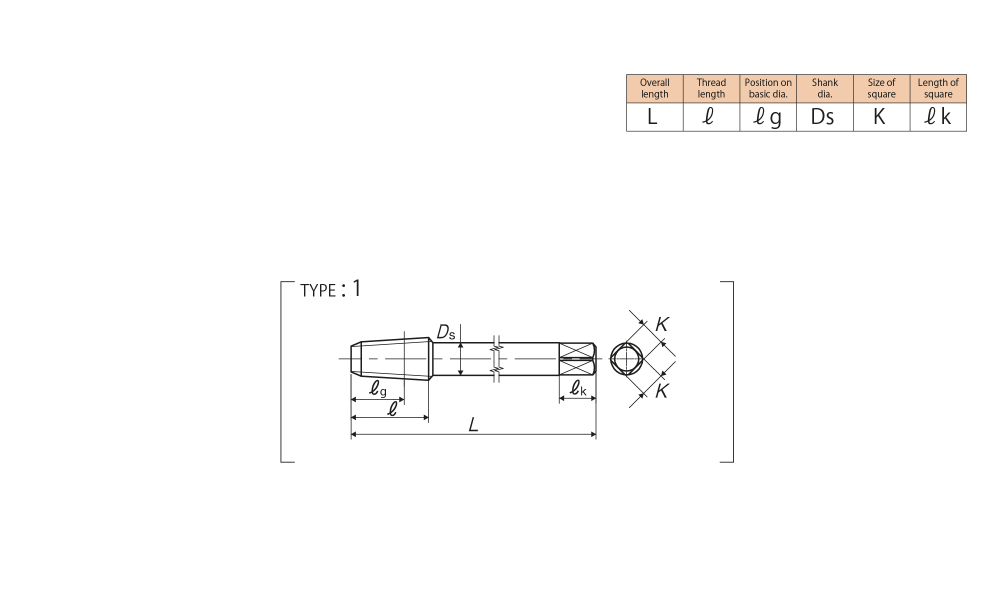

Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
||||||||||||
|
PT 1/8-28 |
Ⅱ |
SH2T02KL10 |
2.5P |
9.728 |
100 |
19 |
13 |
8 |
6 |
9 |
3 |
1 |
|
PT 1/8-28 |
Ⅱ |
SH2T02KL12 |
2.5P |
9.728 |
120 |
19 |
13 |
8 |
6 |
9 |
3 |
1 |
|
PT 1/8-28 |
Ⅱ |
SH2T02KL15 |
2.5P |
9.728 |
150 |
19 |
13 |
8 |
6 |
9 |
3 |
1 |
|
PT 1/4-19 |
Ⅱ |
SH2T04-L10 |
2.5P |
13.157 |
100 |
28 |
21 |
11 |
9 |
12 |
3 |
1 |
|
PT 1/4-19 |
Ⅱ |
SH2T04-L12 |
2.5P |
13.157 |
120 |
28 |
21 |
11 |
9 |
12 |
3 |
1 |
|
PT 1/4-19 |
Ⅱ |
SH2T04-L15 |
2.5P |
13.157 |
150 |
28 |
21 |
11 |
9 |
12 |
3 |
1 |
|
PT 3/8-19 |
Ⅱ |
SH2T06-L10 |
2.5P |
16.662 |
100 |
28 |
21 |
14 |
11 |
14 |
3 |
1 |
|
PT 3/8-19 |
Ⅱ |
SH2T06-L12 |
2.5P |
16.662 |
120 |
28 |
21 |
14 |
11 |
14 |
3 |
1 |
|
PT 3/8-19 |
Ⅱ |
SH2T06-L15 |
2.5P |
16.662 |
150 |
28 |
21 |
14 |
11 |
14 |
3 |
1 |
|
PT 1/2-14 |
Ⅱ |
SH2T08QL15 |
2.5P |
20.955 |
150 |
35 |
25 |
18 |
14 |
17 |
4 |
1 |
|
PT 3/4-14 |
Ⅱ |
SH2T12QL15 |
2.5P |
26.441 |
150 |
35 |
25 |
23 |
17 |
20 |
4 |
1 |
|
PT 1 -11 |
Ⅱ |
SH2T16UL15 |
2.5P |
33.249 |
150 |
45 |
32 |
26 |
21 |
24 |
4 |
1 |
|
PT 1 -11 |
Ⅱ |
SH2T16UL20 |
2.5P |
33.249 |
200 |
45 |
32 |
26 |
21 |
24 |
4 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
