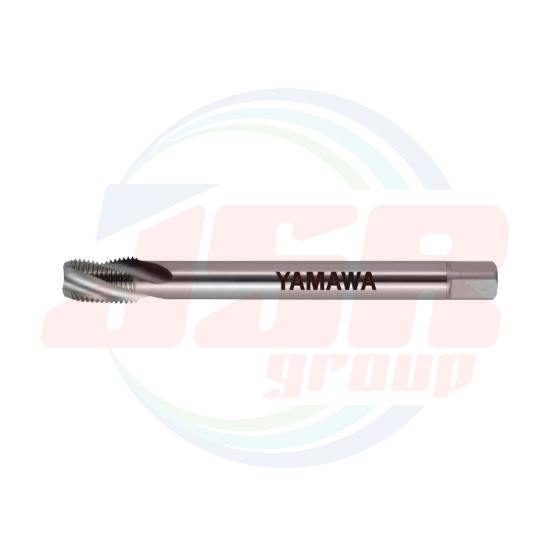

LS-SP-S-NPT (American Pipe Threads)| Long Shank Spiral Fluted Taps for American Taper Pipe Threads, Short (ℓg) Type | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 2,093.46
พร้อมส่ง
SKU
LS-SP-S-NPT (American Pipe Threads)
- The LS-SP-S-NPT is a long shank spiral flute tap for the American tapered pipe threads where it is necessary to shorten the fitting length and is used for products whose main purpose is the tightness of threaded parts in connection with pipe parts etc.

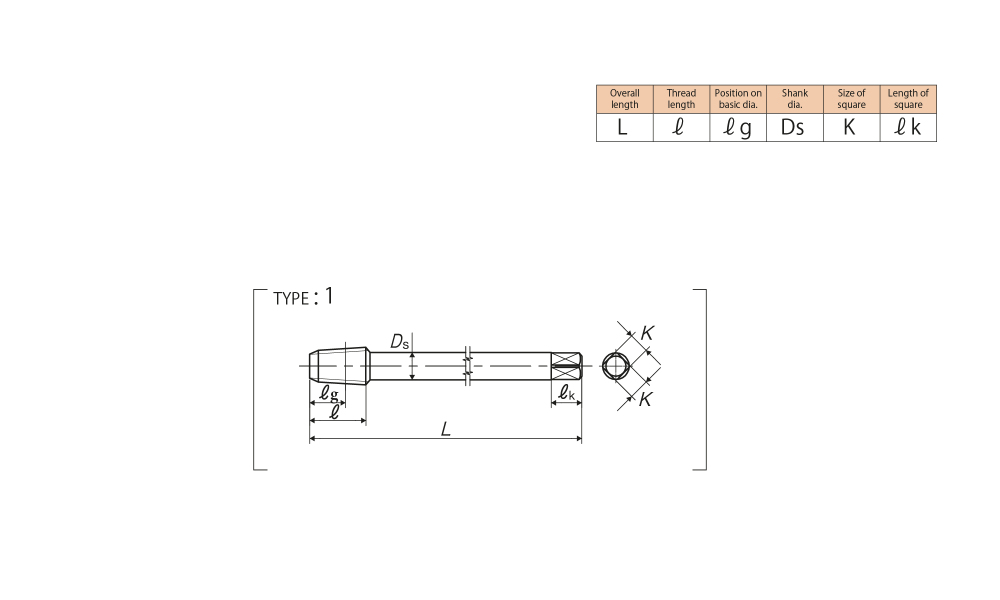

Specification
Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For American Pipe Threads |
||||||||||||
|
1/8-27 NPT |
ANSI G |
SSNPT02LL10 |
2.5P |
10.117 |
100 |
16.5 |
10.5 |
8 |
6 |
9 |
3 |
1 |
|
1/4-18 NPT |
ANSI G |
SSNPT04OL15 |
2.5P |
13.426 |
150 |
19.5 |
12.5 |
11 |
9 |
12 |
3 |
1 |
|
3/8-18 NPT |
ANSI G |
SSNPT06OL15 |
2.5P |
16.866 |
150 |
21 |
14 |
14 |
11 |
14 |
3 |
1 |
|
1/2-14 NPT |
ANSI G |
SSNPT08QL15 |
2.5P |
20.980 |
150 |
27 |
17 |
18 |
14 |
17 |
4 |
1 |
|
3/4-14 NPT |
ANSI G |
SSNPT12QL15 |
2.5P |
26.325 |
150 |
29 |
19 |
23 |
17 |
20 |
4 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
