LS-SP-S-PT (Pipe Threads)

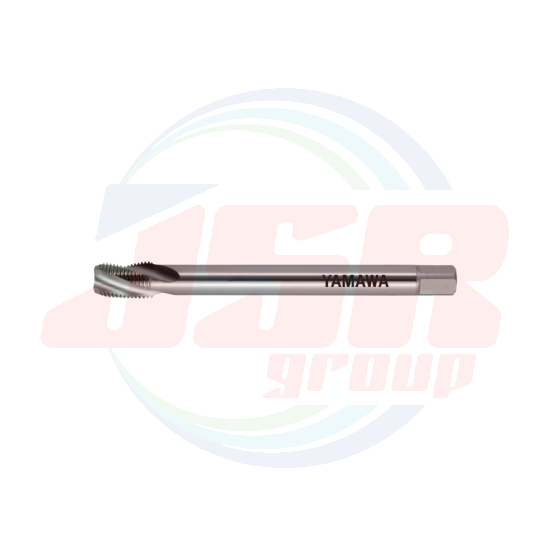

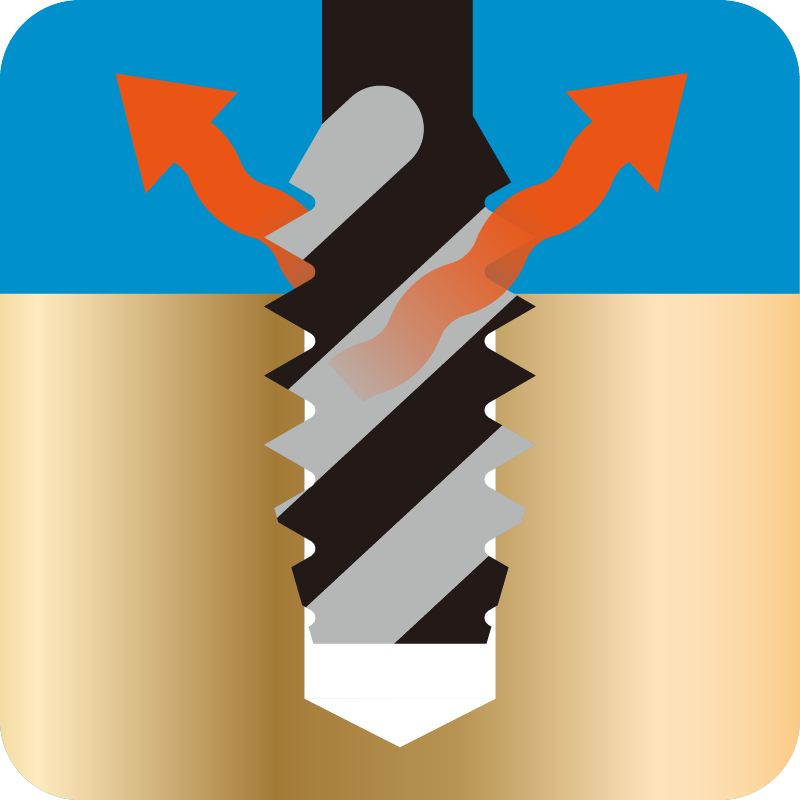

- The LS-SP-S-PT is a spiral flute long shank tapered pipe tap and is used for tapping where it is necessary to shorten the fitting length with a product whose main purpose is the tightness of the threaded portion in connection with pipe parts etc.

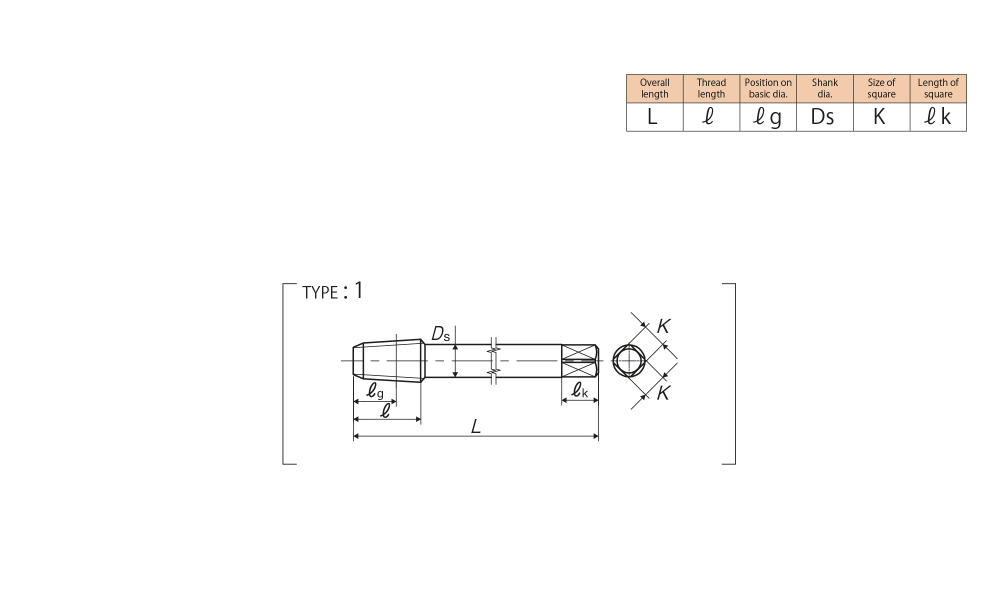

Specification
Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
||||||||||||
|
PT 1/8-28 |
Ⅱ |
SSPT02KL10 |
2.5P |
9.728 |
100 |
16.5 |
10.5 |
8 |
6 |
9 |
3 |
1 |
|
PT 1/8-28 |
Ⅱ |
SSPT02KL12 |
2.5P |
9.728 |
120 |
16.5 |
10.5 |
8 |
6 |
9 |
3 |
1 |
|
PT 1/8-28 |
Ⅱ |
SSPT02KL15 |
2.5P |
9.728 |
150 |
16.5 |
10.5 |
8 |
6 |
9 |
3 |
1 |
|
PT 1/4-19 |
Ⅱ |
SSPT04-L10 |
2.5P |
13.157 |
100 |
19.5 |
12.5 |
11 |
9 |
12 |
3 |
1 |
|
PT 1/4-19 |
Ⅱ |
SSPT04-L12 |
2.5P |
13.157 |
120 |
19.5 |
12.5 |
11 |
9 |
12 |
3 |
1 |
|
PT 1/4-19 |
Ⅱ |
SSPT04-L15 |
2.5P |
13.157 |
150 |
19.5 |
12.5 |
11 |
9 |
12 |
3 |
1 |
|
PT 3/8-19 |
Ⅱ |
SSPT06-L10 |
2.5P |
16.662 |
100 |
21 |
14 |
14 |
11 |
14 |
3 |
1 |
|
PT 3/8-19 |
Ⅱ |
SSPT06-L12 |
2.5P |
16.662 |
120 |
21 |
14 |
14 |
11 |
14 |
3 |
1 |
|
PT 3/8-19 |
Ⅱ |
SSPT06-L15 |
2.5P |
16.662 |
150 |
21 |
14 |
14 |
11 |
14 |
3 |
1 |
|
PT 1/2-14 |
Ⅱ |
SSPT08QL15 |
2.5P |
20.955 |
150 |
27 |
17 |
18 |
14 |
17 |
4 |
1 |
|
PT 3/4-14 |
Ⅱ |
SSPT12QL15 |
2.5P |
26.441 |
150 |
29 |
19 |
23 |
17 |
20 |
4 |
1 |
|
PT 1 -11 |
Ⅱ |
SSPT16UL15 |
2.5P |
33.249 |
150 |
35 |
22 |
26 |
21 |
24 |
4 |
1 |
|
PT 1 -11 |
Ⅱ |
SSPT16UL20 |
2.5P |
33.249 |
200 |
35 |
22 |
26 |
21 |
24 |
4 |
1 |
