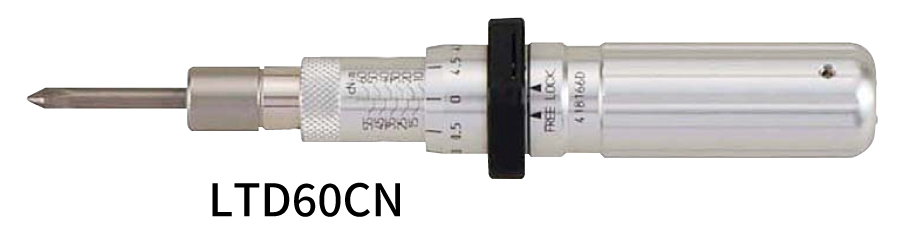

LTD - ADJUSTABLE LIMITING TYPE TORQUE SCREWDRIVER Metric | TOHNICHI
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
TOHNICHI-LTDM
ASSEMBY | AJUSTABLE | GRADUATION | ISO6789:2003
● Clicks at set torque value
● Torque easily set with external scale
Accuracy ±3%
| S.I. Order No. | Torque Range [cN•m] | Metric Order No. | Torque Range [kgf•cm] | American Order No. | Torque Range [ozf•in/lbf•in] | Overall Length [mm] | Weight | |||
| Min.-Max. | Grad. | Min.-Max. | Grad. | Min.-Max. | Grad. | g | ||||
| ozf•in | ozf•in | 100 | 50 | |||||||
| - | LTD20Z | 6-20 | 0.2 | |||||||
| - | LTD40Z | 15-40 | 0.5 | |||||||
| - | LTD80Z | 20-80 | 1 | 110 | 80 | |||||
| - | LTD150Z | 30-150 | 2 | 130 | 160 | |||||
| lbf•in | lbf•in | 100 | 50 | |||||||
| LTD15CN | 2-15 | 0.1 | 1.5LTD | 0.2-1.5 | 0.01 | LTD1.3I | 0.2-1.3 | 0.01 | ||
| LTD30CN | 4-30 | 0.2 | 3LTD | 0.4-3 | 0.02 | LTD2.6I | 0.4-2.6 | 0.02 | ||
| LTD60CN | 10-60 | 0.5 | 6LTD | 1-6 | 0.05 | LTD5I | 1-5 | 0.05 | 110 | 80 |
| LTD120CN | 20-120 | 1 | 12LTD | 2-12 | 0.1 | LTD10I | 2-10 | 0.1 | 130 | 160 |
| LTD260CN | 60-260 | 2 | 26LTD | 6-26 | 0.2 | LTD22I | 6-22 | 0.2 | 150 | 270 |
| LTD500CN | 100-500 | 5 | 50LTD | 10-50 | 0.5 | LTD40I | 10-40 | 0.5 | 155 | 320 |
| LTD1000CN | 200-1000 | 5 | 100LTD | 20-100 | 0.5 | LTD90I | 20-90 | 0.5 | 185 | 580 |
| LTD2000CN2 | 400-2000 | 5 | LTD200M2 | 40-200 | 0.5 | LTD180I2 | 40-180 | 0.5 | 255 | 1150 |
Note. 1. Auxiliary tightening tool for LTD500CN and LTD1000CN is available, sold separately.
2. Bits are sold separately.
3. LTD2000CN2 and the equivalent metric and American models has an 9.53mm square drive head.
Standard Accessories. 1. Hook spanner for LTD260CN-LTD2000CN2
2. LTD2000CN2 come with an auxiliary tightening tool.
3. Resin grip for LTD120CN and LTD260CN
| แบรนด์สินค้า | TOHNICHI |
|---|
