LTDK CLUTCH RELEASE TORQUE SCREW DRIVERS | KANON
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
KANON-LTDK
FEATURES
● Comfortable grip for extended use.
● Light weight and short overall length facilitates jobs.
Sensitive clutch release helps the operator feel when the torque setting is reached.
● Set the required torque value and tighten, all operators tighten consistently.
● Two phillips bit are included.
● Various hex and box drive bits are available.
● Use for clockwise tightening.
● Accuracy : ±3% of indicated value over the full range, clockwise.
● “-H” models accept standard bits instead of CB type bits.

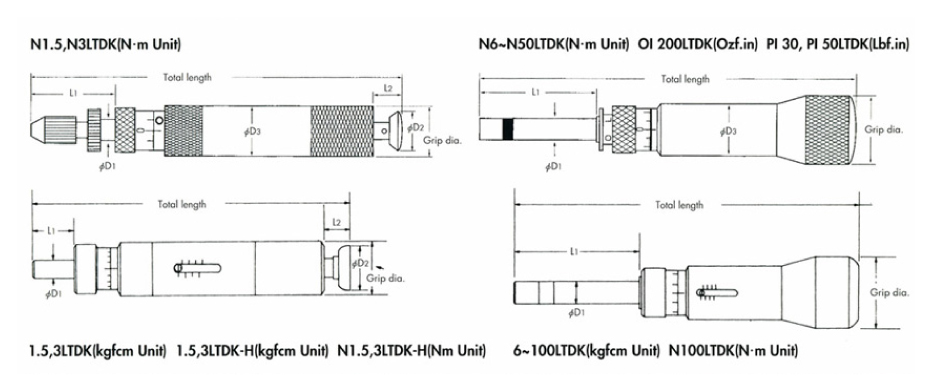

| Order No. (cN•m/N•m) | Old Model (cN•m/N•m) | Range | Increment |
Order No. (ozf•in/ lbf•in) |
Range | Increment | Grip dia. | Total length (without bit) | Dimensions (mm) | Weight | Included Accessory |
||||||
| Body | Bits | Extension Bar | |||||||||||||||
| cN•m / N•m | ozf•in/lbf•in | Ømm | mm | L1 | L2 | ØD1 | ØD2 | ØD3 | g | Phillips | Bit type | ||||||
| CN15LTDK | N1.5LTDK | 1~15 cN•m | 0.1 cN•m | 16 | 107 | 22 | 10.5 | 5.5 | 14.5 | 15.5 | 57 |
No.0 No.1 |
KANON bits CB type | ||||
| CN30LTDK | N3LTDK | 2~30 cN•m | 0.2 cN•m | ||||||||||||||
| CN60LTDK | N6LTDK | 5~60 cN•m | 0.5 cN•m | 25 | 110 | 26 | 10 | 20 | 99 |
No.0 No.1 |
Standard bits SB type |
||||||
| CN120LTDK | N12LTDK | 20~20 cN•m | 1 cN•m | Ol 200LTDK | 40~20 ozf•in | 1 | 30 | 157 | 51 | 25 | 192 | ||||||
| CN200LTDK | N20LTDK | 40~200 cN•m | 1 cN•m | 34 | 214 | ||||||||||||
| CN300LTDK | N30LTDK | 40~300 cN•m | 1 cN•m | Pl 30LTDK | 4~30 lbf•in | 0.1 |
No.1 No.2 |
||||||||||
| CN500LTDK | N50LTDK | 100~500 cN•m | 2.5 cN•m | Pl 50LTDK | 10~50 lbf•in | 0.25 | 40 | 200 | 63 | 34 | 436 | ||||||
| N10LTDK | N100LTDK | 4~10 N•m | 0.05 N•m | 45 | 235 | 100 | 11 | 35 | 762 | No.2,No.3 | Included | ||||||
| CN15LTDK-H | N1.5LTDK-H | 1~15 cN•m | 0.1 cN•m | 16 | 111 | 26 | 10.5 | 10 | 14.4 | 15.5 | 60 |
No.0 No.1 |
|||||
| CN30LTDK-H | N3LTDK-H | 2~30 cN•m | 0.2 cN•m | ||||||||||||||
| Order No. (cN•m/N•m) | Range | Increment | Grip dia. | Total length (without bit) | Dimensions (mm) | Weight | Included Accessory |
||||||
| Body | Bits | Extension Bar | |||||||||||
| kgf•cm / cN•m | Ømm | mm | L1 | L2 | ØD1 | ØD2 | ØD3 | g | Phillips | Bit type | |||
| 1.5LTDK | 0.1~1.5 kgf•cm | 0.01 kgf•cm | 16 | 99 | 14 | 10.5 | 5.5 | 14.5 | 15.5 | 50 |
No.0 No.1 |
KANON bits CB type | |
| 3LTDK | 0.2~3 kgf•cm | 0.02 kgf•cm | |||||||||||
| 6LTDK | 0.5~6 kgf•cm | 0.05 kgf•cm | 25 | 110 | 35 | 10 | 20 | 95 |
No.0 No.1 |
Standard bits SB type |
|||
| 12LTDK | 2~12 kgf•cm | 0.1 kgf•cm | 30 | 157 | 57 | 25 | 190 | ||||||
| 20LTDK | 4~20 kgf•cm | 0.1 kgf•cm | 34 | 208 | |||||||||
| 30LTDK | 4~30 kgf•cm | 0.1 kgf•cm |
No.1 No.2 |
||||||||||
| 50LTDK | 10~50 kgf•cm | 0.25 kgf•cm | 40 | 200 | 73 | 34 | 436 | ||||||
| 100LTDK | 40~00 kgf•cm | 0.5 kgf•cm | 45 | 235 | 100 | 11 | 35 | 762 | No.2,No.3 | Included | |||
| 1.5LTDK-H | 0.1~1.5 cN•m | 0.01 cN•m | 16 | 111 | 26 | 10.5 | 10 | 14.4 | 15.5 | 60 |
No.0 No.1 |
||
| 3LTDK-H | 0.2~3 cN•m | 0.02 cN•m | |||||||||||
| แบรนด์สินค้า | KANON |
|---|

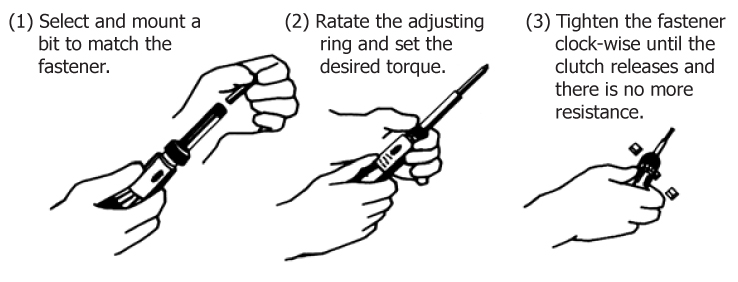

USING AN LTDK DRIVER
