M Plan Apo NIR / M Plan Apo NIR HR / M Plan Apo NIR B

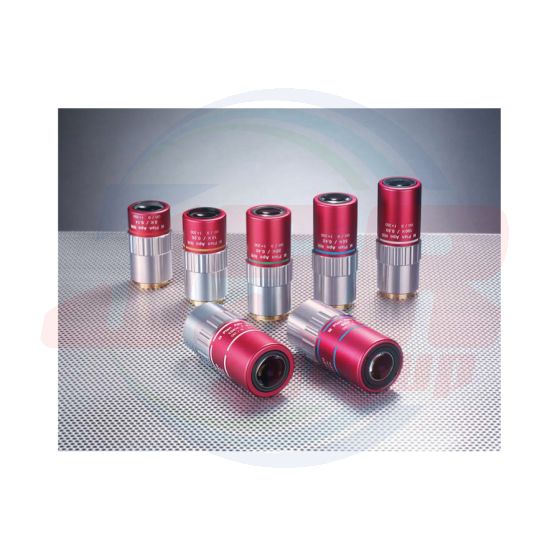

Near-Infrared Radiation Range Objectives for Bright-Field Observation
M Plan Apo NIR / M Plan Apo NIR HR / M Plan Apo NIR B
VMU / WIDE VMU / FS70
Features
> Bright-field observation/Near-infrared observation/Laser machining
> Wavelength compensation range 480 nm to 1800 nm (M Plan Apo NIR B: 420 nm to 1064 nm)
> Infinity corrected
> Long working distance
> Plan-Apochromat
> High-resolving power typ (M Plan Apo NIR HR)
> Ultra-long working distance and High spectral transmission factor (M Plan Apo NIR B)
Specifications
| Model | Order No. | N.A. | W.D. (mm) | f (mm) (λ= 550 nm) |
R (μm) (λ= 550 nm) |
±DOF (μm) | Real FOV (mm) | Mass (g) |
|
| ø24 Eyepiece | 2/3 Inch Camera | ||||||||
| BD Plan Apo | |||||||||
| M Plan Apo NIR 5X | 378-822-5 | 0.14 | 37.5 | 40 | 2.0 | 14.0 | 4.8 | 1.32×1.76 | 260 |
| M Plan Apo NIR 10X | 378-823-15 | 0.26 | 31.0 | 20 | 1.1 | 4.1 | 2.4 | 0.66×0.88 | 270 |
| M Plan Apo NIR 20X | 378-824-16 | 0.40 | 20.0 | 10 | 0.7 | 1.7 | 1.2 | 0.33×0.44 | 320 |
| M Plan Apo NIR 50X | 378-825-17 | 0.42 | 17.0 | 4 | 0.7 | 1.6 | 0.48 | 0.13×0.18 | 360 |
| M Plan Apo NIR 100X | 378-826-15 | 0.50 | 12.0 | 2 | 0.6 | 1.1 | 0.24 | 0.07×0.09 | 380 |
| M Plan Apo NIR HR | |||||||||
| M Plan Apo NIR HR 20X | 378-854 | 0.60 | 12.0 | 10 | 0.46 | 0.8 | 1.2 | 0.33×0.44 | 470 |
| M Plan Apo NIR HR 50X | 378-863-5 | 0.65 | 10.0 | 4 | 0.4 | 0.7 | 0.48 | 0.13×0.18 | 530 |
| M Plan Apo NIR HR 100X | 378-864-15 | 0.70 | 10.0 | 2 | 0.4 | 0.6 | 0.24 | 0.07×0.09 | 520 |
| M Plan Apo NIR B | |||||||||
| M Plan Apo NIR B 20X | 378-867-5 | 0.40 | 25.5 | 10 | 0.7 | 1.7 | 1.2 | 0.33×0.44 | 370 |
| M Plan Apo NIR B 50X | 378-868-5 | 0.42 | 25.5 | 4 | 0.7 | 1.6 | 0.48 | 0.13×0.18 | 390 |
• Every resolution and single objective's depth of focus in the above table is a value determined on the basis of a reference wavelength (λ= 0.55 μm).
Note: If the wavelength used is 1100 nm or longer, the focal point may deviate slightly from that in visible radiation.
