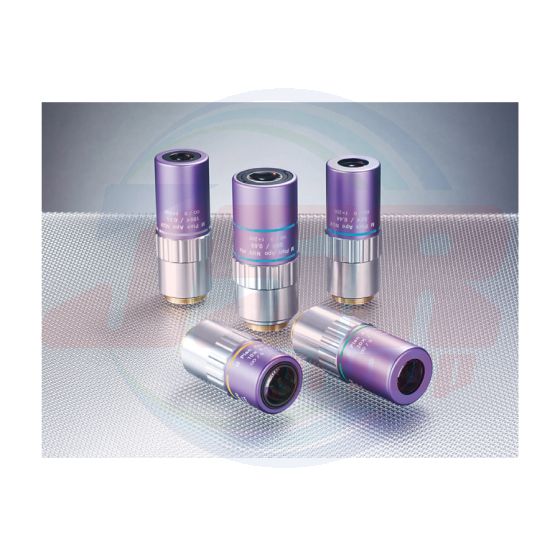

M Plan Apo NUV & NUV HR
Near-Ultraviolet Radiation Range Objectives for Bright-Field Observation
M Plan Apo NUV / M Plan Apo NUV HR
VMU / FS70
Features
> Bright-field observation/Near-ultraviolet observation / Laser machining
> Wavelength compensation range 355 nm to 620 nm
> Infinity corrected
> Long working distance
> Plan-Apochromat
> High-resolving power typ (M Plan Apo NUV HR)
Specifications
| Model | Order No. | N.A. | W.D. (mm) | f (mm) (λ= 550 nm) |
R (μm) (λ= 550 nm) |
±DOF (μm) | Real FOV (mm) | Mass (g) |
|
| ø24 Eyepiece | 2/3 Inch Camera | ||||||||
| M Plan Apo NUV | |||||||||
| M Plan Apo NUV 10X | 378-809-5 | 0.28 | 30.5 | 20 | 1 | 3.5 | 2.4 | 0.66x0.88 | 270 |
| M Plan Apo NUV 20X | 378-817-8 | 0.42 | 17.0 | 10 | 0.7 | 1.6 | 1.2 | 0.33x0.44 | 360 |
| M Plan Apo NUV 50X | 378-818-8 | 0.44 | 15.0 | 4 | 0.6 | 1.4 | 0.48 | 0.13x0.18 | 410 |
| M Plan Apo NUV 100X | 378-819-15 | 0.50 | 11.0 | 2 | 0.6 | 1.1 | 0.24 | 0.07x0.09 | 430 |
| M Plan Apo NUV HR | |||||||||
| M Plan Apo NUV HR 50X | 378-888-6 | 0.65 | 10.0 | 4 | 0.42 | 0.65 | 0.48 | 0.13x0.18 | 570 |
• Every resolution and single objective's depth of focus in the above table is a value determined on the basis of a reference wavelength (λ= 0.55 μm).
