M Plan Apo SL
Objectives for Bright-Field Observation
(Super-Long Working Distance)

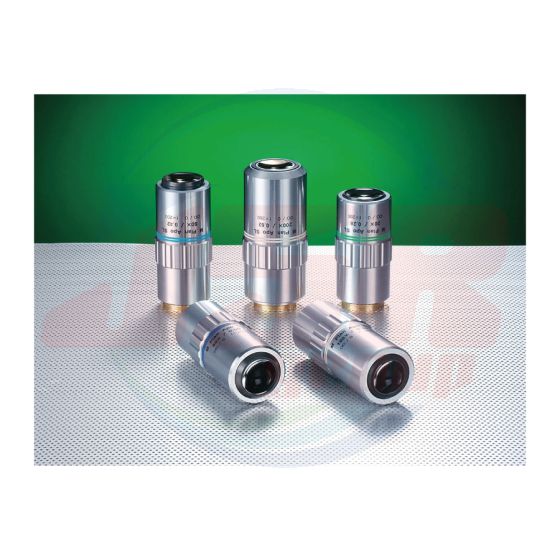

M Plan Apo SL
VMU / WIDE VMU / FS70 / MF-U / Hyper MF-U
Features
> Bright-field observation
> Wavelength compensation range 436 nm to 656 nm (Designed to fundamental wavelength 587 nm)
> Infinity corrected
> Super long working distance
> Plan-Apochromat
Specifications
| Model | Order No. | N.A. | W.D. (mm) | f (mm) (λ= 550 nm) |
R (μm) (λ= 550 nm) |
±DOF (μm) | Real FOV (mm) | Mass (g) |
|
| ø24 Eyepiece | 2/3 Inch Camera | ||||||||

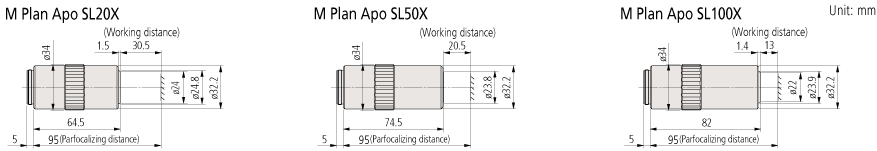

| M Plan Apo SL | |||||||||
| M Plan Apo SL20X | 378-810-3 | 0.28 | 30.5 | 10 | 1.0 | 3.5 | 1.2 | 0.33×0.44 | 290 |
| M Plan Apo SL50X | 378-811-15 | 0.42 | 20.5 | 4 | 0.7 | 1.6 | 0.48 | 0.13×0.18 | 340 |
| M Plan Apo SL100X | 378-813-3 | 0.55 | 13.0 | 2 | 0.5 | 0.9 | 0.24 | 0.07×0.09 | 360 |
• Every resolution and single objective's depth of focus in the above table is a value determined on the basis of a reference wavelength (λ= 0.55 μm).
