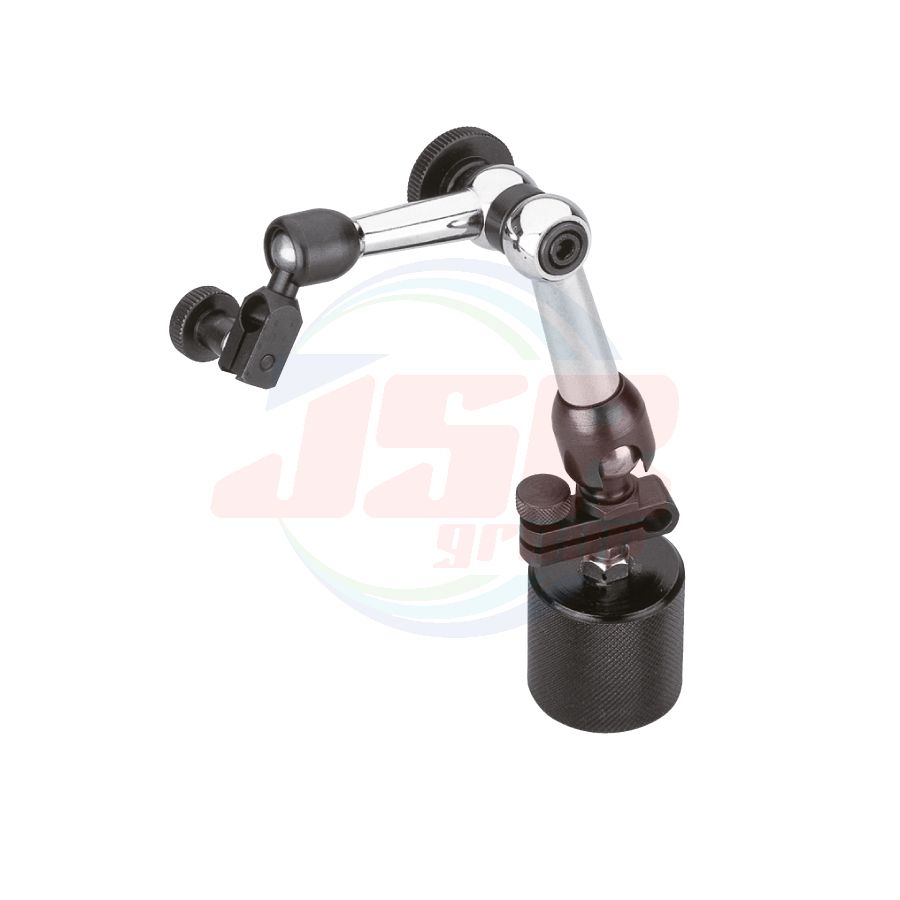

MB-6 (012704) | MINI MAGNETIC BASE FINE ADJUSTMENT TYPE | SK NIIGATASEIKI
THB 0.00
พร้อมส่ง
SKU
012704
USE
● Measurements that require a dial indicator to be held in fixed position
MATERIAL
●Alnico magnet
FEATURES
● Strong holding force using alnico magnet
● Universal joint can be set to any angle
● Locking knob for easy tightening
● W ith fine adjustment（ 0.5mm adj. range）

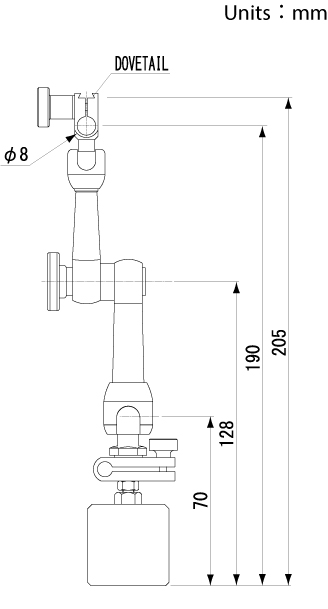

SPECIFICATIONS
● Magnetice adsorption： approx. 200N
● Stem holder： φ8mm
● With dovetail mount
● Main post screw： M5×P0.8
| Order No. | Model No. | Base Dimension （mm） |
Surface magnetic flux density （mT） |
Weight |
| 012704 | MB-6 | φ35×32 | Max. 90 | 510g |
| แบรนด์สินค้า | NIIGATA SEIKI (SK) |
|---|---|
| Order No. | 012704 (MB-6) |
