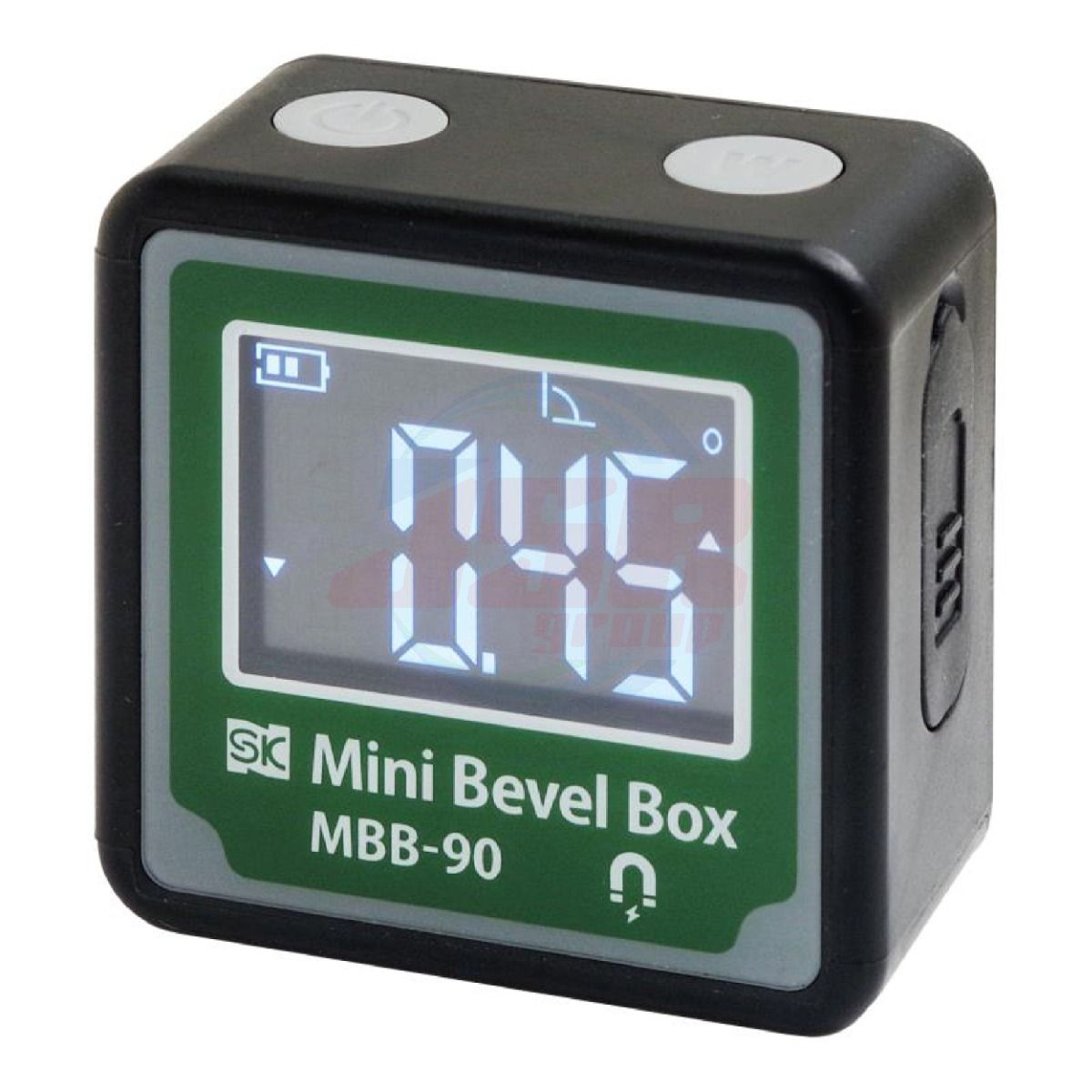

MBB-90 | Mini Bevel Box | sk niigata seiki
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
MBB-90
Purpose
● For angle measurement, assembly, and machining standards for machines, molds, jigs, and tools
| Product Code |
|
Body mass | Body width | Main body height | Main body depth |
| 00010100 | MBB-90 | 25g | 36mm | 36mm | 20mm |
Features
●This precision angle measuring instrument is used for angle measurement, assembly, and processing standards for machines, molds, jigs, and tools.
●Equipped with a magnet on the bottom, allowing measurement by attaching to metal.
●Absolute measurement mode allows measurement from a horizontal plane.
●Comparative measurement (REF) mode allows zero setting at any angle.
●Unit switching for degrees (°) and gradients (%), and fixed values.
●Equipped with automatic backlight off function (approx. 30 seconds)
●Auto-off function (approx. 3 minutes)
Specifications
● Measurement range (°): 360 (4×90)
● Minimum reading: Angle (°): 0.05 / Slope (%): 0.01
● Reading accuracy (°): ±0.3
● Repeatability (°): 0.1
● Power supply: Lithium polymer battery 3.7V 260mAh
● Continuous usage time (hours): approx. 6
● Charging time (hours): about 1
● Measurement method: Absolute measurement / Comparative measurement (REF)
● Operating temperature range (°C): approx. 5~40
Material
● Main body: ABS
● Button: TPR
● Connector cover: Silicone
● Magnet: Neodymium
Accessories
● USB cable
| แบรนด์สินค้า | NIIGATA SEIKI (SK) |
|---|---|
| Order No. | MBB-90 |
| Product Code | 00010100 |
