MC-AD-CT | Carbide Taps with Oil Hole | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 4,263.55
พร้อมส่ง
SKU
MC-AD-CT
Product Features
- The MC-AD-CT is a carbide tap with an coolant through hole, suitable for screw thread tapping of aluminum alloy casting and aluminum die casting in blind holes.
- The flute shape develops less flute damage · The MC-AD-CT is a ultra fine grain cemented carbide tap with superior wear resistance · The superior carbide combined with an optimum coating produces a 5 times longer tool life than conventional aluminum taps.
- The center coolant through hole shape is designed for internal lubrication and mist applications. The lubrication or air lowers the temperature by cooling even in dry tapping. It is effective in removing chips from the pilot hole during tapping and prevents chip welding.

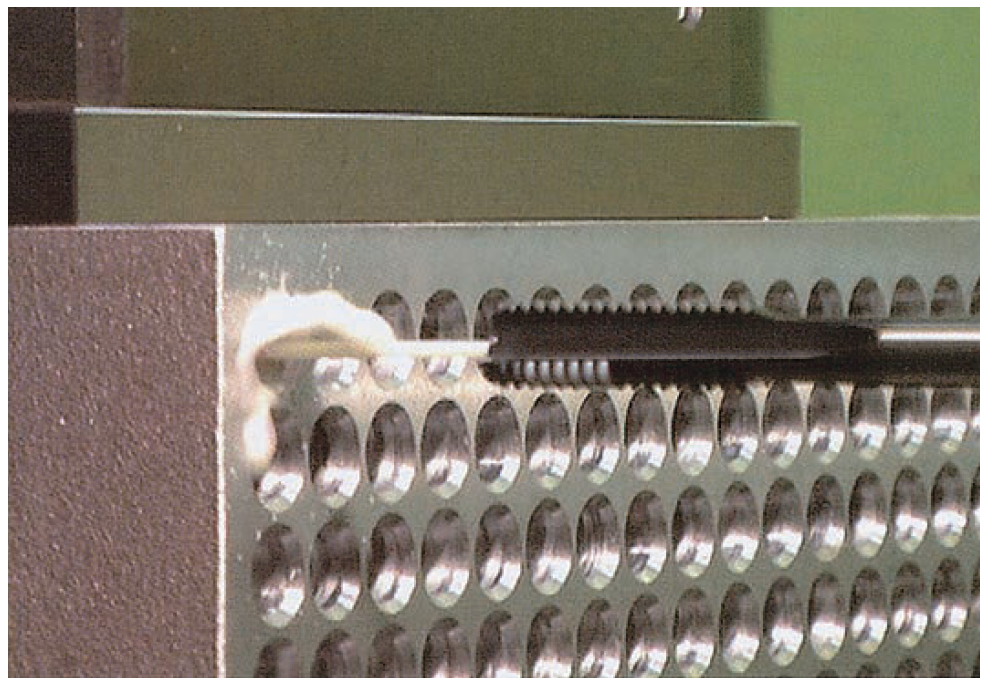

Tapping Data
Tapping conditions [M6×1]
| Workpiece Material | ADC12 |
|
| Bored Hole Shape | Blind Hole | |
| Bored Hole Depth | 14mm | |
| Tapping Length | 12mm | |
| Tapping Speed | 57m/min | |
| Feed | Fully synchronous feed | |
| Machinery Type | Horizontal machining center | |
| Tapping Fluid | Water soluble cutting fluid | |
| Number of Holes Tapped | 240,000 holes |

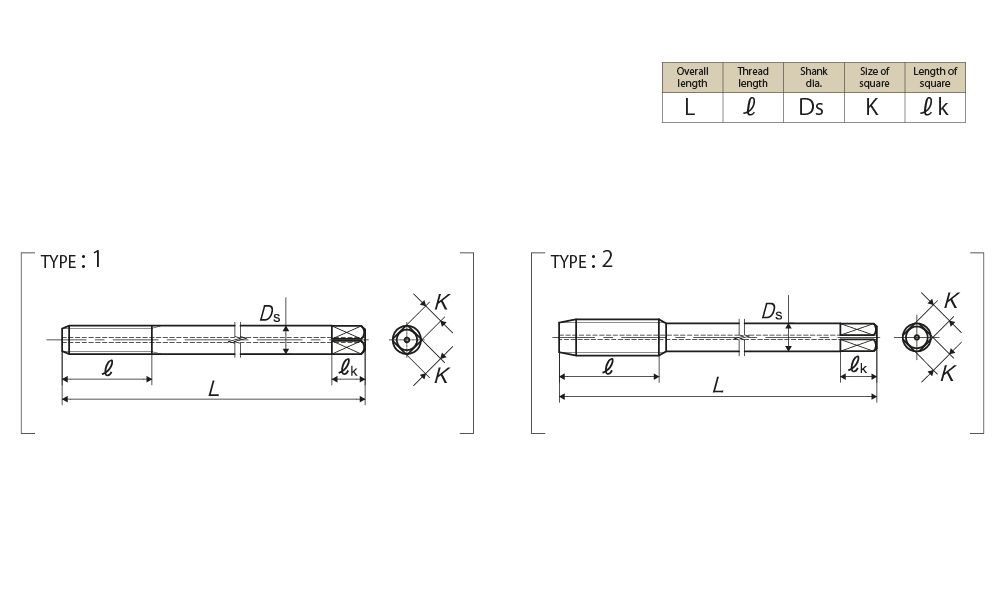

Specification
Tapping Speeds depending on Materials
Segment：1L
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||
|
M6×1 |
P3 |
MCADR6.0M1 |
1.5P |
100 |
19 |
6 |
4.5 |
7 |
3 |
1 |
|
M8×1.25 |
P3 |
MCADR8.0N1 |
1.5P |
100 |
22 |
6.2 |
5 |
8 |
3 |
2 |
|
M10×1.5 |
P4 |
MCADS010O1 |
1.5P |
100 |
24 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1.25 |
P4 |
MCADS010N1 |
1.5P |
100 |
22 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1 |
P4 |
MCADS010M1 |
1.5P |
100 |
19 |
7 |
5.5 |
8 |
3 |
2 |
|
M12×1.75 |
P4 |
MCADS012P1 |
1.5P |
100 |
30 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.5 |
P4 |
MCADS012O1 |
1.5P |
100 |
24 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.25 |
P4 |
MCADS012N1 |
1.5P |
100 |
22 |
8.5 |
6.5 |
9 |
3 |
2 |
Note: Products marked with an ▲ in the stock column are available while supplies last.
