MC-CSLC (Metric Threads) | Carbide Thread Mills for Metric Internal Threads | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 8,555.14
พร้อมส่ง
SKU

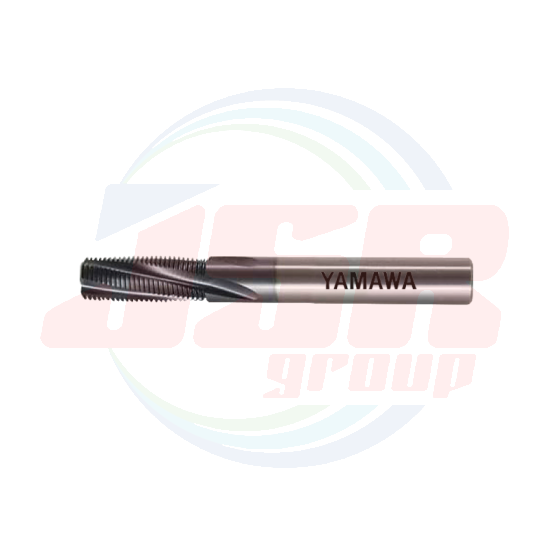

MC-CSLC (Metric Threads)
Product Features
- The same MC-CSLC can process right and left hand internal threads by using the helical interpolating process.
- The MC-CSLC can process different diameters of internal threads with one tool if they have the same pitch.
- The MC-CSLC can be used for a wide range of work piece materials such as aluminum, aluminum alloy, copper, copper alloy, cast iron, stainless steel, tool steel, alloy steel, carbon steel, thermal refined steel.
- The tool is produced from an ultrafine grain cemented carbide material that offers high wear resistance. It has a special coating to gain additional tool life.
- Blind hole internal thread machining with a few incomplete threads is possible.
- The MC-CSLC is a spiral fluted thread mill that reduces processing torque when compared to straight flute type.
Cutting data
| Cutting Conditions［M14×1.5］ | Comparison of cutting torques | |
| Cutter Diameter | φ10 |  |
| Cutting length | 20mm | |
| Number of Flutes | 4 | |
| Bored Hole Size | φ12.5 | |
| Flute type | Straight and spiral | |
* The graph above is simulation figures, not an actual measurement value.

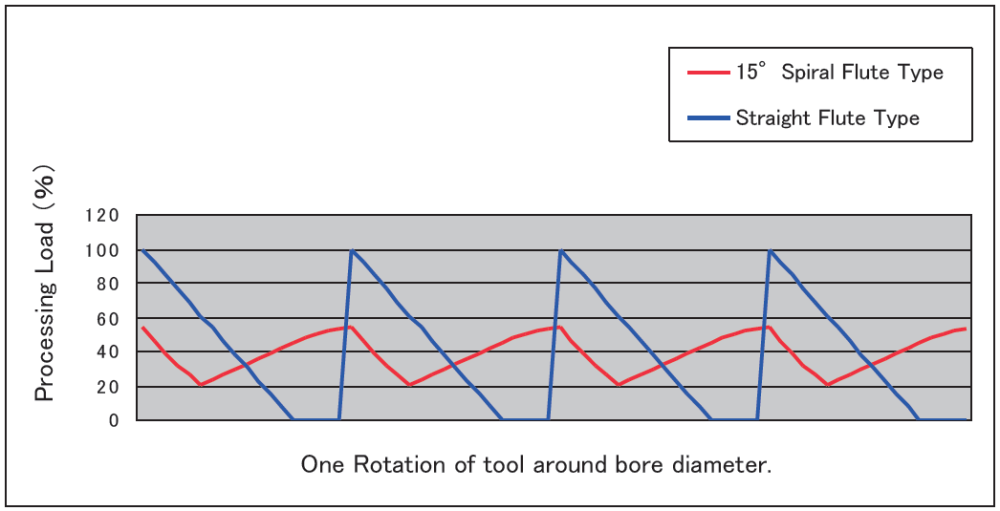

The graph on the upper right is a diagram of the machining torque change of a straight flute thread mill compared to a spiral flute
thread mill. The spiral flute thread mill reduces torque by 40% and has a lower fluctuation rate than a straight flute thread mill.

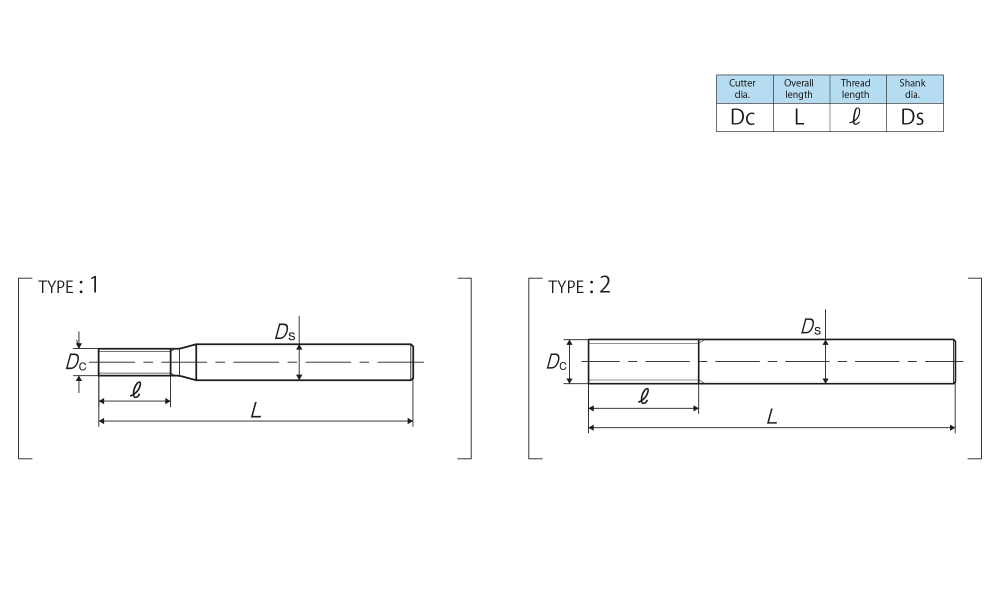

Specification
Tapping Speeds depending on Materials
25〜35HRC
Segment：1L
|
Tool No. |
Code |
Cutter diameter Dc (mm) |
Pitch (mm) |
L (mm) |
ℓ (mm) |
Ds (mm) |
No. of flutes |
Min.size |
TYPE |
|
For Metric Threads |
|||||||||
|
035083N080M |
CSLCN3.5K |
3.5 |
0.8 |
50 |
8 |
6 |
3 |
5 |
1 |
|
035083N075M |
CSLCN3.5J |
3.5 |
0.75 |
50 |
8 |
6 |
3 |
5 |
1 |
|
040123N100M |
CSLCN4.0M |
4 |
1 |
60 |
12 |
6 |
3 |
6 |
1 |
|
060163N125M |
CSLCN6.0N |
6 |
1.25 |
70 |
16 |
8 |
3 |
8 |
1 |
|
060163N100M |
CSLCN6.0M |
6 |
1 |
70 |
16 |
8 |
3 |
8 |
1 |
|
060163N050M |
CSLCN6.0G |
6 |
0.5 |
70 |
16 |
8 |
3 |
8 |
1 |
|
075203N150M |
CSLCN7.5O |
7.5 |
1.5 |
70 |
20 |
8 |
3 |
10 |
2 |
|
075203N125M |
CSLCN7.5N |
7.5 |
1.25 |
70 |
20 |
8 |
3 |
10 |
2 |
|
080203N100M |
CSLCN8.0M |
8 |
1 |
70 |
20 |
8 |
3 |
12 |
2 |
|
080203N050M |
CSLCN8.0G |
8 |
0.5 |
70 |
20 |
8 |
3 |
12 |
2 |
|
090244N175M |
CSLCN9.0P |
9 |
1.75 |
90 |
24 |
10 |
4 |
12 |
2 |
|
090244N125M |
CSLCN9.0N |
9 |
1.25 |
90 |
24 |
10 |
4 |
12 |
2 |
|
100254N200M |
CSLCN010Q |
10 |
2 |
90 |
25 |
10 |
4 |
14 |
2 |
|
100254N150M |
CSLCN010O |
10 |
1.5 |
90 |
25 |
10 |
4 |
14 |
2 |
|
100254N100M |
CSLCN010M |
10 |
1 |
90 |
25 |
10 |
4 |
14 |
2 |
|
100254N050M |
CSLCN010G |
10 |
0.5 |
90 |
25 |
10 |
4 |
14 |
2 |
|
120304N200M |
CSLCN012Q |
12 |
2 |
100 |
30 |
12 |
4 |
17 |
2 |
|
120304N150M |
CSLCN012O |
12 |
1.5 |
100 |
30 |
12 |
4 |
17 |
2 |
|
120304N100M |
CSLCN012M |
12 |
1 |
100 |
30 |
12 |
4 |
17 |
2 |
|
160404N250M |
CSLCN016R |
16 |
2.5 |
110 |
40 |
16 |
4 |
23 |
2 |
|
160404N200M |
CSLCN016Q |
16 |
2 |
110 |
40 |
16 |
4 |
23 |
2 |
|
160404N150M |
CSLCN016O |
16 |
1.5 |
110 |
40 |
16 |
4 |
23 |
2 |
|
200505N300M |
CSLCN020S |
20 |
3 |
140 |
50 |
20 |
5 |
28 |
2 |
|
200505N200M |
CSLCN020Q |
20 |
2 |
140 |
50 |
20 |
5 |
28 |
2 |
|
200505N150M |
CSLCN020O |
20 |
1.5 |
140 |
50 |
20 |
5 |
28 |
2 |
