MC-CSLC (PT Threads) | Carbide Thread Mills for Taper Pipe Threads | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 12,379.44
พร้อมส่ง
SKU
MC-CSLC (PT Threads)
- MC-CSLC is the tool cutting threads by using helical interpolating process. One MC-CSLC can produce external and internal threads of different diameter, and both right hand threads and left hand threads, as far as the thread pitch is same.
Specification
Tapping Speeds depending on Materials
Segment：1L
|

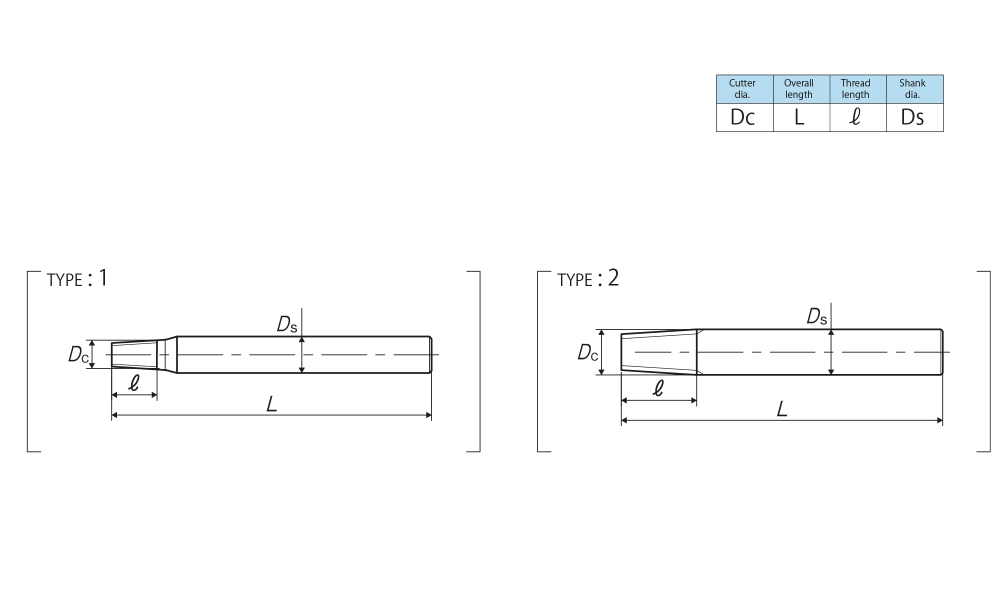

Tool No. |
Code |
Cutter diameter Dc (mm) |
Number of threads |
L (mm) |
ℓ (mm) |
Ds (mm) |
No. of flutes |
Processable thread size |
TYPE |
|
For PF Threads |
|||||||||
|
065103X28G |
CSLCX6.5KG |
6.5 |
28 |
70 |
10 |
8 |
3 |
1/8 |
1 |
|
080153X19G |
CSLCX8.0-G |
8 |
19 |
70 |
15 |
8 |
3 |
1/4・3/8 |
2 |
|
120204X14G |
CSLCX012QG |
12 |
14 |
80 |
20 |
12 |
4 |
1/2・3/4 |
2 |
|
160264X11G |
CSLCX016UG |
16 |
11 |
90 |
26 |
16 |
4 |
1～ |
2 |
|
200305X11G |
CSLCX020UG |
20 |
11 |
110 |
30 |
20 |
5 |
1～ |
2 |
・For the details of how to use thread mills, please refer to Technical information P.72 to P.78.
