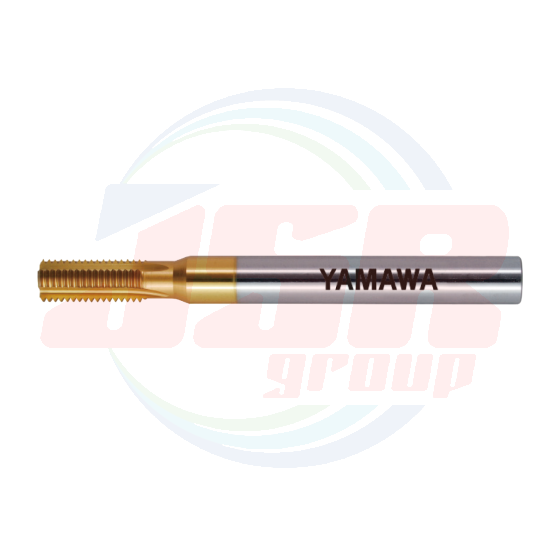

MC-HLC (Metric Threads)
- MC-HLC is the tool cutting threads by using helical interpolating process. One MC-HLC can produce internal threads of different diameter, both right hand threads and left hand threads, as far as the thread pitch is same.
Specification
Tapping Speeds depending on Materials
Segment：57
|

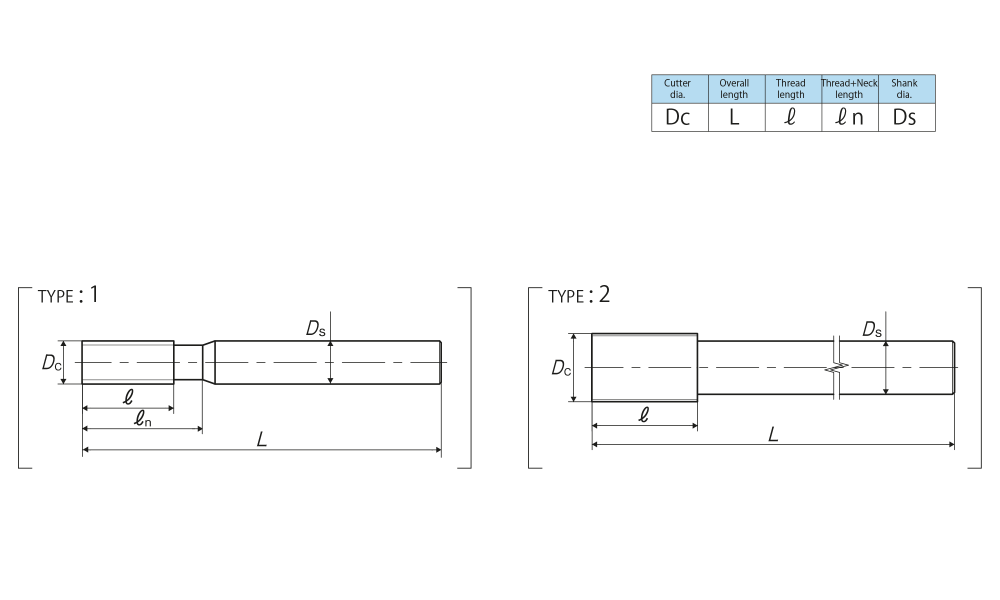

Tool No. |
Code |
Cutter diameter Dc (mm) |
Pitch (mm) |
L (mm) |
ℓ (mm) |
ℓn (mm) |
Ds (mm) |
No. of flutes |
Min.size |
TYPE |
|
For Metric Threads |
||||||||||
|
10204N150M |
HLCN010O |
10 |
1.5 |
90 |
20 |
27 |
10 |
4 |
14 |
1 |
|
10204N100M |
HLCN010M |
10 |
1 |
90 |
20 |
27 |
10 |
4 |
14 |
1 |
|
12254N200M |
HLCN012Q |
12 |
2 |
100 |
25 |
33 |
12 |
4 |
17 |
1 |
|
12254N150M |
HLCN012O |
12 |
1.5 |
100 |
25 |
33 |
12 |
4 |
17 |
1 |
|
12254N100M |
HLCN012M |
12 |
1 |
100 |
25 |
33 |
12 |
4 |
17 |
1 |
|
16304N250M |
HLCN016R |
16 |
2.5 |
110 |
30 |
42 |
16 |
4 |
23 |
1 |
|
16304N200M |
HLCN016Q |
16 |
2 |
110 |
30 |
42 |
16 |
4 |
23 |
1 |
|
16304N150M |
HLCN016O |
16 |
1.5 |
110 |
30 |
42 |
16 |
4 |
23 |
1 |
|
16304N100M |
HLCN016M |
16 |
1 |
110 |
30 |
42 |
16 |
4 |
23 |
1 |
|
20505N350M |
HLCN020T |
20 |
3.5 |
140 |
50 |
64 |
20 |
5 |
28 |
1 |
|
20505N300M |
HLCN020S |
20 |
3 |
140 |
50 |
64 |
20 |
5 |
28 |
1 |
|
20505N200M |
HLCN020Q |
20 |
2 |
140 |
50 |
64 |
20 |
5 |
28 |
1 |
|
20505N150M |
HLCN020O |
20 |
1.5 |
140 |
50 |
64 |
20 |
5 |
28 |
1 |
|
20505N100M |
HLCN020M |
20 |
1 |
140 |
50 |
64 |
20 |
5 |
28 |
1 |
|
25506N350M |
HLCN025T |
25 |
3.5 |
160 |
50 |
- |
20 |
6 |
36 |
2 |
|
25506N300M |
HLCN025S |
25 |
3 |
160 |
50 |
- |
20 |
6 |
36 |
2 |
|
25506N200M |
HLCN025Q |
25 |
2 |
160 |
50 |
- |
20 |
6 |
36 |
2 |
|
25506N150M |
HLCN025O |
25 |
1.5 |
160 |
50 |
- |
20 |
6 |
36 |
2 |
|
25506N100M |
HLCN025M |
25 |
1 |
160 |
50 |
- |
20 |
6 |
36 |
2 |
|
32506N300M |
HLCN032S |
32 |
3 |
200 |
50 |
- |
25 |
6 |
45 |
2 |
|
32506N200M |
HLCN032Q |
32 |
2 |
200 |
50 |
- |
25 |
6 |
45 |
2 |
|
32506N150M |
HLCN032O |
32 |
1.5 |
200 |
50 |
- |
25 |
6 |
45 |
2 |
・For the details of how to use thread mills, please refer to Technical information P.72 to P.78.
