MC-HLC (PF Threads) | Thread Mills for Parallel Pipe Threads | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 6,743.93
พร้อมส่ง
SKU
MC-HLC (PF Threads)

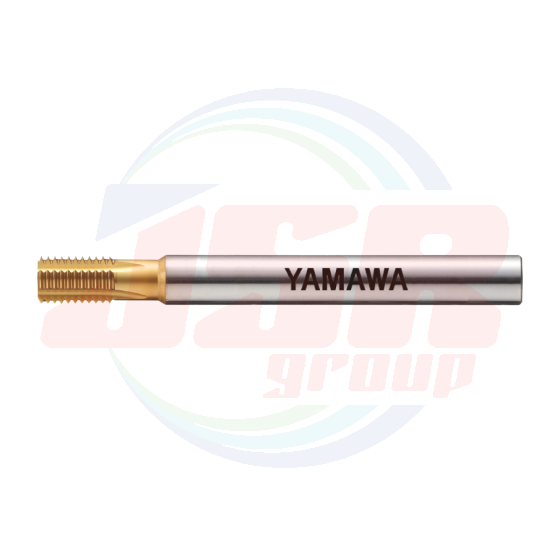

- MC-HLC is the tool cutting threads by using helical interpolating process. One MC-HLC can produce external and internal threads of different diameter, and both right hand threads and left hand threads, as far as the thread pitch is same.
Specification
Tapping Speeds depending on Materials
Segment：57
|

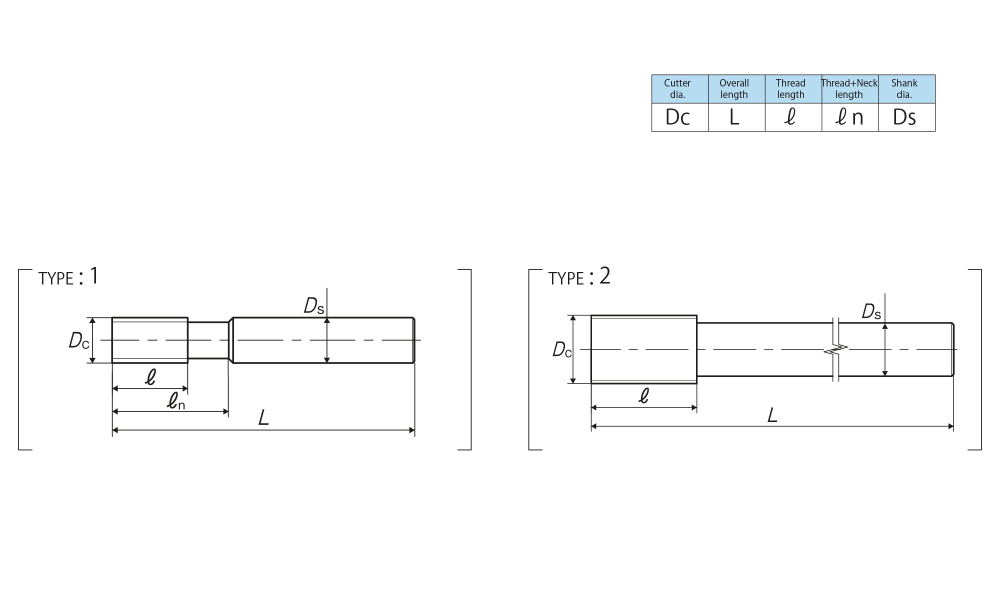

Tool No. |
Code |
Cutter diameter Dc (mm) |
Number of threads |
L (mm) |
ℓ (mm) |
ℓn (mm) |
Ds (mm) |
No. of flutes |
Processable thread size |
TYPE |
|
For PF Threads |
||||||||||
|
10154X19G |
HLCX010-G |
10 |
19 |
70 |
15 |
24 |
10 |
4 |
3/8 |
1 |
|
12204X14G |
HLCX012QG |
12 |
14 |
80 |
20 |
30 |
12 |
4 |
1/2・3/4 |
1 |
|
20305X11G |
HLCX020UG |
20 |
11 |
100 |
30 |
48 |
20 |
5 |
1～2 |
1 |
|
32506X11G |
HLCX032UG |
32 |
11 |
200 |
50 |
- |
25 |
6 |
2 1/2～6 |
2 |
・For the details of how to use thread mills, please refer to Technical information P.72 to P.78.
