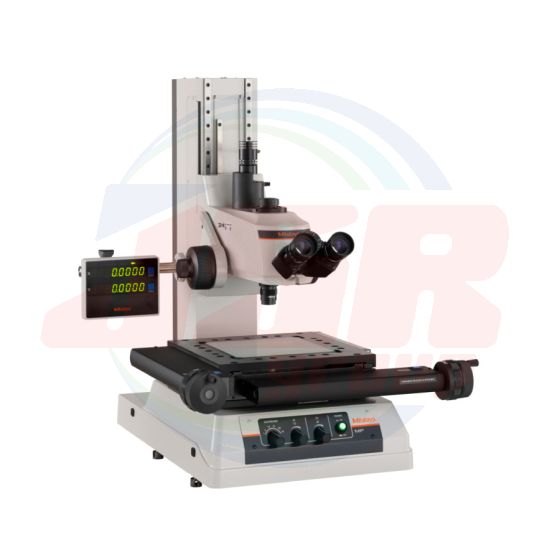

MF Series
Measuring Microscope
MF Series
Standard model, easy-to-use measuring microscope equipped with a long working distance ML objective lens
Measuring accuracy (X Y): (2.2 + 0.02L) μm
(L: Measuring length in mm)
Observation image: Bright-field
SPECIFICATIONS
| Main unit | 1010 | 2010 | 2017 | 3017 | 4020 | |
| Without Z-axis scale | MF-A1010D | MF-A2010D | MF-A2017D | MF-A3017D | MF-A4020D | |
| 176-961* | 176-962* | 176-963* | 176-964* | 176-965* | ||
| With Z-axis scale | MF-B1010D | MF-B2010D | MF-B2017D | MF-B3017D | MF-B4020D | |
| 176-966* | 176-967* | 176-968* | 176-969* | 176-970* | ||
| Measuring accuracy*1 (20 °C, when not loaded) |
(2.2+0.02L) μm L: measuring length (mm) | |||||
| Minimum reading | High accuracy digital scale is mounted 1/0.5/0.1 μm switchable |
|||||
| Observation | Optical tube | Monocular or binocular TV camera port for all models (observation/TV camera = 50/50)*4 is provided as standard Reticle (broken cross-hair, line width: 5 μm) is provided as standard Various reticles are optional. |
||||
| Incline angle | Angle of column: 25° | |||||
| Observation image | Erect image | |||||
| Observation method | Bright-field observation | |||||
| Eyepiece | 10X (eyepiece field number: 24) is provided as standard 15X, 20X, Angle eyepieces 10X, Digital angle eyepieces 10X are optional. |
|||||
| Objective | 3X (working distance: 77 mm) is provided as standard 1X, 5X, 20X, 50X, 100X, a pair of sliding nosepieces*5 are optional. |
|||||
| Stage | Measuring range | 100×100 mm | 200×100 mm | 200×170 mm | 300×170 mm | 400×200 mm |
| Max. table loading | 10 kg | 20 kg | 15 kg | |||
| Feed mechanism | Manual and Quick-release mechanism (zero-set switch is incorporated) | |||||
| Swiveling angle | － | ±5° | ±3° | |||
| Internal light source*2 |
LED Illumination Unit | White LED (transmitted/vertical reflected), no step modulated light | ||||
| Halogen Illumination Unit | 12 V, 50 W halogen (transmitted/vertical reflected), no step modulated light | |||||
| External light source | Ring light and dual swan-neck light pipe are optional. | |||||
| Z axis | Feed mechanism | Coaxial coarse and fine feed, handles on both sides (coarse: 30 mm/rotation, fine: 0.2 mm/rotation) |
||||
| Max. workpiece height | 150 mm | 220 mm | ||||

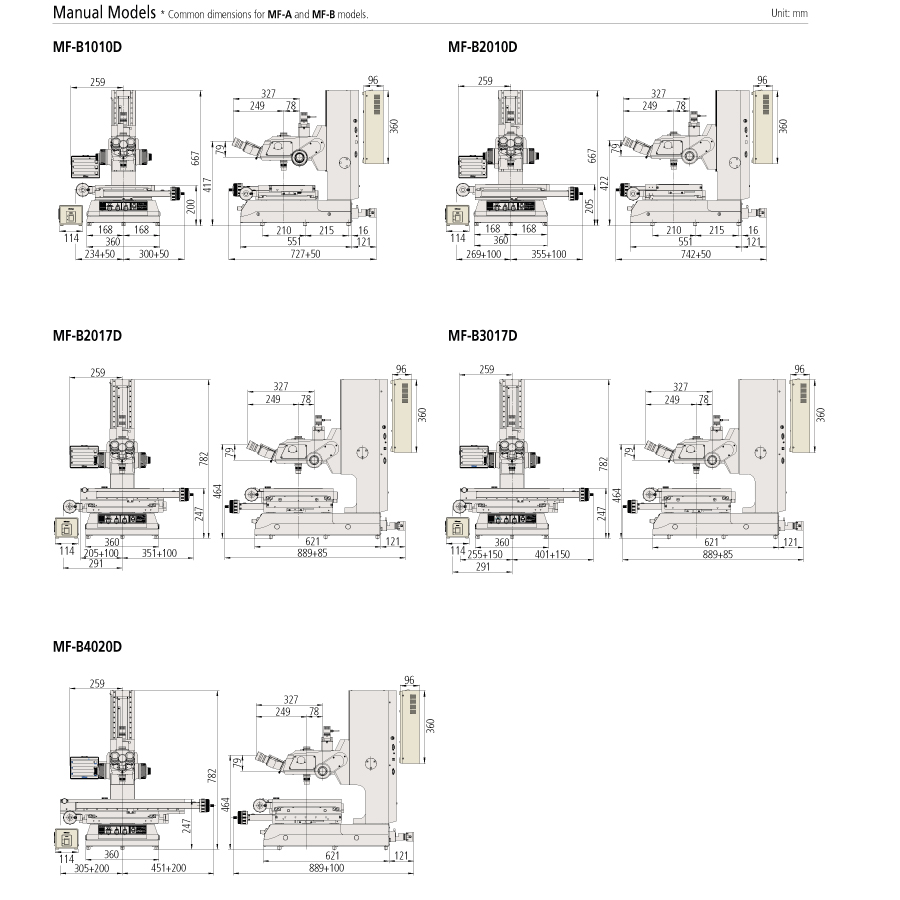

| Dimensions (W×D×H) |
Main unit | 562×730×667 mm | 624×745×667 mm | 642×892×782 mm | 692×892×782 mm | 756×892×782 mm |
| Control unit | － | |||||
| Control unit for illumination unit | 114×360×96 mm | |||||
| Output | RS-232C output, USB output for Vision Unit | |||||
| Mass | Approx. 70 kg | Approx. 75 kg | Approx. 150 kg | Approx. 160 kg | Approx. 165 kg | |
| Max. power consumption*3 | LED: 45 W Halogen: 160 W AC power input connector: 100 to 240 V |
|||||
* Add "-11" for mm models and "-13" for mm/inch models to the end of the code number.
*1 Required optional accessory
*2 Inspected in conformance with JIS B 7153
*3 When the main unit and the required optional light source are used (For motor-driven z-axis model, the contour unit is included.)
*4 C mount is required separately
*5 A pair of Sliding Nosepieces are factory-installed option.
