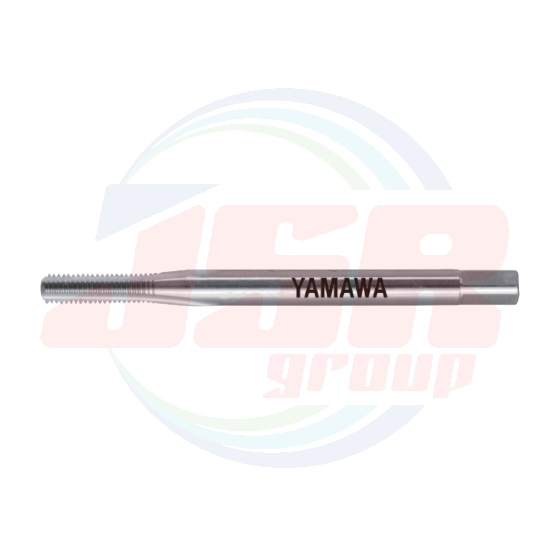

Product Features
Tapping Data
Tapping Conditions [M2.5×0.45]
Part Name |
PC parts |
Workpiece Material |
Magnesium alloy |
Bored Hole Shape |
Blind hole |
Bored Hole Length |
4.5mm |
Tapping Length |
4.0mm |
Machinery Type |
CNC tapping machine |
Processing Direction |
Vertical machining |
Feed |
Synchronous feed |
Tapping Speed |
20m/min |
Cutting Fluid |
Water soluble cutting fluid |
Number of Holes Processed |
10,000 holes |
Tapping Conditions [M2×0.4]
Part Name |
PC parts |
Workpiece Material |
Magnesium alloy |
Bored Hole Shape |
Blind hole |
Bored Hole Length |
3.0mm |
Tapping Length |
2.5mm |
Machinery Type |
CNC tapping machine |
Processing Direction |
Vertical machining |
Feed |
Synchronous feed |
Tapping Speed |
15m/min |
Cutting fluid |
Water soluble cutting fluid |
Number of Holes Processed |
10,000 holes |

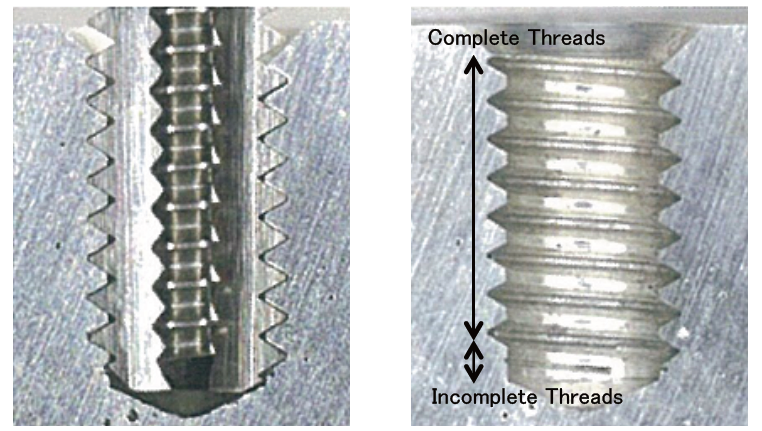

Internal thread situation
Specification
Tapping Speeds depending on Materials
Segment:1A

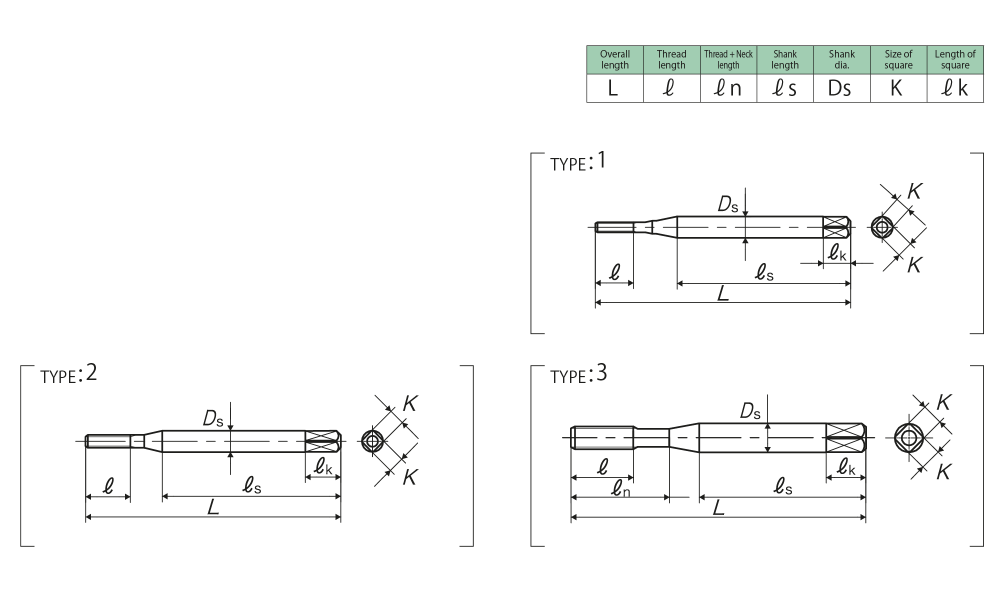

Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
For Metric Threads |
||||||||||||
M1.4×0.3 |
P2 |
TMGMQ1.4C1 |
1P |
36 |
5.4 |
- |
24 |
3 |
2.5 |
5 |
3 |
1 |
M1.6×0.35 |
P2 |
TMGMQ1.6D1 |
1P |
36 |
6.3 |
- |
24 |
3 |
2.5 |
5 |
3 |
2 |
M1.7×0.35 |
P2 |
TMGMQ1.7D1 |
1P |
36 |
6.3 |
- |
24 |
3 |
2.5 |
5 |
3 |
2 |
M2×0.4 |
P2 |
TMGMQ2.0E1 |
1P |
42 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
3 |
3 |
M2.5×0.45 |
P2 |
TMGMQ2.5F1 |
1P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
3 |
3 |
M2.6×0.45 |
P2 |
TMGMQ2.6F1 |
1P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
3 |
3 |
M3×0.5 |
P2 |
TMGMQ3.0G1 |
1P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
3 |
แบรนด์สินค้า | YAMAWA |
---|
